Quick Details
-
Core Components:
-
Laser source
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MACTRON
-
Weight (KG):
-
245 KG
-
Gross Power::
-
0.5kwH
-
Laser Power range::
-
10-100% adjustable
-
Wavelength::
-
1070nm
-
Working distance::
-
250±20mm
-
Marking Speed::
-
20000mm/s
-
Maximum Marking Line::
-
150mm
-
Head Weight::
-
Standard head:1.8kg, Anti-shake head:2.0kg
-
Keywords:
-
Laser Cleaning Metal Machine
-
Application:
-
metal
-
Cooling method:
-
water cooling
Quick Details
-
Power:
-
500W
-
Laser Type:
-
YAG
-
Laser Source Brand:
-
JPT(Optional)
-
Core Components:
-
Laser source
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MACTRON
-
Weight (KG):
-
245 KG
-
Gross Power::
-
0.5kwH
-
Laser Power range::
-
10-100% adjustable
-
Wavelength::
-
1070nm
-
Working distance::
-
250±20mm
-
Marking Speed::
-
20000mm/s
-
Maximum Marking Line::
-
150mm
-
Head Weight::
-
Standard head:1.8kg, Anti-shake head:2.0kg
-
Keywords:
-
Laser Cleaning Metal Machine
-
Application:
-
metal
-
Cooling method:
-
water cooling

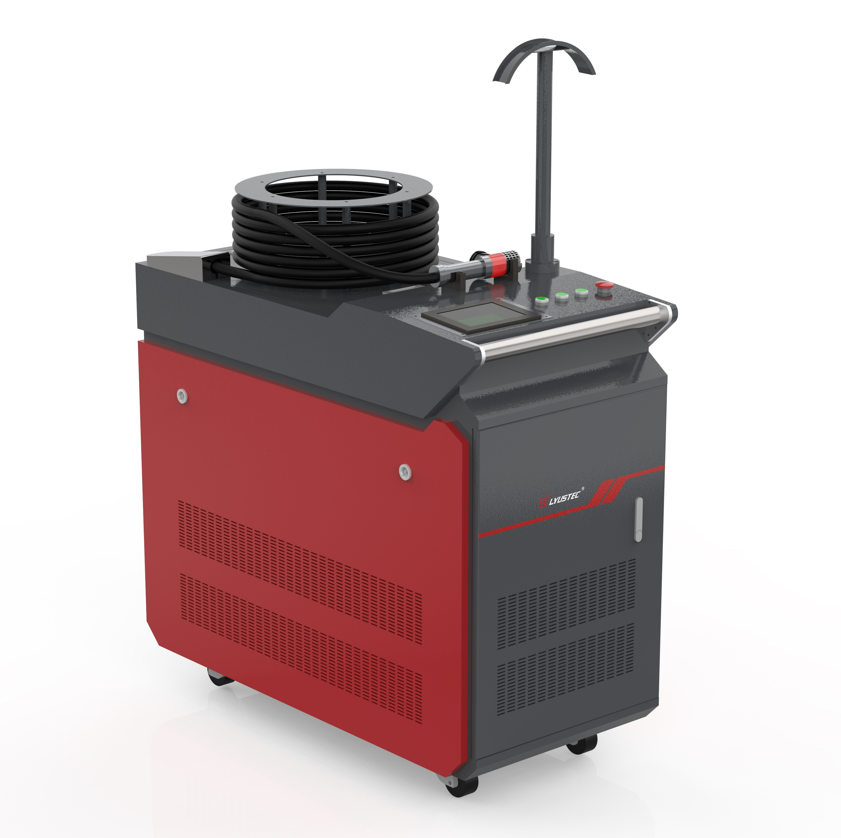

MT series laser cleaning machine has advanced technology, humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with a certain degree of practicality and operability. The customer can preset the cleaning mode through the software, and can directly switch the node for operation without adjusting the parameters, and start the cleaning without chemical reagent medium, dust and water. Through auto focusing , surface fitting cleaning , removing resin, stain, rust, coating, paint, etc, the cleaning is high.
| Model | MT-CL300-H | MT-CL500-H | MT-CL1000-H |
| Laser Power | 300W | 500W | 1000W |
| Laser Type | Pulsed | ||
| Wavelength | 1064nm | ||
| Scan Line Speed | <20m/s | ||
| Cleaning Width |
Single Axis: 0-120mm (Adjustable)
Dual Axis: >100mm (Six Cleaning Modes) |
||
| Armor Cable Length | 5M | 10M | |
| Frequency Range | 1-1000KHz | 10-400KHz/2-50KHz | 2-50KHz |
| Beam Quality | <30m2 | <70m2~27m2 | N/A |
| Cleaning Head Weight | <1.2Kg(No Isolator ) | <1.5Kg(No Isolator ) | |
| Pulse Width | 80-500ns | 50-500ns/100ns | 20-100ns |
| Equipment Size | 120x60x110cm | ||
| Net weight | 245KG | ||
| Single Pulse Energy | 13mJ | 30mJ/50mJ | 100mJ |
| cooling method | Water Cooling | ||
| Voltage | AC 110/220V, 50/60Hz, 40A | ||
| Cleaning efficiency comparison | |||
| Paint(120um) | 0.65m2/h | 1.3m2/h | 3m2/h |
| Rust (100μm) | 1.25m2/h | 1.5m2/h | 6.5m2/h |
Applicable Industry:
The machine has wide range of applications and is highly targeted. It is suitable for metal mold removal, stripping or removing coating, pre-treatment before parts coating, cleaning of aviation parts, restoration and preservation of historical relics.
