Quick Details
-
Brand Name:
-
shenghao
-
After-sales Service Provided:
-
None
-
Dimensions (L x W x H) (mm):
-
8995x2500x3450(mm)
-
Place of Origin:
-
China
-
Product name:
-

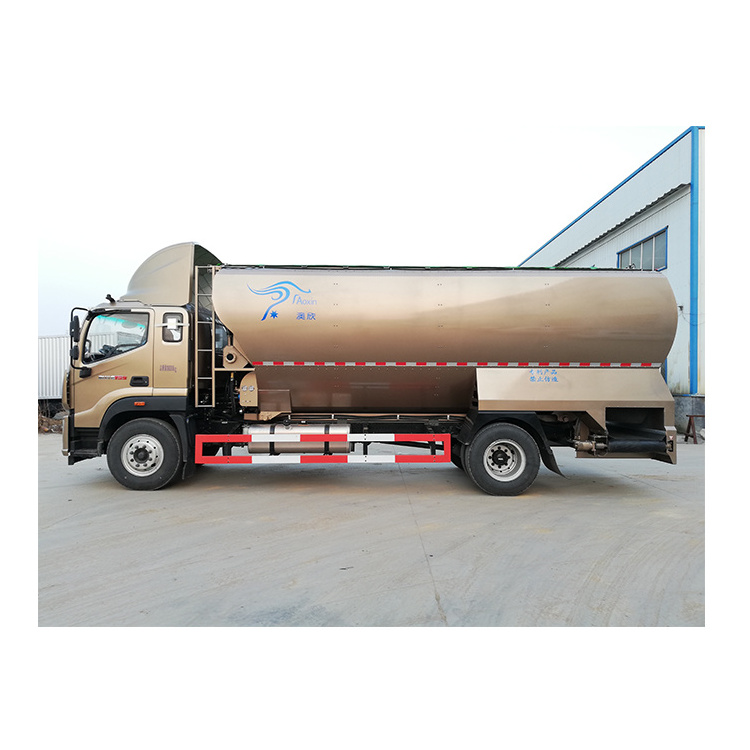

bulk feed delivery truck
-
Total mass (kg):
-
16000
-
Rated load mass (kg):
-
5900,5835
-
Overall dimension (mm):
-
8995x2500x3450
-
Curb weight (kg):
-
9970
-
Approach angle / departure angle (°):
-
18/11
-
Front suspension / rear suspension (mm):
-
1270/2575
-
Axle load (kg):
-
5600/10400
-
Maximum speed (km / h):
-
105,89
-
Chassis Model:
-
BJ1166VJPFK-1A
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
16000
-
Brand Name:
-
shenghao
-
After-sales Service Provided:
-
None
-
Dimensions (L x W x H) (mm):
-
8995x2500x3450(mm)
-
Place of Origin:
-
China
-
Product name:
-
bulk feed delivery truck
-
Total mass (kg):
-
16000
-
Rated load mass (kg):
-
5900,5835
-
Overall dimension (mm):
-
8995x2500x3450
-
Curb weight (kg):
-
9970
-
Approach angle / departure angle (°):
-
18/11
-
Front suspension / rear suspension (mm):
-
1270/2575
-
Axle load (kg):
-
5600/10400
-
Maximum speed (km / h):
-
105,89
-
Chassis Model:
-
BJ1166VJPFK-1A
Product Description
Specification
|
Technical parameters of complete vehicle
|
|
|
|
|||
|
Product trademark
|
|
Announcement batch
|
|
|||
|
Product name
|
bulk feed delivery truck
|
Product model
|
|
|||
|
Total mass (kg)
|
16000
|
Tank volume (M3)
|
|
|||
|
Rated load mass (kg)
|
5900,5835
|
Overall dimension (mm)
|
8995x2500x3450
|
|||
|
Curb weight (kg)
|
9970
|
Cargo compartment size (mm)
|
xx
|
|||
|
Rated passenger capacity (person)
|
|
Total mass of quasi Trailer (kg)
|
|
|||
|
Approach angle / departure angle (°)
|
18/11
|
Front suspension / rear suspension (mm)
|
1270/2575
|
|||
|
Axle load (kg)
|
5600/10400
|
Maximum speed (km / h)
|
105,89
|
|||
|
Notes
|
Unloading mode Chain drive unloading. Corresponding relationship of ABS system model/manufacturer :ABS-E/ WBCO Automotive Control System (China) Co., LTD.,CM4XL-4S/4M/ Guangzhou Ruilicomie Automotive Electronics Co., LTD.,3550D-1010/ East Cocknorr Commercial Vehicle Brake System (Shiyan) Co., LTD. Optional speed limiting device, speed limit 89km/h. Install driving recorder with satellite positioning function in accordance with the regulations. The material of side protection device is Q235A, and the connection mode is bolt connection; The rear lower protection device is welded into one body with the feed bin, and then bolted to the chassis frame. The section size of the rear protection device is 120*50, the material is Q235A, and the height of the rear protection from the ground is 500mm. The fuel consumption of F3.8NS6B190 engine is 24.0L/100km, and that of F4.5NS6B220 engine is
24.0L/100km : 24.0 L / 100 km. |
|
|
|||
|
Chassis technical parameters
|
|
|
|
|||
|
Chassis Model
|
BJ1166VJPFK-1A
|
Chassis brand
|
Foton
|
|||
|
manufacturing enterprise
|
Foton
|
Production address
|
Zhucheng Economic Development Zone, Shandong Province
|
|||
|
Number of axes
|
2
|
Number of tires
|
6
|
|||
|
wheelbase
|
5150
|
|
|
|||
|
Tire specification
|
9.00R20 16PR,10R22.5 16PR,10.00R20 18PR,11R22.5 18PR,275/80R22.5
|
|
|
|||
|
Number of leaf springs
|
3/4+3,10/10+8
|
|
|
|||
|
Front track width (mm)
|
1955,1922
|
Rear track width (mm)
|
1800
|
|||
|
Fuel type
|
diesel oil
|
Emission basis standard
|
GB3847-2005,GB17691-2018 national VI
|
|||
|
Engine model
|
Engine manufacturer
|
Displacement (ML)
|
Power (kw)
|
|||
|
F3.8NS6B190
F4.5NS6B220 |
Beijing Futian Cummins Engine Co., Ltd
Beijing Futian Cummins Engine Co., Ltd |
3800
4500 |
140
162 |
|||
