Quick Details
-
Brand Name:
-
CARATAR
-
Model Number:
-
GYD-TTL306
-
Place of Origin:
-
Guangdong, China
-
color:
-
Black or customized
-
Chipset:
-
FTDI FT232RL
-
Length:
-
6ft or optional
-
Connectivity::
-
3.3v or 5v
-
Cable warranty:
-
1 year
-
OD:
-
5.0MM
-
Product name:
-
usb ttl progamming cable
-
Keywords:
-
ttl to usb cable
-
Item:
-
ttl to usb converter
Quick Details
-
USB Type:
-
Standard
-
Material:
-
TPE, ABS, Plastic, Metal
-
Connector:
-
USB 2.0 Connector, Nickel Plated, USB 3.0 Connector, micro, For Iphone
-
Brand Name:
-
CARATAR
-
Model Number:
-
GYD-TTL306
-
Place of Origin:
-
Guangdong, China
-
color:
-
Black or customized
-
Chipset:
-
FTDI FT232RL
-
Length:
-
6ft or optional
-
Connectivity::
-
3.3v or 5v
-
Cable warranty:
-
1 year
-
OD:
-
5.0MM
-
Product name:
-
usb ttl progamming cable
-
Keywords:
-
ttl to usb cable
-
Item:
-
ttl to usb converter
programmer FTDI Basic 5V USB to TTL burning device Basic 5V USB to TTL serial debugger program program uploads
Product Pictures
GuoYunDa>
Product Information
GuoYunDa>
Product Description
6 pin ftdi ft232rl usb to serial adapter module ttl rs232 cable for arduino
| Type | USB to Serial TTL Cable (OEM FTDI Cable) |
| Connector 1 |
USB C Male or USB-A Male
|
| Connector 2 | 6Pin connector,6 open wires,DC3.5MM Plug optional |
| Chipset Used | FT232/CP2102/PL2303 optional |
| Cable | 3 core, 4 core, 6 core available |
| Pinout | VCC, TXD, RTS, RXD, CTS, GND |
| Support | WINDOWS7/8/98/ME/2000/XP,Vista32 , Mac8.6 or later , LINUX O.S,etc |
More Part Number if you need too , you can refe below list and discuss with our sales on line please , thanks
| Part Number | Description | Cable Details | Link to Datasheet |

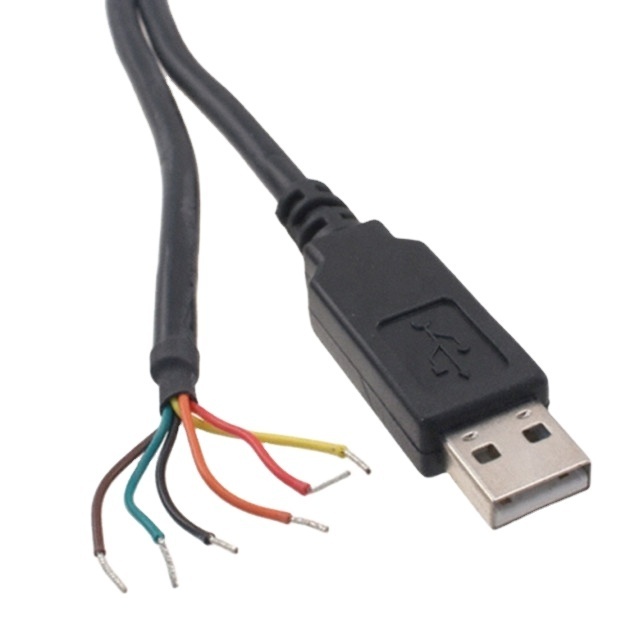

| TTL UART cables supporting range of voltage I/O levels with wire-ended output | TTL-232RG-VSW3V3-WE | Supports +3.3V based TTL level UART signals and +3.3V / 50mA power output. | Wire ended 6 core, 5mm UL2464 24 AWG output |
| TTL-232RG-VSW5V-WE | Supports +5V based TTL level UART signals and +5V / 450mA power output | ||
| TTL-232RG-VREG3V3-WE | Supports +3.3V based TTL level UART signals and +3.3V / 250mA rated power output. | ||
| TTL-232RG-VREG1V8-WE | Supports +1.8V TTL level UART signals and +1.8V / 100mA rated power output. | ||
| TTL-232RG-VIP-WE | Cable features voltage reference input for setting UART signalling levels. | ||
| TTL-232R-3V3-WE | Version 1 cable. Supports +3.3V UART signalling and +5V/75mA power output. | ||
| TTL-232R-5V-WE | Version 1 cable. Supports +5V based UART signalling and +5V/75mA based power output. | ||
| Connector based cables | TTL-232R-3V3 | USB cable with 6 way 0.1" pitch single inline connector with +3.3V signalling. | 6 way, 0.1" pitch single inline connector |
| TTL-232R-5V | USB cable with 6 way 0.1" pitch single inline connector with +5.0V signalling. | ||
| TTL-232R-3V3-2mm | USB cable with +3.3V based UART output on 2mm connector. | 8-pin, keyed 2mm pitch connector | |
| Designed for use with FTDI VDRIVE2 and VMUSIC2 modules. | |||
| TTL-232R-3V3-AJ | Cable with audio jack connector with +3.3V based TX, and RX signalling. | 3.5mm audio jack output. Connector configuration: tip - TX, ring - RX, sleeve - GND | |
| TTL-232R-5V-AJ | Cable with audio jack connector with +5V based TX and RX signalling. | ||
| PCB assemblies | TTL-232R-3V3-PCB | PCB only. Supports +3.3V UART signalling and +5V/75mA power output. | No cable – USB connector with PCB only |
| TTL-232R-5V-PCB | PCB only. Supports +5V UART signalling and +5V/75mA power output. |
F
EATURE
1.TTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.
2.On board FT232RL/FT232RQ provides single chip USB to asynchronous serial data transfer interface.
3.Entire USB protocol handled by the electronics in the cable USB.
4.Connect directly to a microcontroller UART or I/O pins.
-
5. 5V CMOS drive outputs and 5V safe TTL inputs makes the TTL-232R easy to interface to 5V MCU''s.
6. +5V or +3.3V output allows external logic to be powered from the USB port.
7.6 way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND (except Audio Jack which provides only TX,RX and GND).
8.3 way Audio Jack connector provides Tx, Rx and GND.
