Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SETN
-
Model Number:
-
XGN88-12
-
Material:
-
steel, Stainless Steel
-
Rated Voltage:
-
12KV
-
Rated current:
-
630-1250A
-
Rated frequency:
-
50/60 Hz
-
Certificate:
-
CE ISO CCC IEC
-
Product Name:
-
Medium Voltage Switchgear
-
Application:
-
Electric Power Transmission
-
Type:
-
Distribution Box Electrical Boxes
-
Color:
-
Customer Request, silvery
-
MOQ:
-
1
Quick Details
-
Voltage:
-
12
-
Current:
-
630, 1250
-
Size:
-
650, 1200, 2300
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SETN
-
Model Number:
-
XGN88-12
-
Material:
-
steel, Stainless Steel
-
Rated Voltage:
-
12KV
-
Rated current:
-
630-1250A
-
Rated frequency:
-
50/60 Hz
-
Certificate:
-
CE ISO CCC IEC
-
Product Name:
-
Medium Voltage Switchgear
-
Application:
-
Electric Power Transmission
-
Type:
-
Distribution Box Electrical Boxes
-
Color:
-
Customer Request, silvery
-
MOQ:
-
1
Product Description

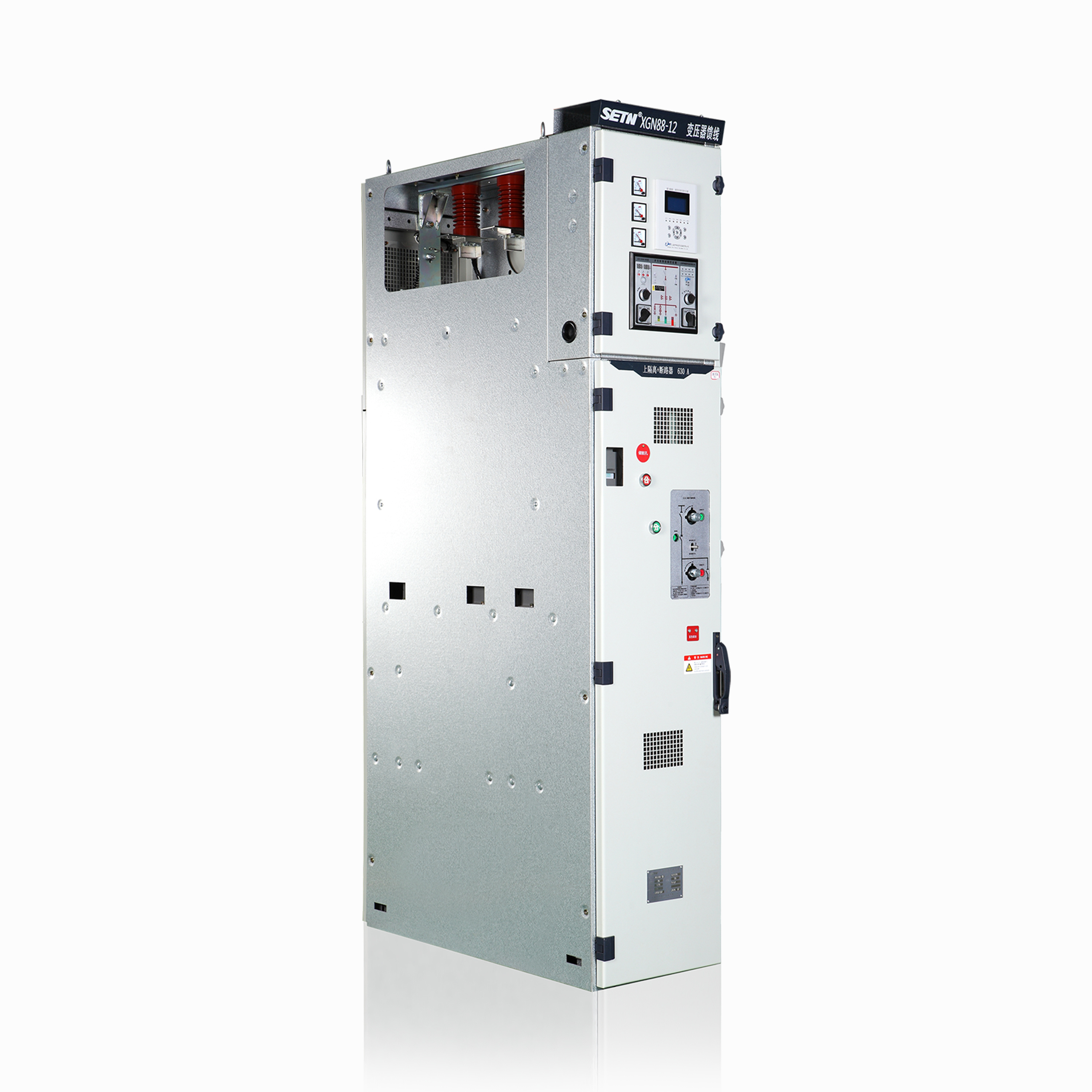

XGN88-12 Fixed metal closed switch
This product is independently developed by our company Set intelligent, environmentally friendly, compact structure as one
XGN88-12 Fixed metal closed switch
This product is independently developed by our company Set intelligent, environmentally friendly, compact structure as one
|
Main technical parameters
|
|
|
|
|||
|
Rated voltage
|
..................
|
kV
|
12
|
|||
|
Rated frequency
|
..................
|
Hz
|
50
|
|||
|
Rated current
|
..................
|
A
|
630 1250
|
|||
|
Rated short-time withstand current (4s)
|
..................
|
...
|
20 25 31.5
|
|||
|
Rated peak withstand current (peak)
|
..................
|
...
|
50 63 80
|
|||
|
Rated short-circuit breaking current
|
..................
|
kA
|
20 25 31.5
|
|||
|
Rated short-circuit making current (peak)
|
.................
|
...
|
50 63 80
|
|||
|
|
Power frequency withstand voltage (phase-to-phase, phase-to-ground/between open contacts)
|
kV
|
42/48
|
|||
|
|
Impulse withstand voltage (phase-to-phase, phase-to-ground/between open contacts)
|
|
75/85
|
|||
|
Rated operating sequence
|
..................
|
...
|
O-0.3s-CO-180s-CO
|
|||
|
Rated short-circuit breaking current breaking times
|
..................
|
...
|
50
|
|||
|
Mechanical life peroid
|
..................
|
time
|
10000
|
|||
|
IP code
|
..................
|
time
|
IP3X
|
|||
Service conditions
◎ Altitude: ≤1000M
◎Ambient air temperature: -25°C~40°C;
◎Relative air humidity: Daily mean «95%; Monthly mean ≤90%
◎The ambient air should be free from obvious pollution of harmful gases;
◎No obvious vibration; seismic intensity should not beyond Ms8.
Our Delivery
We can deliver the goods by air or sea. We can provide you with a good shipping company to facilitate your choice Our delivery date is usually 15 to 20 days. If you need special customization, the time may be delayed.
Standard wooden boxes for outer package
(1) 1 plastic bag/set
(1) 1 plastic bag/set
If you need to specially customized package, please inform us in advance
Related products
company introduction
Certificate
FAQ
Q
1:What is your advantages?
A
: We are a very famous power distribution product manufacturer in Shanghai, China. We also have our own foreign trade team. We are a company integrating with industry and trade.
Q2:Can you customize the product according to the size I need?
A
: Yes, our factory has a professional team of engineers, we can completely design and develop products for you according to the detailed technical parameters and specifications you require
Q3:Can we use our own logo?
A : Yes, if you have any requirements, we can customize the logo that you need according to your requirements
A : Yes, if you have any requirements, we can customize the logo that you need according to your requirements
Q4: What is the quality of your products?
A : Quality is our culture, we regard product quality as core of our company. We have aquired a lot of certificates. As a factory, we can control all process of production 100% and every single product will be tested qualified before shipping.
A : Quality is our culture, we regard product quality as core of our company. We have aquired a lot of certificates. As a factory, we can control all process of production 100% and every single product will be tested qualified before shipping.
Q5: How long it will take from order to
delivery
?
A
: The delivery time is depended on the quantity you ordered, generally about 15-25 days after your payment.
Q6:What are your terms of payment
A : 30% in advance 70% before shipment We can pay by TT/ LC/ DP/ Paypal/ union/Alibaba assurance
A : 30% in advance 70% before shipment We can pay by TT/ LC/ DP/ Paypal/ union/Alibaba assurance
Q7: How long is the warranty service of your products?
A
: Our warranty period is usually three years. But the warranty period can be adjusted after discussion and agreement.
