Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
10KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3200*2150*1850mm
-
Power (kW):
-
11
-
Weight (KG):
-
1500
-
Product name:
-
2030 5 axis bridge cutting machine
-
Spindle:
-
10kw ATC spindle
-
color:
-
white (You can customize)
-
Working Area:
-
2000*3000mm
-
Blade Diameter:
-
350mm
-
Cutting thickness:
-
50mm
-
Control system:
-
Mach3
-
Platform flap angle:
-
0-85
-
Motor:
-
Servo / step
-
Software:
-
Artcam/Type3
Quick Details
-
Working Table Size(mm):
-
2000×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
10KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3200*2150*1850mm
-
Power (kW):
-
11
-
Weight (KG):
-
1500
-
Product name:
-
2030 5 axis bridge cutting machine
-
Spindle:
-
10kw ATC spindle
-
color:
-
white (You can customize)
-
Working Area:
-
2000*3000mm
-
Blade Diameter:
-
350mm
-
Cutting thickness:
-
50mm
-
Control system:
-
Mach3
-
Platform flap angle:
-
0-85
-
Motor:
-
Servo / step
-
Software:
-
Artcam/Type3

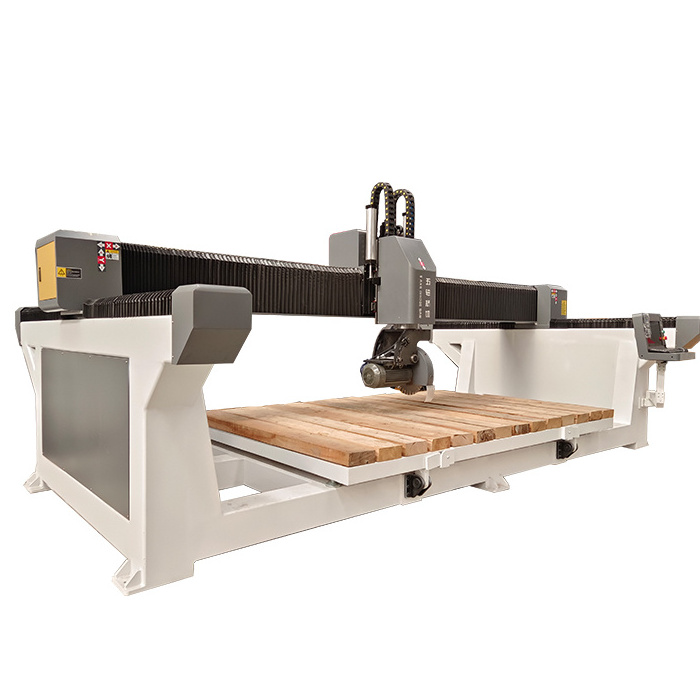

2023 china bridge saw granite stone cutting machine 5 axis granite bridge saw for sale craigslist 2030
Features of 5 Axis Bridge Cutting Machine
1.Working size:2000*3000mm working size
2.BETA inverter
3.Stepper motor
4.Stepper drivers
5.Heavy duty table for stone
6.Mach3 control system
7.10KW Host
8.X/Y/A axis gear rotation, Z-axis ball screw
9.0-360° Head rotation angle
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ
What’s the Technical data of Forsun 5 Axis Bridge Cutting Machine ?
|
Technical Data |
||
|
NO |
Description |
Parameter |
|
1 |
Processing size |
3000*2000mm |
|
2 |
Blade Diameter |
350mm |
|
3 |
Cutting thickness |
50 |
|
4 |
Control system |
Mach 3 |
|
5 |
Platform flap angle |
0-85 |
|
6 |
Head rotation angle |
0-360 |
|
7 |
Nose tilt angle |
0-45 |
|
8 |
host |
10kw |
|
9 |
Transmission mode |
x/y/a axis gear rotation, z-axis ball screw |
|
10 |
Driving mode |
Servo / step |
What's the advantage of 5 Axis Bridge Cutting Machine ?
1. The machine head can swing 360 degrees freely, and the plate can be cut at any angle and shape
2. It can be used for cutting large plate, 45 degree chamfering, pot hole, stove hole and oblique line cutting
3. The platform is turned over at 85 degrees to facilitate loading and unloading.
4. The operation is simple and the control system can input data.
5. Equipped with grinding wheel device, it can polish the table face and cutting surface.
What's the benefit of Forsun 5 Axis Bridge Cutting Machine?
Full automatic five axis infrared bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability. Used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
What's the package of Forsun 5 Axis Bridge Cutting Machine ?
What's our service for 5 Axis Bridge Cutting Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
FAQ
What do customer usually ask about 4 Axis CNC Wood Router Machine ?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
