1.The laboratory jaw crusher is designed for fast crushing of aggregates, ores, minerals, coal, coke, chemicals and other similar materials. It is compact and of rugged construction for general laboratory or small pilot plant operations.
2.Typical Applications: Rock/Stone/Coal/Minerals/Concrete/Asphalt
3.Features of our lab crusher:
economical
4.Save 50% or more with lower initial cost, plus enjoy lower operating and maintenance costs. Ideal for batch work, pilot facilities or small production runs.

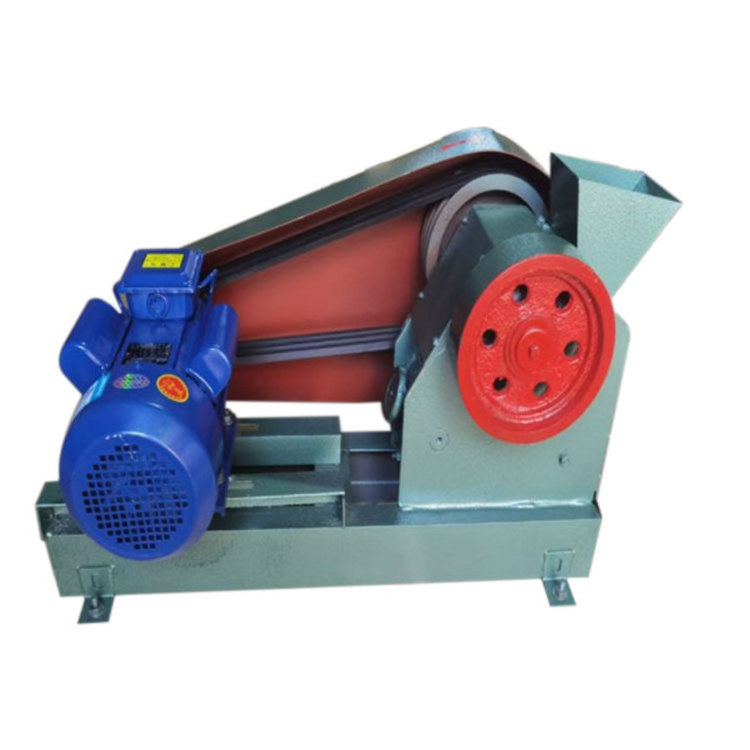

Name: Laboratory Jaw Crusher
Brand: WKD
Original: China
Processes almost any material to different consistencies, from coarse granules to ultra-fine powders. Can also be used to shred and de-fiberize many non-friable materials
.
EASY TO OPERATE
Simple operation, easy to maintain without special tools.
CONTAMINATION-FREE GRINDING
Corrosion- and abrasion-resistant construction, plus easy cleaning help prevent contamination.
|
Technical Parameters
|
|
|
|
|
|
|
||||||
|
Model
|
Max Feeding Size(mm)
|
Capacity
(kg/h)
|
Output Size(mm)
|
Power(kw)
|
Dimension
(mm)
|
Weight (kg)
|
||||||
|
PE100*60
|
≤50
|
230-400
|
6-10
|
1.5
|
950*470*520
|
110
|
||||||
|
PEF100*60
|
≤50
|
45-550
|
0.1-15.1
|
2.2
|
1100*450*780
|
182
|
||||||
|
PEF100*100
|
≤80
|
400-1800
|
3-25
|
3
|
1150*450*860
|
240
|
||||||
|
PEF125*100
|
≤80
|
400-1800
|
5-25
|
3
|
1150*450*860
|
240
|
||||||
|
PEF150*100
|
≤90
|
400-3000
|
6-38
|
3
|
1150*450*860
|
270
|
||||||
|
PEF150*125
|
≤100
|
500-3000
|
6-38
|
3
|
1150*450*860
|
270
|
||||||
1. Crushing chamber depth and had no dead zone, increasing the feed capacity and production;
2. The crushing ratio, uniform particle size;
3. Gasket-style nesting population adjustment device, reliable and convenient adjustment range, increase the flexibility of the device;
4. Lubrication system safe, reliable, easy to replace parts, equipment maintenance simple;
5. Structure is simple, reliable, low operating cost;
6. Equipment Energy: A Single-saving 15% ~ 30%, the system energy saving more than doubled;
7. I adjust the nesting range, can meet different user requirements;
