Quick Details
-
Product name:
-

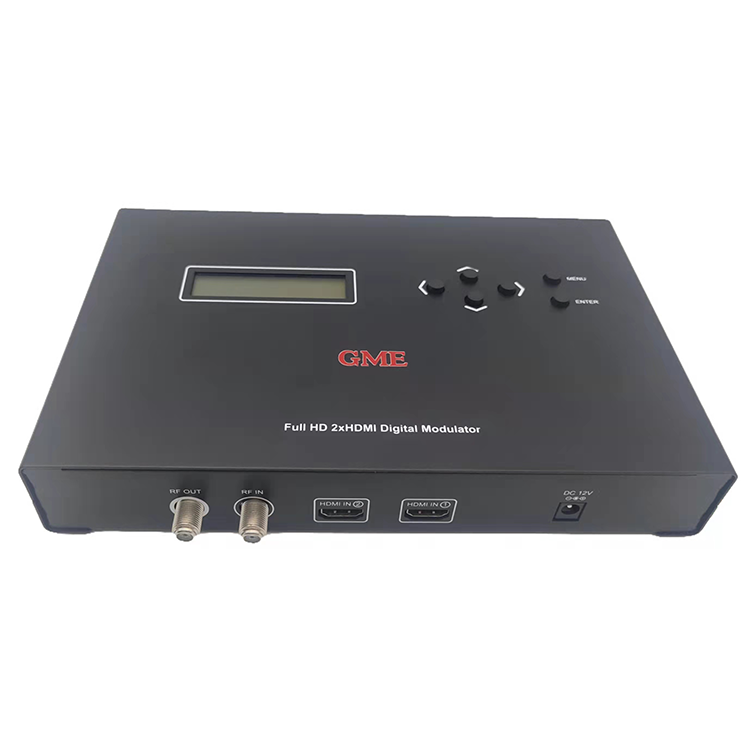

HD 2CH DVB-T Modulator
-
Color:
-
Black
-
Key Word:
-
HDMI 2CH Digital Modulator
-
Frequency Range:
-
177.5~858MHz
-
Function:
-
Digital Modulator
-
Output:
-
RF OUT
-
Language:
-
English
-
Support:
-
RF output adjustable
-
Input:
-
HDMI IN Max 1080P
-
Power SUpply:
-
AC100~240V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME,ODM/OEM
-
Model Number:
-
GDM-011(GTM-8608B)
-
Product name:
-
HD 2CH DVB-T Modulator
-
Color:
-
Black
-
Key Word:
-
HDMI 2CH Digital Modulator
-
Frequency Range:
-
177.5~858MHz
-
Function:
-
Digital Modulator
-
Output:
-
RF OUT
-
Language:
-
English
-
Support:
-
RF output adjustable
-
Input:
-
HDMI IN Max 1080P
-
Power SUpply:
-
AC100~240V
Product Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
|
|
|
||||||
|
Model Number:GDM-011(GTM-8608B)
|
|
|
|
|
|
|
||||||
|
ITEM
|
TYPICAL
|
|
Q.C LIMIT
|
|
TEST CONDITIONS
|
|
||||||
|
1. RF Output
|
|
|
|
|
|
|
||||||
|
Connector
|
Female TYPE-F
|
|
|
|
|
|
||||||
|
Impedance
|
75 ohms
|
|
|
|
|
|
||||||
|
Output Frequency Range
|
CH5~CH69
|
|
177.5MHz ~858 MHz
|
|
|
|
||||||
|
|
Low Band CH5~CH12
|
|
177.5MHz ~226.5MHz
|
|
|
|
||||||
|
|
High Band CH21~CH69
|
|
474MHz~858MHz
|
|
|
|
||||||
|
RF Out Level
|
97dBµV
|
|
97dBµV ± 5dBµV
|
|
|
|
||||||
|
RF Power Level ADJ
|
|
|
70 dBµV ~100 dBµV
|
|
|
|
||||||
|
MER
|
|
|
>30dB
|
|
|
|
||||||
|
2. RF Input
|
|
|
|
|
|
|
||||||
|
Connector
|
Female TYPE-F
|
|
|
|
|
|
||||||
|
Impedance
|
75 ohms
|
|
|
|
|
|
||||||
|
FREQ. RANGE
|
|
|
|
|
50~ 950 MHz
|
|
||||||
|
INSERTION LOSS
|
- 4.8dB
|
|
- 4.8 dB MAX.
|
|
|
|
||||||
|
3.HDMI INPUT
|
|
|
|
|
|
|
||||||
|
Connector
|
HDMI JACK
|
|
|
|
|
|
||||||
|
Compatible format
|
|
|
Auto /480I/ 480P /576I
/576P/720P/1080I/1080P |
|
|
|
||||||
|
4. System
|
|
|
|
|
|
|
||||||
|
Local Interface
|
LCD + control buttons
|
|
|
|
|
|
||||||
|
Remote management
|
|
|
Web Management
|
|
|
|
||||||
|
Ethernet port
|
|
|
RJ45,100M
|
|
|
|
||||||
|
5.Front Panel Function
|
|
|
|
|
|
|
||||||
|
Buttons
|
|
|
MENU
|
|
|
|
||||||
|
|
|
|
ENTER
|
|
|
|
||||||
|
|
|
|
▲UP
|
|
|
|
||||||
|
|
|
|
▼Down
|
|
|
|
||||||
|
|
|
|
◀ Left
|
|
|
|
||||||
|
|
|
|
▶ Right
|
|
|
|
||||||
|
Display
|
|
|
LCD
|
|
|
|
||||||
|
6. General Data
|
|
|
|
|
|
|
||||||
|
Software
|
|
|
Software Version
|
|
|
|
||||||
|
Supply Voltage
|
|
|
AC100V~240V
50Hz/ 60Hz OUTPUT:DC12V/2A |
|
|
|
||||||
|
Power Consumption Max
|
|
|
24W
|
|
24W Max in AC input
|
|
||||||
|
Working Temperature
|
|
|
+5℃ to + 40℃
|
|
|
|
||||||
|
Storage Temperature
|
|
|
-20℃ to + 65℃
|
|
|
|
||||||
|
Environmental
|
|
|
|
|
|
|
||||||
|
Temperature
|
|
|
0℃ to + 40℃
|
|
|
|
||||||
|
Humidity
|
|
|
40RH to 90RH
|
|
|
|
||||||
|
Mechanical Specification
|
|
|
|
|
|
|
||||||
|
Dimensions
|
|
|
266*162*40mm
|
|
|
|
||||||
|
Weight
|
|
|
1078g approximate
|
|
|
|
||||||
