Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RYK
-
Material:
-
alluminum alloy
-
Product name:
-

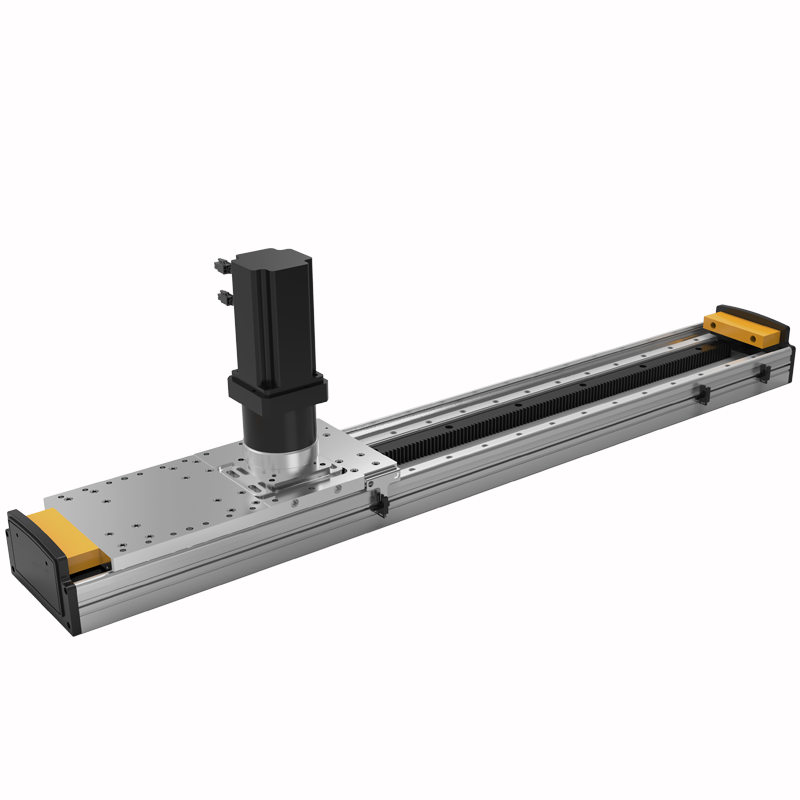

Rack and Pinion linear motion module
-
Performance:
-
Heavy Duty and Durable
-
Feature:
-
Long Operating Life
-
Application:
-
Automatic System
-
Length:
-
Customized Length
-
Product type:
-
Rack and pinion linear guide
-
Adapted motor:
-
750W/1000W servo motor, etc.
-
Keyword:
-
Rack And Pinion Heavy Sliding Module
-
Packaging:
-
Carton
-
MOQ:
-
1 Set
Quick Details
-
Weight (KG):
-
12
-
Marketing Type:
-
New Product 2023
-
Model Number:
-
RY series
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RYK
-
Material:
-
alluminum alloy
-
Product name:
-
Rack and Pinion linear motion module
-
Performance:
-
Heavy Duty and Durable
-
Feature:
-
Long Operating Life
-
Application:
-
Automatic System
-
Length:
-
Customized Length
-
Product type:
-
Rack and pinion linear guide
-
Adapted motor:
-
750W/1000W servo motor, etc.
-
Keyword:
-
Rack And Pinion Heavy Sliding Module
-
Packaging:
-
Carton
-
MOQ:
-
1 Set
Ball Screw Linear Module
Dust-proof Linear Module
Gear Rack Linear Module
Product Parameter
|
Product Name
|
Rack and Pinion Linear Sliding Table
|
|
Model No.
|
RY140/RY170/RY200/RY250
|
|
Width
|
140mm//170mm/200mm/250mm
|
|
Material
|
Aluminum 6061
|
|
Maximum Stroke
|
1500mm/3500mm/5500mm/5500mm
|
|
Maximum Speed
|
1500mm/s,2000mm/s,2000mm/s.2000mm/s
|
|
Drive Type
|
Belt driven
|
|
Repeatability
|
±0.01mm
|
|
HIWIN Linear Guide And Block
|
12/20/25/30/35/45mm
|
|
Maximum Output
|
Servo Motor: 400W/750W/1KW/1.5KW, 60/90/120 Motor Reducer
|
|
Rack Rail Lead
|
100/146.7/166.7/250mm
|
Features
1. New aviation aluminum, more rigid and lighter.
2. The rack and guide rail are all imported from Taiwan, with guaranteed quality.
3. Simple structure, the space occupied is small, and it is more suitable for various installations.
4. Large load, high speed, long service life, applicable speed, and large power transmission range.
5. Long stroke, aluminum, guide rails, and racks all support splicing, and the effective stroke can reach up to 12m.
Product Overview
Application
Laser Cutter
UV Inkjet Rprinter
Screw Machine
3D Printer
Assembly Line Sorter
Gantry Inspection Machine
Goods Palletizer
Patch Machine
Inspection Machine
