Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
4000-5700K
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PEONY
-
Model Number:
-
PL-UFO-L-100W
-
Product Name:
-
UFO LED High Bay Light
-
Power:
-
100W/150W/200W
-
Certification:
-
CE FCC RoHS
-
Keyword:
-
UFO Industrial High Bay Lighting
-
Type:
-
LED Hi-Bay Light
-
IP Grade:
-
IP65/IP66 Wateproof
-
Material:
-
Die-casting Aluminium
-
LED Light Source:
-
SMD LED 3030
-
Shape:
-
UFO Round
-
Function:
-
Microwave Motion Sensor Option
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
125
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
4000-5700K
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PEONY
-
Model Number:
-
PL-UFO-L-100W
-
Product Name:
-
UFO LED High Bay Light
-
Power:
-
100W/150W/200W
-
Certification:
-
CE FCC RoHS
-
Keyword:
-
UFO Industrial High Bay Lighting
-
Type:
-
LED Hi-Bay Light
-
IP Grade:
-
IP65/IP66 Wateproof
-
Material:
-
Die-casting Aluminium
-
LED Light Source:
-
SMD LED 3030
-
Shape:
-
UFO Round
-
Function:
-
Microwave Motion Sensor Option

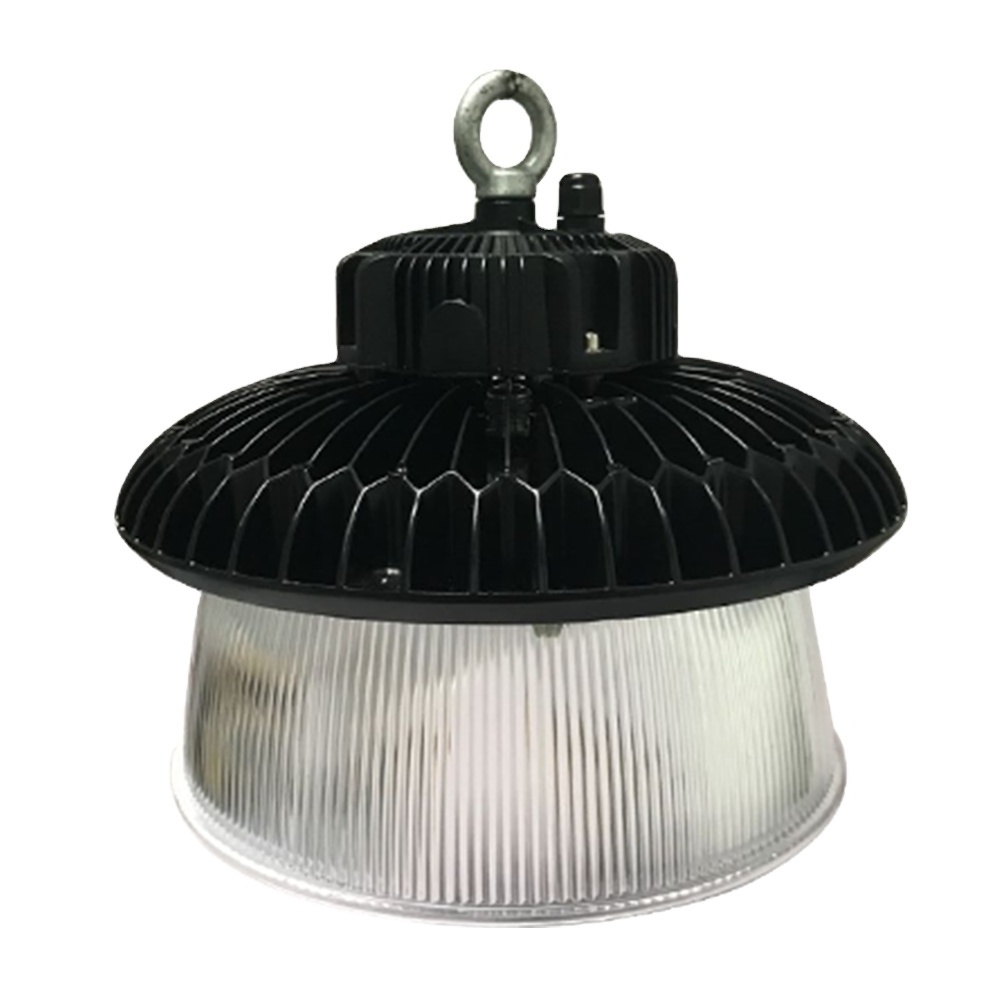

PEONYLIGHTING Warehouse use IP65 100w LED high bay light with reflector, ufo LED highbay light ,led industrial light
UFO led industrial lighting ufo led highbay light
With the improvement of LED technology, LED high bay light, as the
main luminaries of industrial lighting, are widely used. With better
performance, it is inevitable trend to use LED replace traditional lamps.
PL LED high bay light, adopting high efficiency optical system, uniform and good vertical light distribution, lower glare, is the ideal solution for LED high bay lighting.
Key Features
- Unique designed UFO shape , lighter and smaller
- Nichia 3030 & lumileds 3030 , Ra> 80; LM80 standard
- Luminous efficiency: 110-125 lm/w
- Meanwell HLG Series led driver
- Configurable Smart Dimming
- Certified product : ETL ; DLC ; SAA ; TUV-CE ; CB
- Glass cover or PC convex cover
- Wide aluminum plate design, heat dissipation fast and evenly
- Ideal mounting height: 8-15 m
- Angle for flexible bracket : 30 ° , 60 °, 90°, 120°, 150° .
- Installation: Rack mounting & Hook hanging
- Working temperature: -30°C ~ + 45°C
- IP65 protection level
Datesheet
| Model | PL-UFO-L-60W | PL-UFO-L-100W | PL-UFO-L-150W | PL-UFO-L-200W | PL-UFO-L-300W |
| Power | 60W | 100w | 150W | 200W | 300W |
| Luminous Flux | 130lm±10% | 130lm/w±10% | 130lm+10% | 130lm±10% | 130lm/w±10% |
| LED Source | Lumileds3030 /Lightning3030 | Lumileds3030 /Lightning3030 | Lumileds3030 /Lightning3030 | Lumileds3030 /Lightning3030 | Lumileds3030 /Lightning3030 |
| Inpuct Voltage | AC100~277V | AC100~277V | AC100~277V | AC100~277V | AC100~277V |
| Frequency Range | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
| Total Harmonic Distortion | <15% (Typical : 8%) | <15% (Typical : 8%) | <15% (Typical : 8%) | <15% (Typical : 8%) | <15% (Typical : 8%) |
| Color Temperature | 4000K, 5000k, 5700K | 4000K, 5000k, 5700K | 4000K, 5000k, 5700K | 4000K, 5000k, 5700K | 4000K, 5000k, 5700K |
| Color Rendering Index | CRI>80 | CRI>80 | CRI>80 | CRI>80 | CRI>80 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Beam Angle | 110° | 110° | 110° | 110° | 110° |
| Optical Transmittance | >97% | >97% | >97% | >97% | >97% |
| Housing Color | Black | Black | Black | Black | Black |
| Working Life | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
| Working Environmment | -30ºC~+50ºC, 10%~90% RH | ||||
| Body & Shade Material | Die-casting Aluminum housing & TG glass | ||||
| Where Can Use |
Warehouse; industrial production workshop; pavilion; stadium; the
train station; shopping malls; gas stations and other indoor lighting |
||||
60W UFO LED HIGHBAY LIGHT DIMENSION(MM):
100W UFO LED HIGHBAY LIGHT DIMENSION(MM):
150W UFO LED HIGHBAY LIGHT DIMENSION(MM):
200W UFO LED HIGHBAY LIGHT DIMENSION(MM):
240W UFO LED HIGHBAY LIGHT DIMENSION(MM):
Application
Warehouse; industrial production workshop; pavilion; stadium; the train
station; shopping malls; gas stations and other indoor lighting
Installation (Hook Hanging )
Feature:
UFO LED high bay, desi gned for industrial lighting. Ad optin g the newest LED lighting technology, lon ger lifespan, lower maintenance cost, high er efficiency. Unique designed optical light distribution can focus th e light to the lighting area, improving the luminaire efficiency, taking th e place of t raditional HID lamps. The wire is made of flame retardant cable which reachin g 90VO grade. Wire in black (AC input wi re), white (AC input wire) and blue( ea rth wire) .
1.In case of fire, ex plosion , el ectronic sh ock , the install, inspect and maintenance must be operated by professi onal people. 2.Please make sure the power off before operation ! Luminaries must be electronic grounding! 3.Please make th e voltage supplied is available for the luminaries! 4.Please make th e luminaries working under the limited working t emperature ! 5. In ord er t o guarantee en ough air convection, luminaries sh ould not be installed in na rrow space !
Hook hanging:
Attention: Lamp must be vertical suspension and the su pporter should can bear at least 3 times w eight of the lamp. Luminaires should not be installed where it is draught, in case of shaking and unstable.
Hook installation steps:
1.Cut off pow er before operation. 2.Kn owing th e inside diameter of the luminaires th en Choose suitable hook for the luminaires. 3.Fix th e hook bef ore installation and make the it can bear over 3 times weight of the lamp 4.Connect the lamp with h ook and make it is safe. 5.Connect the pow er wi re:B rown, “L”, conn ect to LIVE; Blue, “N” ,connect to N EUTRAL; Lime- green, conn ect t o EARTH/GRO UND 6.Light up the luminaires!
Warranty:
1.All products u se constant LED driver, LED chi ps, 5 years warranty. (und er th e condition that products are rightly kept, installed, used , and maintenance . On ce th e products fail because of improper used or installed or break th e products operation manual, we a re n ot respon sible for this situation. W e will repair or replace th e broken product s during the wa rranty. W e will charge extra material and labor cost if over warranty. 2.Please read the instruction manual careful, all rights reserved . 3.All products are su bject to change without n otice.
Maintenance manual:
1. Cut off pow er before maintenance 2. Clean the glass of LED street light regular to keep good light t ransmission. 3. Clean the dusk on the su rface and heat sink regular t o k eep good heat dissipation. 4. D o n ot use water or stron g corrosive liquid to clean th e lamp, d ry cloth is better. 5. R eplace LED driver: use screwdriver to open th e cover, fetch out th e driver. Y ou can see three AC wires, Match black wire with “L”, white with “ N”, blue with “G”. The red or white wire on driver is th e positive electrode, black wire is the negative elect rode . Notice, please confirm the positive and n egative electrode has n ot met extrem ely instead
Attention: Lamp must be vertical suspension and the su pporter should can bear at least 3 times w eight of the lamp. Holder installation steps: 1.Cut off pow er before installation. 2. Measu re the h ole si ze on the holder,ch oose suitable screw . 3. Fix th e screw at the place wh ere luminaires will be installed and it sh ould can bear over 3 times the weight of the luminaires 4.S crew u p the screws at both sides of holder, th en connect the h old hole with screws, ti ghten it u p. 5.Connect the pow er wi re: black, “L”,conn ect to LIVE; white, “N” ,connect to N EUTRAL; blue ,connect to EARTH/GRO UND 6.Light up the luminaires !
