Quick Details
-
Power:
-
2200/3000, 2.2kW
-
Dimension(L*W*H):
-
530*500*1030
-
Weight (KG):
-
108 kg
-
Product name:
-
vaccum cleaner
-
Usage:
-
Smoke Collector
-
Keyword:
-
industrial vaccum cleaner
-
Color:
-
customizable
-
Model:
-
PT200
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YYVAC
-
Voltage:
-
380v
-
Power:
-
2200/3000, 2.2kW
-
Dimension(L*W*H):
-
530*500*1030
-
Weight (KG):
-
108 kg
-
Product name:
-
vaccum cleaner
-
Usage:
-
Smoke Collector
-
Keyword:
-
industrial vaccum cleaner
-
Color:
-
customizable
-
Model:
-
PT200
Products Description

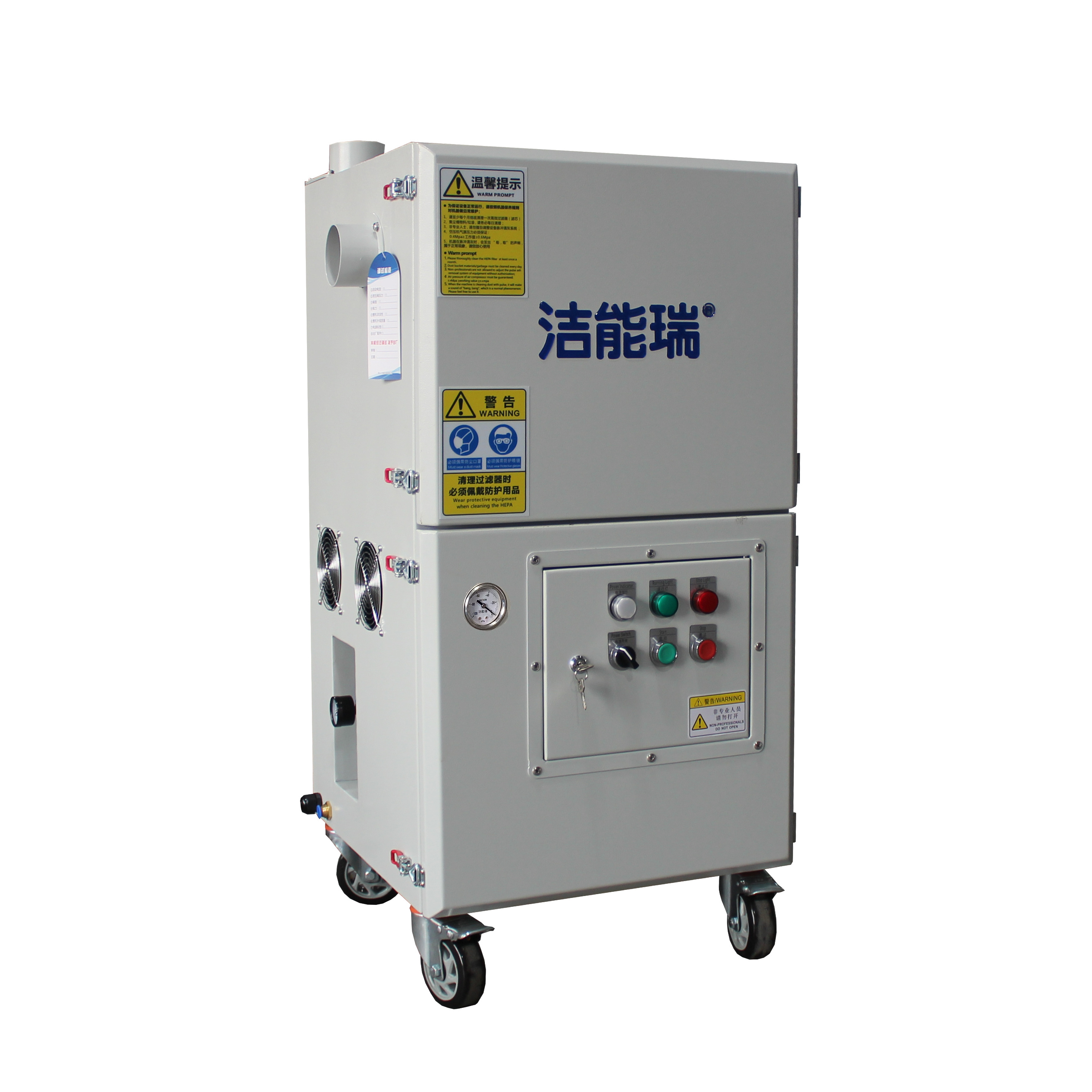

Product Introduction
Category:
Industrial Vacuum Cleaner
Model: PT200 | PT300
Brand: 洁能瑞/YYVAC
Suitable for combustible dust: No (Customizable)
Function: Used as an online system for collecting process-generated dust or impurities from the source point on a continuous basis to enhance the air quality.
Application: Dust & Debris
Integrated vacuum cleaning for process like robot welding, PCB splitting, precision laser engraving, precision laser cutting etc.as supporting equipment.
Model: PT200 | PT300
Brand: 洁能瑞/YYVAC
Suitable for combustible dust: No (Customizable)
Function: Used as an online system for collecting process-generated dust or impurities from the source point on a continuous basis to enhance the air quality.
Application: Dust & Debris
Integrated vacuum cleaning for process like robot welding, PCB splitting, precision laser engraving, precision laser cutting etc.as supporting equipment.
Product Paramenters
|
Description
|
Unit
|
PT200
|
PT300
|
|
|
Current type
|
Ph - V - Hz
|
3- 380 - 50 / 60
|
|
|
|
Power
|
kW / HP
|
2.2 / 3
|
3 / 4
|
|
|
Airflow
|
m³/h (l/s) / CFM
|
320 (89) / 188
|
320 (89) / 188
|
|
|
Vacuum
|
mbar / inH2O
|
190 / 76
|
260 / 104
|
|
|
Sound pressure level
|
dB(A)
|
66
|
67
|
|
|
Container capacity
|
l / gal
|
15 / 4
|
|
|
|
Filter area
|
cm2 / ft2
|
21600 / 23
|
|
|
|
Filter efficiency
|
μm
|
0.3
|
|
|
|
Filter type
|
|
2 HEPA filters
|
|
|
|
Filter cleaning system
|
|
Pulse jet cleaning (Compressed air requirement: 4-6 bar)
|
|
|
|
Switch control mode
|
|
Local + Remote
|
|
|
|
Inlet diameter
|
mm / in
|
40|50 / 1.57|1.97
|
|
|
|
Cable length
|
m / ft
|
7 / 23
|
|
|
|
Dimensions (L × W × H)
|
mm / in
|
530*500*1030 / 21*20*41
|
|
|
