Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CJ-JIA
-
Overall Dimensions:
-
9400*2200*1200mm
-
Power:
-
3.0KW
-
Worktable Size:
-
9400*2200mm
-
Embroidery Area:
-
500*850
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
body color:
-
optional
-
Computer:
-
DAHAO
-
Motor:
-
DAHAO
-
X/Y motor:
-
DAHAO
-
rotary hook:
-
original japan KOBAN
-
bobbin case:
-
TOWA
-
bearings:
-
japan NSK
-
table:
-
thick and water-proof
-
Certification:
-
CE/ISO9001
Quick Details
-
Maximum Speed:
-
1200 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
400mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CJ-JIA
-
Overall Dimensions:
-
9400*2200*1200mm
-
Power:
-
3.0KW
-
Worktable Size:
-
9400*2200mm
-
Embroidery Area:
-
500*850
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
body color:
-
optional
-
Computer:
-
DAHAO
-
Motor:
-
DAHAO
-
X/Y motor:
-
DAHAO
-
rotary hook:
-
original japan KOBAN
-
bobbin case:
-
TOWA
-
bearings:
-
japan NSK
-
table:
-
thick and water-proof
-
Certification:
-
CE/ISO9001
High speed embroidery machine (single cam double driver)
1)model: CJHX920-02
2) DAHAO A18 computer, latest model
3) DAHAO servo motor for main motor
4) head distance: 400mm
5) embroidery area: 500*850mm
6) x/y motor also use DAHAO servo
7) single cam double driver high speed head
8) jump motor every head
9) Automatic thread cutter
10) Production speed: 1000rpm, max speed 1200rpm
11) Linear drive system
12) 400*500*12mm heavy beam
13) beam thickness: 12mm
14) power supply: 220v/380v
15) upper and lower thread control
16) vacuum packing
17) payments term: T/T or L/C
18) delivery time: 18 days after receiving TT advance or original LC
Features of our high speed machine
1) use our own high speed head, every head with jump motor
2) with our new technology oil frog system
3) use very heavy machine body, just machine body about 6.5T
4) down side combined beam structure
5) very low noise
6) head system is linear system not bearing system
7) production running speed 1000-1100RPM, max 1200rpm
High speed machine introduction:
High speed series of embroidery machines are developed with advanced controlling system, reliable machine body and reasonable driving structure with high speed and low noise. It reaches maximum speed of 1200 RPM and it's compatible with sequin devices and taping devices that improves embroidery efficiency and reflects the perfect combination with speed and embroidery quality.

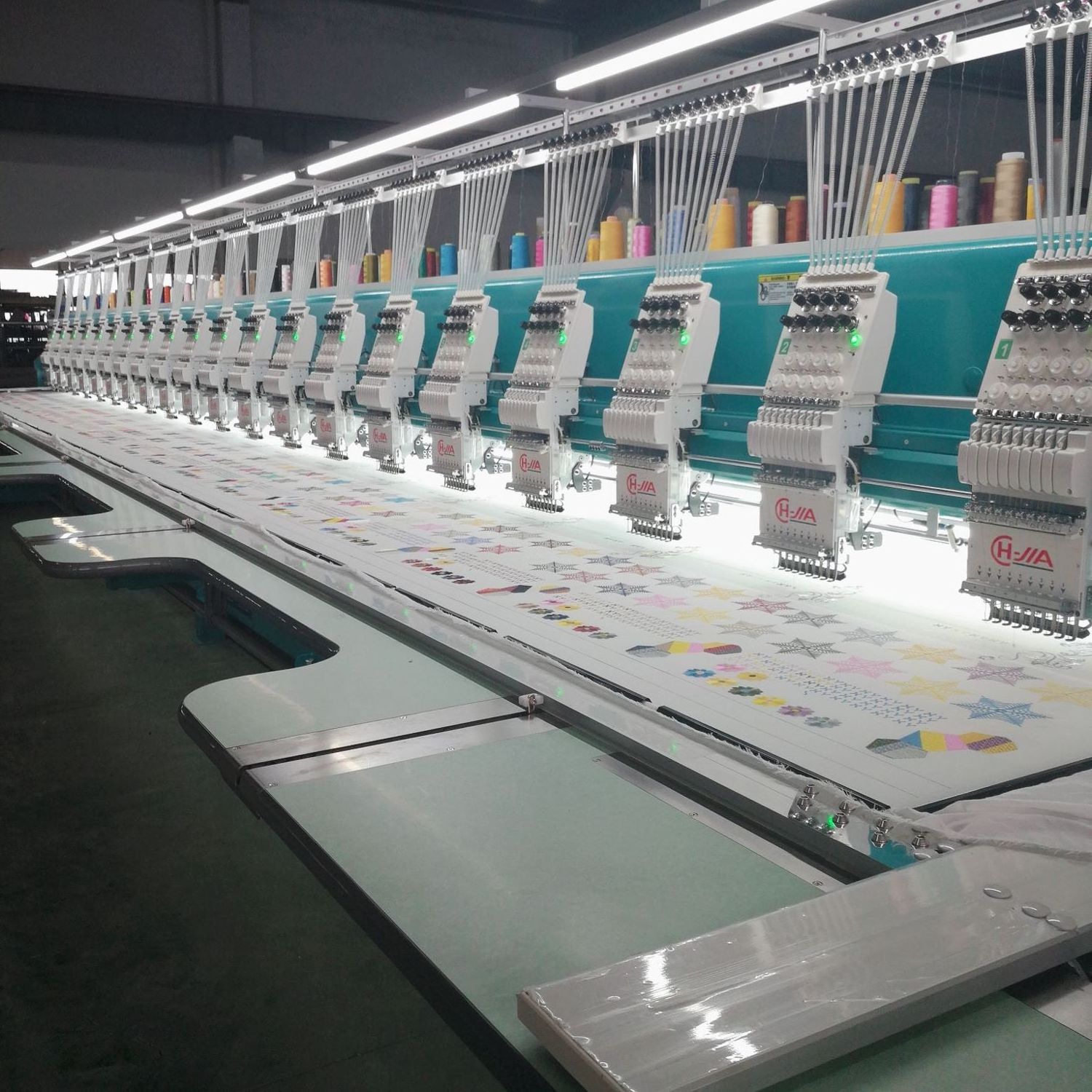

MORE PHOTOS OF MACHINE SHOW
Our company view
Production procedures
Our honor
Our own patent: oil frog system
why difference from auto oil in market.
1.our oil system is a kind of oil frog, traditional auto oil
after some times use, easily get blocked, finally no use.
oil frog is a kind of oil air, never blocked.
2. our oil frog system, becuse it is a kind of oil air, so from
photo you can see shutter place/rotary hook shaft/every
part can be oiled.
3. As you know, rotary hook shaft,while machine working
the speed usually 2 times, so if this part not good and
correct oil, machine will be problem.
4. we have video, add me whatsapp
008618657528493/skype: roy041
