Quick Details
-
Model Number:
-
ACM90 3 phase electric motor
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
AC motor
-
Name:
-
three-phase ac motor
-
Application:
-
factory,project,planet,chemical
-
Voltage:
-
220V/3800V
-
Usage:
-
electric pump,valve,factory
-
Speed:
-
1440rpm
-
frequency:
-
50/60hz
-
Certification:
-
CE / RoHS / REACH/EPR
Quick Details
-
AC Voltage:
-
208-230 / 240 V,380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bobet
-
Model Number:
-
ACM90 3 phase electric motor
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
AC motor
-
Name:
-
three-phase ac motor
-
Application:
-
factory,project,planet,chemical
-
Voltage:
-
220V/3800V
-
Usage:
-
electric pump,valve,factory
-
Speed:
-
1440rpm
-
frequency:
-
50/60hz
-
Certification:
-
CE / RoHS / REACH/EPR
Welcome to Bobet!
Hello dear, welcome to Bobet
:)
, the most professional,reliable and warm Group with factory who make industrial Electric gear motors for years. Due to time difference we might not response to your inquiry in time but we won't keep you waiting so long,we will reply or contact you asap when we are available,thank you!
:)
|
How to choose a suitable AC electric motor for your application?
|
voltage
|
|
|
|
||||
|
First check the
voltage(V)
of power supply for the motor, normally if using such motors for household, then they are single phase,120v or 220v AC type. if using such motor in factory for some automatic machines,such as pump,engrave,door opener,Conveyor belt, feeder, mixer, belt input machine, screw machine, crusher, large fan, chemical plant, power plant, equipment manufacturing plant, processing plant...the voltage should be 220V/380V ,three phase model,then considering the
speed(rpm)
and
torque(N.m or kg.cm)
needed ,they are basic performance need to know, to decide any gearbox is necessary or not.then we also need to consider the size(or mounting space),shape of the motor. then we need to consider the other factors,such as speed control,positioning function, motion accurate are required or not, cost down,Energy saving,gear self-lock, machine noise,structure and other performance...you may contact us to get more help,we are glad to :).
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Brush DC motor
|
Brushless DC Motor
|
Stepper Motor
|
Servo Motor(AC/DC)
|
AC induction Motor
|
||||
|
Cheap/easy speed regulated/no need driver if no need speed control
|
Maintenance-free/Long life time and high efficiency,need driver
|
Precision positioning/1.8°per step
need driver
|
Excellent dynamic performance/High speed and precision control
need driver(controller)
|
Simply structure,AC input/no need driver if no need speed control
just use brake,switch,contactors to operate the motor
|
||||
|
Gearbox is necessary when big torque and slow speed is needed.
Gearbox Output speed = motor speed / ratio of gearbox Gearbox
output torque = motor torque * ratio of gearbox * efficiency
|
|
|
|
|
||||
|
Encoders and Electromagnetic brake are optional for these motors,as well the shaft (axis,axle)shape,length are Customizable to meet special application.
|
|
|
|
|
||||
Products Description
10 years+ Manufacturer made and supply directly all copper core 50hz/60hz 180w 220V/380V three phase electric motor for factory
Mainly used in factory,
Mining,
plant,
Waterworks, water treatment plants, chemical plants
,industrial machine,cars,pump,
fan,blower,equipment,
Waste treatment machine,
grinder
...
three phase AC Induction electric motor
Motor type:
AC Induction electric motor
Gear type: Can match Metal worm gear,planetary gear and normal gearboxes.
Motor: 120v,220v,230v(single phase)-220V/380V(3 phase)
Gear shaft speed: 1440 rpm
Output torque: 1.5Nm
Can be customized
Title1:
10 years+ Manufacturer made and supply directly all copper core 50hz/60hz 180w 220V/380V three phase electric motor for factory

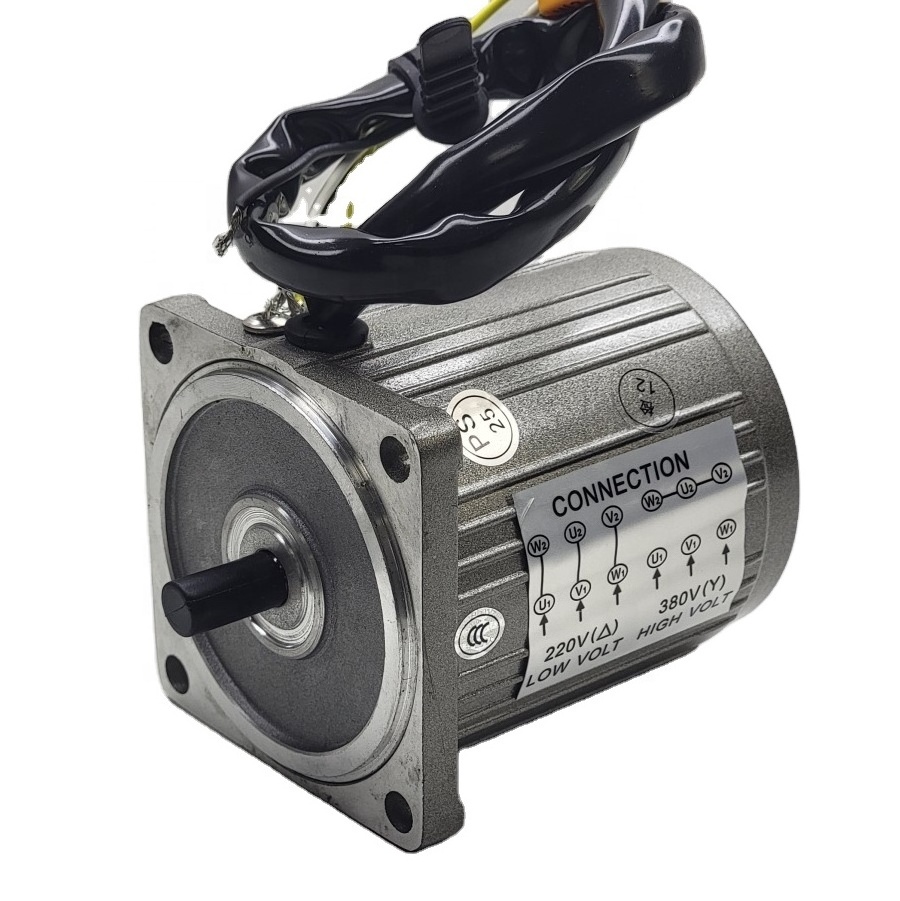

Product pictures
Performance¶meters
|
Model No.
|
voltage
(V)
|
Frequency
(HZ)
|
Current
(A)
|
Starting
torque
(N.m)
|
Rated Torque
(N.m)
|
Rated speed (rpm)
|
Rated
power
(watt)
|
Duration
(Minute)
|
Capacitor
(uF/VAC)
|
|
ACM90-180w(delta)
|
220V
|
50/60
|
1.1
|
1.2
|
0.8
|
1350/
1680
|
180/200
|
continuous
|
-
|
|
ACM90-180w(star)
|
380V
|
50/60
|
0.5
|
1.5
|
1.2
|
1350/
1680 |
180/200
|
continuous
|
-
|
Shape and dimensions
CAD 2D drawings and 3D drawings for such motors are available,pls contact us to get them if need.
Related products
Title2:
Manufacturer made and supply directly all copper core single phase 50hz/60hz 90w 240V AC induction motor for automatic machines
To use these motors you might also need below products
controllers and drivers
soft starter for AC motor
for AC motor,lower down the current of motor during the start process.
Inverter for 3 phase AC motor
This product is also called frequency converter,or
frequency transformer,used for 3 phase AC motors,
Accurate speed regulation and energy saving
Similar products
close size or solutions optional
AC Motors
other power of AC motors,such as 140w,180w,200w,250w
,370w（0.5 hp),750w(1 hp),and 1000w(1.5hp),1500w(2 hp).
Gear AC motors
Usual gearbox,planetary gearbox,NMRV series worm gearbox,and hollow shaft gearbox...
Certifications
CE report of motors and drivers( Certificate of compliance)
our popular products(dc gear motor and drivers) have passed CE certification ,proven to be safe and accepted to be sold in most regions such as EU and USA.
RoHS certification of motors and drivers
our popular products(dc gear motor and drivers) have passed RoHS certification ,meet
the EU directives
about
material safe condition
.
Above video shows our motors and drivers are been testing,to ensure the quality,get exact performance and data ,such as the speed-torque curve
diagram.
Manufacturer made and supply directly all copper core single phase 50hz/60hz 90w 240V AC induction motor for automatic machines
Our Advantages
Factory machine
Precision parts,such as the shaft,bearing are been making.
Motor winding
motors are been winding by automatic winding machine.
QC and Testing
Stuff are testing the performance of the motors.
