Quick Details
-
Type::
-
Sliding Doors
-
Structure::
-
Aluminum Frame
-
Function::
-
Soundproof, Space Partition
-
Position::
-
Commercial
-
Sliding Door Type::
-
Partition Doors
-
Surface::
-
Melamine MDF
-
Width::
-
800-1230mm
Quick Details
-
Product name:
-
foldable room wall partition
-
Material:
-
Melamine Board
-
Open Style::
-
Folding
-
Type::
-
Sliding Doors
-
Structure::
-
Aluminum Frame
-
Function::
-
Soundproof, Space Partition
-
Position::
-
Commercial
-
Sliding Door Type::
-
Partition Doors
-
Surface::
-
Melamine MDF
-
Width::
-
800-1230mm

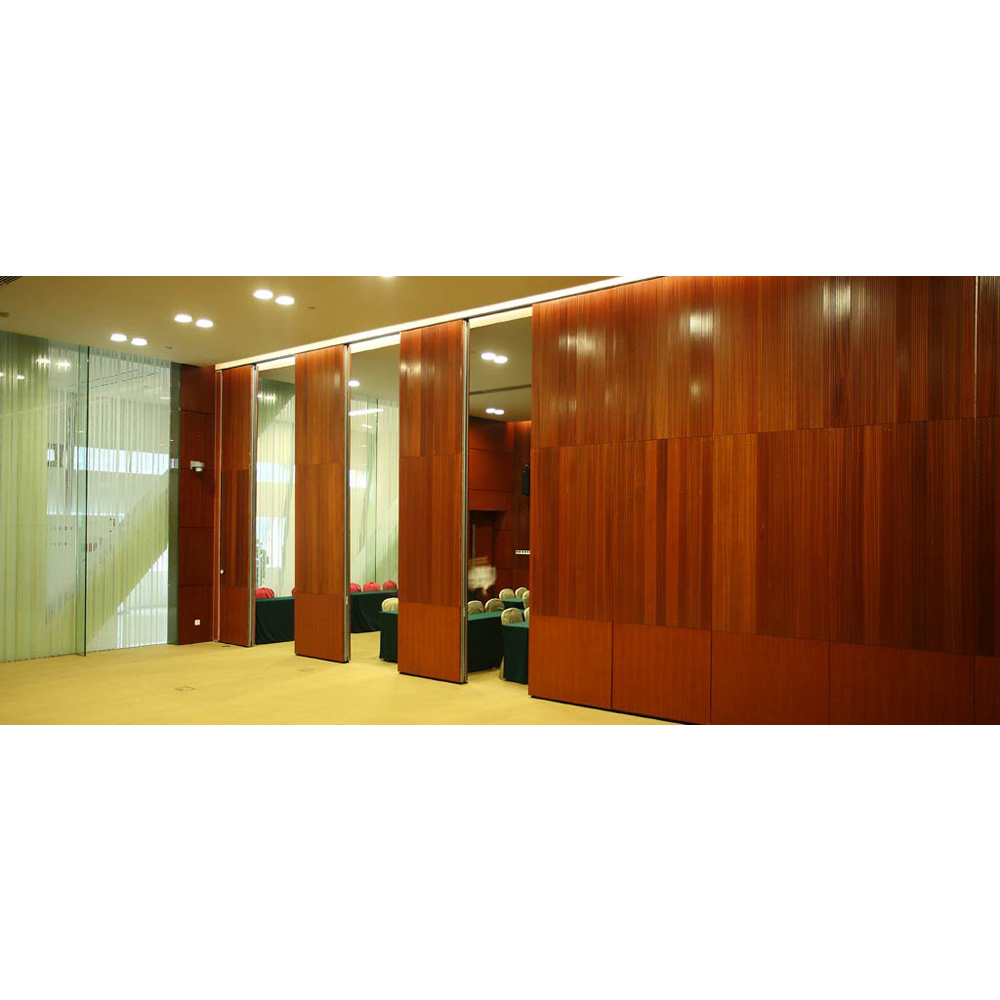

High quality sound proof folding door wall partition foldable room wall partition
LEEYIN movable partition walls have unparalleled quality, design flexibility, acoustic performance and lasting durability. Proudly manufactured in the Guangzhou , LEEYIN movable partition walls with aluminum frame have the most widespread application. The partition is constituted by a set of flat panel whose width ranges from 700mm to 1200mm. The panel is provided with various specifications and characteristics to satisfy most requirements of design and budget . Its thickness can be 65mm,80mm or 100mm. Additionally, each model comes with different grades of sound insulation as well as single or paired hinges.LEEYIN movable partition walls can be designed with the industry’ s most comprehensive range of dimensions, performance options, and decorative finishes. Increasingly, efficient space utilisation becoming a must for offices, hotels, exhibition centres , studios and so on.
Series | LY65 | LY80 | LY100 |
Panel suspension | Top hung only | ||
Track system | Single or twin point | ||
Panel thickness | 65mm | 80mm | 100mm |
Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
Max height | 3500mm | 5200mm | 17000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | ||
Face material | 9mm | 9mm / 12mm | 12mm |
Fire retardant | as request | ||
Retractable seals | have | ||
Adjustable panels | Manual, with supplied operating handle | ||
Pass doors | Single door or double door as request | ||
Sound insulation | 32dB | 40dB | 50dB |
Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Finish
Project reference
