Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

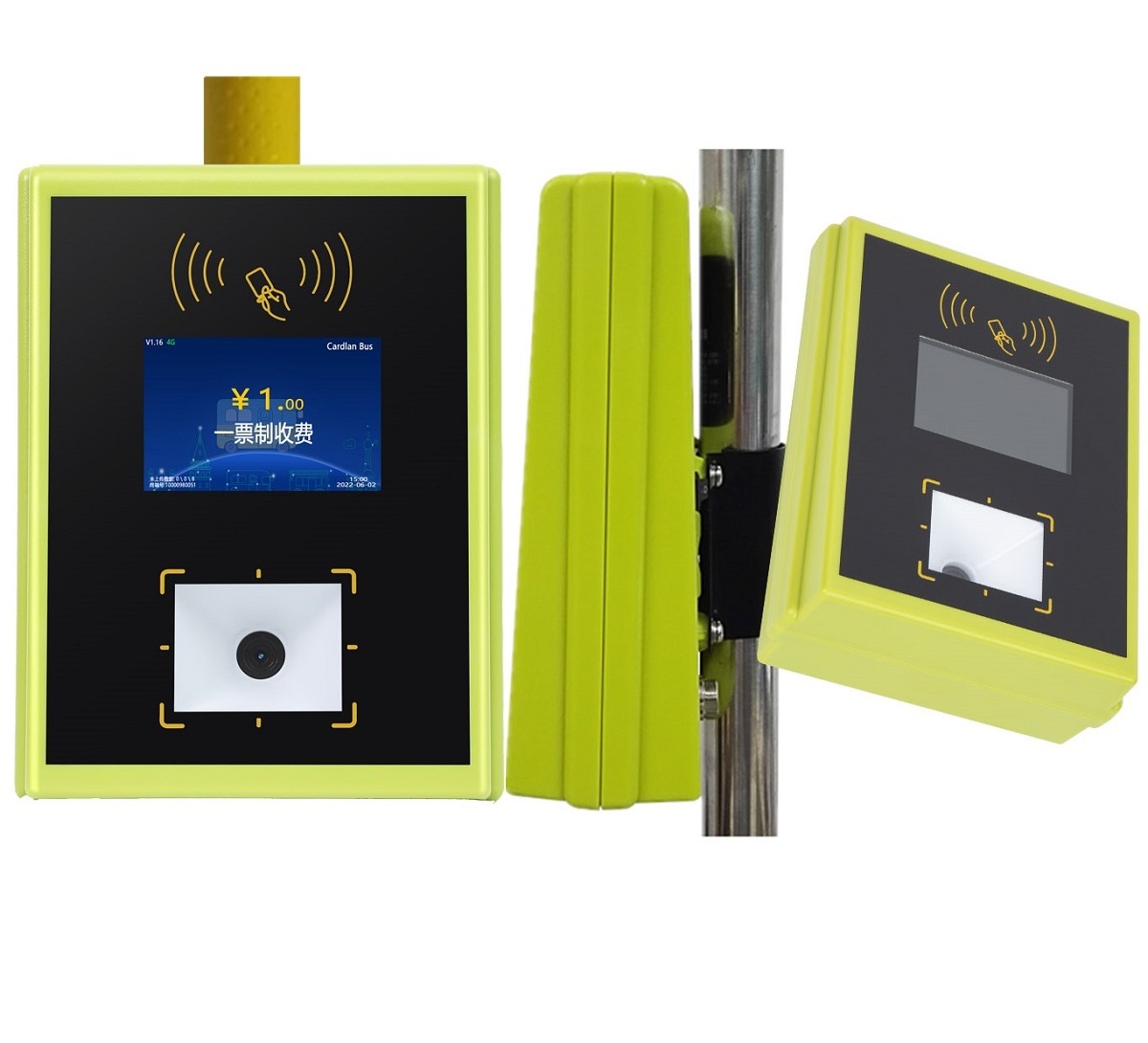

Bus card reader validator
-
Measurement:
-
195*151*48 mm
-
Display:
-
3.5 inch LCD display, 320x240
-
Housing material:
-
Engineering plastics
-
Communication:
-
GPRS.,3G,4G optional
-
Voice Prompt:
-
16KHz,16bit single channel voice prompt
-
Working Frequency:
-
13.56Mhz
-
Color:
-
Gray, Green, Orange, or Customized
-
Application:
-
Public Transportation, Scenic Spot, Balance inquiry, Enterprise Bus
-
Certification:
-
CE, FCC, CCC, ISO9001:2008, EMV_1
Quick Details
-
Model Number:
-
CL-A0409
-
Country of Origin:
-
China
-
Brand Name:
-
CARDLAN
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Bus card reader validator
-
Measurement:
-
195*151*48 mm
-
Display:
-
3.5 inch LCD display, 320x240
-
Housing material:
-
Engineering plastics
-
Communication:
-
GPRS.,3G,4G optional
-
Voice Prompt:
-
16KHz,16bit single channel voice prompt
-
Working Frequency:
-
13.56Mhz
-
Color:
-
Gray, Green, Orange, or Customized
-
Application:
-
Public Transportation, Scenic Spot, Balance inquiry, Enterprise Bus
-
Certification:
-
CE, FCC, CCC, ISO9001:2008, EMV_1
1. Application environment:
CL-A0409 smart bus POS can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field :
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
2. Functional features:
l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection
l Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
l Support consumption details and statistics query, according to card No., time, operator No. etc.
3. Technical specifications:
| Model: | CL-A0409 card reader for public transportation | Data capacity: |
259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
| Dimension: |
195*151*48 mm |
Card capacity: |
91,880,000 pcs |
| Material: | Engineering Plastics(Anti static electricity coating design, be protected from high-frequency interference) | Black list: |
91,880,000 pcs (download from PC with USB) |
| Display: |
3.5 inch LCD display, 320*240 |
Working Voltage: | DC 8V-50V |
| Operating system: | Linux system | Data collection: | WIFI / GPRS wireless collection and USB local collection |
| CPU: |
ARM9 core processor ,240Mhz |
Operating temperature: | -35℃~75℃ |
| Memory: |
32MBytes SDRAM,128MB NANDFlash main memory |
Storage temperature: | -45℃~85℃ |
|
Indicator light : |
Red and green |
Humidity: | 0-90% RH non-condensing |
| Sound prompting: |
Buzzer , Single channel loudspeaker |
Audio: |
8 Ω ,2W |
| Flash Memory: |
32MBytes SDRAM,128MB NANDFlash main memory |
RFID: |
Can read and write ISO14443 Type A\B Electronic tag |
| Read card distance: | 0~50mm | Frequency: | 13.56MHz |
| Supporting card: |
Mifare 1 card, CPU card, UnionPay IC card |
Interfaces/Connectors: |
USB-HOST,USB-OTG,RS485 or TTL-232 |
|
Printing module : |
Support external POS 58 printer
(need 5pin aviation plug turn DB9 cable) |
Width of receipt: | Thermal paper, 58 mm |
| Power consumption: | ≤10 W |
Wireless Communication: |
GPRS.,3G,4G optional |
| WIFI: |
Support 802.11n/b/g standard,150Mbps,2.4Ghz |
Voice Prompt : |
16KHz,16bit single channel voice prompt |
| Upgrading: | Connect USB to PC, upgrade with GPRS | Position way : |
GPS, Beidou positioning (Optional) |
|
Working Mode : |
Stand-alone or connect to server | Warning Function: | Warning when card balance is insufficient or data memory is full |
PROVIDE FREE SDK SUPPORT SECONDARY DEVELOPMENT TO TOPOLOGY YOUR OWN SPECIFIC FUNCTION !
Package for Bus card reader:
1. Each device with foam into a box.
2. 1 unit / gift box; 21 boxes / carton, carton size 57*51*30 cm.
3. 60 set of cables / carton, 56 kgs / carton, carton size 58*38*51 cm.
4. Packed as customers' request.
