Quick Details
-
Dimension(L*W*H):
-
1050*850*1500mm
-
Weight:
-
230 KG
-
Product name:
-
Semi-auto AB glue potting machine
-
Control:
-
PLC+LCD
-
AB steel tank:
-
25L
-
A steel tank:
-
heating and stir
-
A Pump:
-
screw pump or gear pump 6-12CC
-
Glue:
-
Liquid AB glue
-
Auto glue-supplying:
-
ratio range from 1:1 to 10:1
-
Clear Tank:
-
10L
-
Air Pressure:
-
0.5-0.8MPa
-
B Pump:
-
gear pump 0.6-2.4CC
-
Marketing Type:
-
AB resin two part glue potting machine
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIUJIANG
-
Dimension(L*W*H):
-
1050*850*1500mm
-
Weight:
-
230 KG
-
Product name:
-
Semi-auto AB glue potting machine
-
Control:
-
PLC+LCD
-
AB steel tank:
-
25L
-
A steel tank:
-
heating and stir
-
A Pump:
-
screw pump or gear pump 6-12CC
-
Glue:
-
Liquid AB glue
-
Auto glue-supplying:
-
ratio range from 1:1 to 10:1
-
Clear Tank:
-
10L
-
Air Pressure:
-
0.5-0.8MPa
-
B Pump:
-
gear pump 0.6-2.4CC
-
Marketing Type:
-
AB resin two part glue potting machine

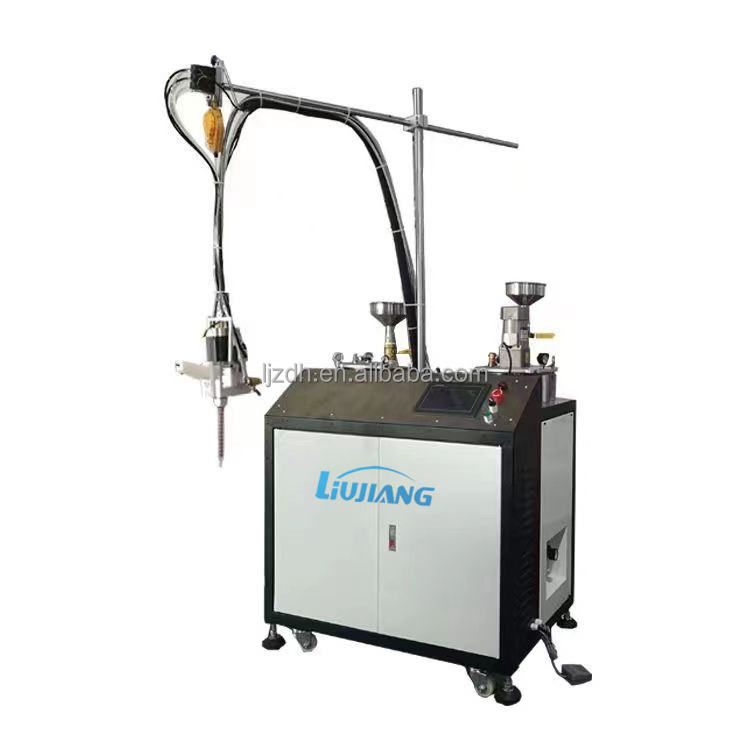

Semi-automatic Epoxy AB Glue Potting Dispensing Machine
Product Description
|
Technical Type |
Technical Parameter |
|
Glue mixing ratio |
1:1~10:1 |
| Moving Path | Point |
| Potting Speed | 10-150g/5s(Adjustable, outputting amount will be different with different glue) |
| Potting Precise | Amount±1%, Ratio:±1% |
| Air Pressure | 0.5-0.8MPa |
| Head Sealing pressure | MAX≤2.6Mpa |
| A B Glue viscosity | <10000CPS |
| Operation Method | Manual |
| Flow Counting | Visual |
| Program Method | Teaching Program |
| Interface | English |
| Electronic Control System | Smart control card+PLC+Touch Screen(Program setting, modify, save) |
| Glue Stop System | A, B Glue independent movement auto resorption system |
| Mixing Stirring System | High speed dynamic stirring mixing device |
| Glue ratio control | High precise metering pump |
| A Pump | High precise gear pump 6-12CC |
| B Pump | High precise pressure gear pump 0.6-2.4CC |
| A Glue Bucket Stirring System | Customize |
| B Glue Bucket Stirring System | Customize |
| A Glue Heating System | Support |
| B Glue Heating system | Customize |
| Vacuum Function | Customize |
| A Glue Tank Volume | 20L |
| B Glue Tank Volume | 20L |
| Cleaning Tank Volume | 10L |
| Dimension | 1050*850*1500mm |
| Rated power consumption | 220V 50Hz About 3500W |
Liujiang ab two parts glue machine with gear pump Or use screw pump
Liujiang ab two parts glue machine with gear pump Or use screw pump
