3535 smd white led 6500k are been packed with 1000pcs/reel, each reel packed in an vacuum bag.
- Product Details
- {{item.text}}
Quick Details
-
Color Temperature(CCT):
-
0
-
Input Voltage(V):
-
2v
-
Product Weight（kg）:
-
0.0001
-
Luminous Intensity:
-
3500mW
-
Optical Attenuation(%):
-
0.3
-
Power:
-
10W
-
Power Dissipation:
-
10
-
Viewing Angle(°):
-
20
-
Color Rendering Index(Ra):
-
0
-
Operating Temperature(℃):
-
-30 - 85
-
Storage Temperature(℃):
-
-40 - 100
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GMKJLED
-
Chip Brand:
-
Derui
-
Chip Size:
-
43mil
-
Forward Current:
-
4000ma
-
Forward Voltage:
-
2.2v
-
Lens Type:
-
glass lens
-
Application:
-
infrared therapy
-
Golden wire:
-
99.99% Pure Golden Wire
-
Wavelength:
-
808nm 850nm 940nm
-
Material:
-
Nitride aluminum Ceramic
Quick Details
-
Warranty(Year):
-
5-Year
-
Support Dimmer:
-
Yes
-
Chip Material:
-
AlGaInP
-
Color Temperature(CCT):
-
0
-
Input Voltage(V):
-
2v
-
Product Weight（kg）:
-
0.0001
-
Luminous Intensity:
-
3500mW
-
Optical Attenuation(%):
-
0.3
-
Power:
-
10W
-
Power Dissipation:
-
10
-
Viewing Angle(°):
-
20
-
Color Rendering Index(Ra):
-
0
-
Operating Temperature(℃):
-
-30 - 85
-
Storage Temperature(℃):
-
-40 - 100
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GMKJLED
-
Chip Brand:
-
Derui
-
Chip Size:
-
43mil
-
Forward Current:
-
4000ma
-
Forward Voltage:
-
2.2v
-
Lens Type:
-
glass lens
-
Application:
-
infrared therapy
-
Golden wire:
-
99.99% Pure Golden Wire
-
Wavelength:
-
808nm 850nm 940nm
-
Material:
-
Nitride aluminum Ceramic

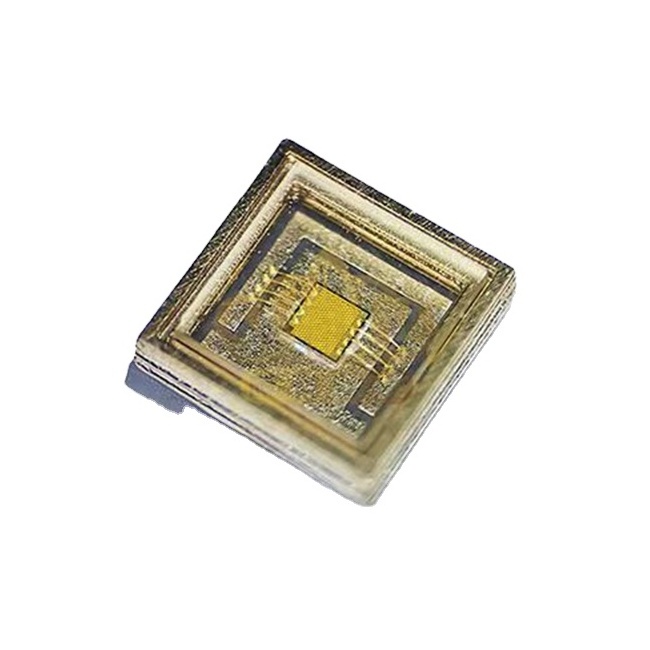

ir laser illuminator 808nm 850nm 940nm 10w 2V 3535 smd ir led for Infrared communication
Products Description
Features
1.
Instant light
2.Low voltage operation,
3.Long operation life
Applications
1
Smart home
2.Iris/face recognition
3.biomedical
4.Infrared communication
5.Infrared monitor, infrared therapy
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter
|
Symbols
|
Conditions
|
Min
|
Avg.
|
Max
|
Units
|
|
Forward Voltage
|
VF
|
IF=4000mA
|
--
|
2.2
|
-
|
V
|
|
Thermal Resistance Junction To Board
|
RΘJ-B
|
IF=4000mA
|
--
|
5
|
--
|
°C/W
|
|
Radiant Flux
|
Φe
|
IF=4000mA
|
--
|
3500
|
--
|
mW
|
|
Peak wavelength
|
λp
|
IF=4000mA
|
--
|
808
|
--
|
nm
|
|
|
|
|
--
|
850
|
--
|
nm
|
|
|
|
|
--
|
940
|
--
|
nm
|
|
Reverse Current
|
IR
|
VR=5V
|
--
|
--
|
2
|
μ A
|
|
Viewing Angle [1]
|
2Θ1/2
|
IF=4000mA
|
--
|
20
|
--
|
Deg
|
Application
Packing&Delivery
Packing:
