Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
GreenMore
-
Model Number:
-
GM-SKT550
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278*1134*35mm
-
product name:
-

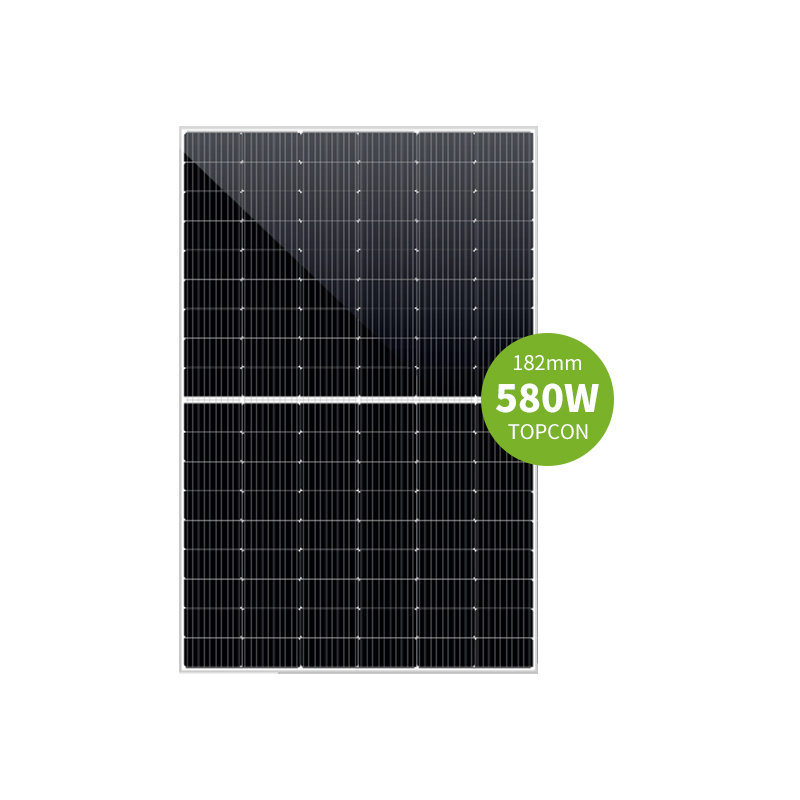

580W Solar Panels
-
Weight:
-
21.5kg
-
Front Glass:
-
3.2 mm tempered glass, low iron
-
Frame:
-
Anodized aluminum alloy
-
Power Tolerance:
-
0~10W
-
Cables:
-
4.0mm²,cable length:900mm
-
Packing:
-
31PCS / Pallet
-
1st year power degradation:
-
<1%
-
Connector:
-
T6 or MC4 or MC4-EVO2 or MC4- EVO2A
Quick Details
-
Cell size:
-
182*182mm
-
Type:
-
PERC, Half Cell, Double-glass, All Black
-
Panel Efficiency:
-
21.5%
-
Warranty:
-
30 years
-
Brand Name:
-
GreenMore
-
Model Number:
-
GM-SKT550
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278*1134*35mm
-
product name:
-
580W Solar Panels
-
Weight:
-
21.5kg
-
Front Glass:
-
3.2 mm tempered glass, low iron
-
Frame:
-
Anodized aluminum alloy
-
Power Tolerance:
-
0~10W
-
Cables:
-
4.0mm²,cable length:900mm
-
Packing:
-
31PCS / Pallet
-
1st year power degradation:
-
<1%
-
Connector:
-
T6 or MC4 or MC4-EVO2 or MC4- EVO2A
Product Description
Specification
|
Module Type
|
GM-SKT530
|
GM-SKT540
|
GM-SKT550
|
GM-SKT555
|
||||
|
Electrical Characteristics(STC) :Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5
|
|
|
|
|
||||
|
Maximum Power-Pmax(w)
|
530
|
540
|
550
|
555
|
||||
|
Open Circuit Voltage-Voc(V)
|
49.2
|
49.5
|
49.8
|
49.95
|
||||
|
Short-Circuit Current-Isc(A)
|
13.71
|
13.85
|
13.99
|
14.05
|
||||
|
Voltage at Pmax-Vmp(V)
|
41.35
|
41.65
|
41.95
|
42.1
|
||||
|
Current at Pmax-lmp(A)
|
12.83
|
12.97
|
13.12
|
13.19
|
||||
|
Module Efficiency -ηm(%)
|
20.5
|
20.9
|
21.3
|
21.5
|
||||
|
Power Tolerance(W)
|
(0,+5.00)
|
(0,+5.00)
|
(0,+5.00)
|
(0,+5.00)
|
||||
|
Maximum System Voltage(VDC)
|
1500
|
|
|
|
||||
|
Maximum Series Fuse Rating(A)
|
25
|
20
|
20
|
20
|
||||
|
Mechanical Specifications
|
|
|
|
|
||||
|
Dimensions
|
2278*1134**35mm
|
1956*992*40mm
|
2384*1096*35mm
|
2279*1134**35mm
|
||||
|
Weight
|
28.6kg
|
22.5kg
|
28.60kg
|
29kg
|
||||
|
Solar Cells
|
Monocrystalline 182*1820mm（144pcs）
|
|
|
|
||||
|
Front Glass
|
3.2 mm tempered glass, low iron
|
|
|
|
||||
|
Frame
|
Anodized aluminum alloy
|
|
|
|
||||
|
Junction Box
|
IP68
|
|
|
|
||||
|
Mechanical Load
|
5400Pa
|
|
|
|
||||
|
Output Cables
|
4.0mm²,cable length：1200mm
|
|
|
|
||||
|
Connector
|
MC4 Compatible
|
|
|
|
||||
|
Packing List
|
|
|
|
|
||||
|
Container
|
20'GP
|
|
20'HQ
|
40'GP
|
||||
|
Pieces per Pallet
|
31
|
|
31
|
31
|
||||
|
Pallets per Container
|
4
|
|
20
|
20
|
||||
|
Pieces per Container
|
124
|
|
620
|
620
|
||||
FAQ
Frequently Asked Questions for Buyers
Q1: Why you should choose us?
---More than 10 years International trading experiences
---Professional export team and reliable supply chains
---Work with top manufacturers to provide one-stop solutions
---Qualified products with competitive price
---Throughout QC process
---Considerate services
Q2: How is your after-sale service?
---We provide warranty for all products and our back-up team is ready for your any further needs.
Q3: What kind of certification you have?
---All manufacturers owns ISO9001,ISO14001, CE,ROHS,UL,and so on.
---Every product can pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 10 days.
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different models. However 1~10pcs sample order is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8. What's your payment methods?
---We accept paypal, western union, T/T. If you have any other payment requirements, we can discuss about it.
