Quick Details
-
Product name:
-

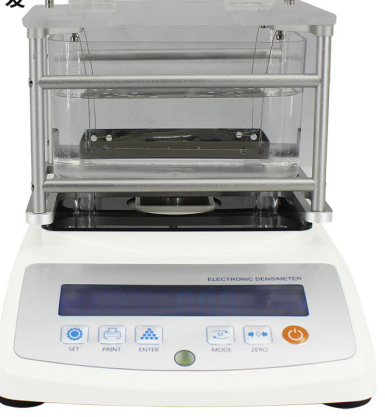

gold tester purity detector
-
Measurement range:
-
0.005~300g
-
Density Precision:
-
0.001 g/cm3
-
Application:
-
Pawnshop, bank,jewelry shop and recovery
-
Minimum weight:
-
5g
-
Testing Time:
-
5 seconds
-
After-sale:
-
3 years warranty and life-long maintain
-
Power supply:
-
Default as European Standard AC 100V - 240V
-
Function:
-
Test density,karat and purity
-
Samples Range:
-
Gold,silver, platinum and other Precious metals
Quick Details
-
Brand Name:
-
WANT
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
K600
-
Product name:
-
gold tester purity detector
-
Measurement range:
-
0.005~300g
-
Density Precision:
-
0.001 g/cm3
-
Application:
-
Pawnshop, bank,jewelry shop and recovery
-
Minimum weight:
-
5g
-
Testing Time:
-
5 seconds
-
After-sale:
-
3 years warranty and life-long maintain
-
Power supply:
-
Default as European Standard AC 100V - 240V
-
Function:
-
Test density,karat and purity
-
Samples Range:
-
Gold,silver, platinum and other Precious metals
|
Model MZ
|
|
K300
|
K600
|
K1200
|
K3000
|
K151/K152
|
MAY-ENTIRS120
|
||||||
|
Maximum weight
|
|
300g
|
600g
|
1200g
|
3000g
|
150g
|
120g
|
||||||
|
accuracy
|
|
0.005g
|
0.01g
|
0.01g
|
0.01
|
0.001
|
0.0001
|
||||||
|
Minimum weight
|
|
4g
|
5g
|
5g
|
5g
|
2g
|
1g
|
||||||
|
Density resolution
|
|
0.001g/cm3
|
|
|
|
0.0001g/cm3
|
|
||||||
|
Measuring time
|
|
5 seconds
|
|
|
|
|
|
||||||
|
Testing board
|
|
Completed high-capacity plastic testing board
|
|
|
|
|
|
||||||
|
Measuring type
|
|
Traditional gold and platinum jewelry, bracelet, ring, large bullion, craft etc.
|
|
|
|
|
|
||||||
|
Gold
moda
|
Display k value
|
Completed high-capacity plastic testing board
|
|
|
|
|
|
||||||
|
|
|
Measuring type
|
|
|
|
|
|
||||||
|
|
|
Traditional gold and platinum jewelry, bracelet, ring, large bullion, craft etc.
|
|
|
|
|
|
||||||
|
|
Display purity
|
The purity percentage of mixture of gold, silver, and copper;
|
|
|
|
|
|
||||||
|
|
|
The purity percentage of mixture of gold and copper;
|
|
|
|
|
|
||||||
|
|
|
The purity percentage of mixture of gold and silver;
|
|
|
|
|
|
||||||
|
|
K value range
|
9K-24K
|
|
|
|
|
|
||||||
|
Platinum moda
|
Copper and Silver
|
Cycle setting (default 7:3)
|
|
|
|
|
|
||||||
|
|
Display value
|
PT percent, density value, volume
|
|
|
|
|
|
||||||
|
|
PT value range
|
Pt 600-pt 1000
|
|
|
|
|
|
||||||
|
Other precious metals
|
Function
|
Only for DA series and DE series: measure the purity percenrage of main materials in two kinds of mixture
|
|
|
|
|
|
||||||
|
|
Display value
|
Only for DA series and DE series: density value, volume, content percentage
|
|
|
|
|
|
||||||
|
|
Setting
|
Only for DA series and DE series: density value of main materials and secondary materials setting
|
|
|
|
|
|
||||||
|
Measuring container
|
|
Completed injection forming transparent professional measuring tank
|
|
|
|
|
|
||||||
|
Parameter setting
|
|
Water temperature setting, measuring medium density setting
|
|
|
|
|
|
||||||
|
Correction method
|
|
Auto calibration with one key, auto detection
|
|
|
|
|
|
||||||
|
Output method
|
|
Output and print testing data conveniently with standard communication interface of RS-232C
|
|
|
|
|
|
||||||
|
Main features
|
|
Simple operation, digital display, accurate measuring, stable, durable
|
|
|
|
|
|
||||||
Principle:
According to the buoyancy method of Archimedean principle, can show gold karat, density and purity% rapidly and accurately.
Features and Functions:
1. Just two simple steps,the purity of precious metals and gold karat can be showed rapidly and accurately.No stains and scratches left on gold after testing. Needn't use the sulfuric acid solution to test the standard samples.
2.The gold K number and density, platinum Pt value and density can be accurately measured in only 5 seconds.Directly and circularly show the gold karat (including gold-cop.per-silver, gold-silver, gold-copper), gold purity%(including gold-copper-silver, gold-silver, gold-copper) .
3.More intuitive and more rapid to identify gold authenticity. It adopt special software design according to market demand which enable users to set the upper and lower limits of K number and Pt value.When the K value of testing gold is more than 24K, the instrument will display HI. When K value less than 12K, LO is displayed.
4. With the mixture proportion function, it can test other precious metals, such as: platinum, silver, palladium, copper, rhodium...and so on
5.Adopting a light and thin stainless steel can reduce the error caused by the buoyancy of the wire.
6. Adopting the design of big tank, it can decrease the inaccuracy caused by supporting wire's buoyancy
7. Only applicable to solid metal sample which can be inlayed with gem stones . It can also be used as a precision electronic balance.
8.Can't test the samples inlaid precious stones and hollow samples. It can be used as general balance.Standard
Application:
Jewelry industry, gold and precious metals research lab, jewelry shop, bank, pawn shops.
Precious Metals Research Center Gold And Jewelry Factory and Shop
Standard Accessories:
Notice:The printer is optional accessory
Gold Measuring Procedure:
Step 1:
Place gold on test board to measure weight in air,and then press MEMORY button to memory.
tep 2:
Place the gold into water to measure weight in water,and then press MEMORY button to memory. Density value is displayed.
Results:
CS.:Gold karat(unit:k)
Press MENU
Press MENU agian
CSP.:purity%(unit:%)
