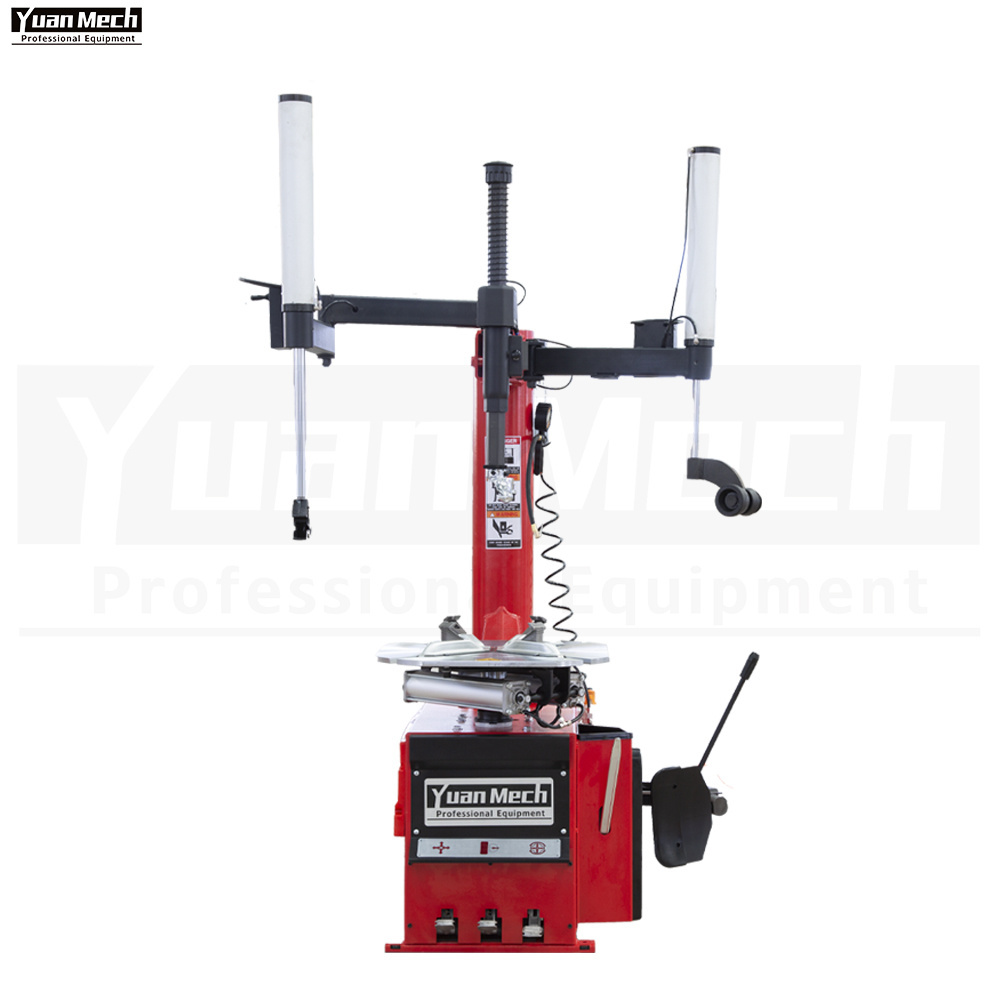

Automatic Tire Changer YuanMech C9552 Double Helper Arms 10-22

Automatic Tire Changer YuanMech C9552 Double Helper Arms 10-22" Tyre Changer with Swing Arm Design

FOB Reference Price: Get Latest Price

≥1 Pieces

US $711

≥24 Pieces

US $672

≥52 Pieces

US $621

≥80 Pieces

US $591

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: YuanMech

Model Number:: C9552

Warranty:: 14 Months

Product Name:: Tire changer

Certification:: CE Approved

Working Pressure:: 8-10bar/117-145psi

Outside clamping:: 10-22"

Inside clamping:: 13-24"

Max. wheel width:: 3-15"

Max. wheel diameter:: 1080mm(42'')

Bead breaker force:: 2500kg

Color:: Customized Color Acceptable

Weight machine:: N.W:245kg G.W:270kg

Quick Details

Motor Power:: 0.75kW / 1.1kW

Operating Pressure:: 8-10 bar/ 117-145 psi

Power Supply:: 110V/220V/240V/380V/415V 50Hz/60Hz

Place of Origin:: Liaoning, China

Brand Name:: YuanMech

Model Number:: C9552

Warranty:: 14 Months

Product Name:: Tire changer

Certification:: CE Approved

Working Pressure:: 8-10bar/117-145psi

Outside clamping:: 10-22"

Inside clamping:: 13-24"

Max. wheel width:: 3-15"

Max. wheel diameter:: 1080mm(42'')

Bead breaker force:: 2500kg

Color:: Customized Color Acceptable

Weight machine:: N.W:245kg G.W:270kg

Products Description

Advantage 1			High-Strength
Advantage 2			High-Effeiciency
Advantage 3			User Friendly
Advantage 4			Cost Effective
Advantage 5			Quality Assurance
Advantage 6			CE Approved

A scientific dimensional, hardened stainless steel mount and demount head reducing stress on beads during all tire changing operations.

1.Multi-angle blade guarantees the bead breaking job precise and always safe on the tire bead.

2.Powerful and efficient bead breaking arm.

Conveniently-placed foot pedals that give you precise control over every step of the changing process.

1.Demount head has plastic protectors to limit damage to wheels.

2.The distance between hex shaft and its bushing can be decreased to prevent damage to the rim and tire.

Scientifically arranged components. The internal of your tire changer will always be clean and organized to extend the life of your equipment.

Industrial-grade pneumatic control valves constructed with High-performance seals and self-lubricating piston guides, help make your tire changer stronger and longer-lasting.

The hex shaft is pneumatically locked, make the work efficient.

The right side helper arm can be locked to swing arm. And the lock can be released pneumatically.

1.The power helper arms will safely secure the bead of the tire, moving along with the activated turntable. The bead will almost always seat without a struggle. 2.Traveling left side helper arm has drop-center tool. 3.The right side helper arm has double pressing rollers to adapt to various tires.

Independently controlled helper arms.
