Owon XDM1241 Rechargeable 55000 Counts High Accuracy True RMS Universal Meter Digital Multimeter

Owon XDM1241 Rechargeable 55000 Counts High Accuracy True RMS Universal Meter Digital Multimeter

Features:
- Multiple Measurements: DC voltage / current measurement, True RMS AC voltage / current measurement, frequency, resistance, capacitance, diode on-off test, continuity and temperature.
- TFT LCD Screen: 3.5-inch 480 x 320 high resolution TFT LCD screen with backlight, 55,000 counts, DC voltage accuracy up to 0.05%, dual line display supported(AC voltage or current and frequency), providing a clear and precise display.
- Fast Measurement: up to 65 readings per second, fast & accuracy.
- User-friendly Interface: with an easy-to-use interface that displays results in form of a table, you can access, store, process and manage your data.
- Rechargeable Digital Multimeter: built-in with large capacity lithium battery, supports multiple power supply methods to extend the measurement time duration, making onsite measurement possible.
- Data Record Function: including manual record and auto record. Both records share a table of data stored in internal storage. The maximum number of recorded points is 1,000, the auto recording time interval can be set from 15ms to 9999s. After collecting the data, it can be exported to your computer, and you can read and process the recorded data with the computer.
- Math Function: the multimeter can do calculations for you (relative, max. min. average, dBm), saving time and effort.
- Light Weight & Small Size: measured size in 7.9*3.4*2.5 inch,  and weighted only 16.6oz(470g), the desktop multimeter with diverse functions is good-looking, powerful and portable for test work.
- Temperature Measurement: it can cooperate with K-type temperature probe(NOT included) for temperature measurement, the temperature display supports ℃(Celsius), ℉(Fahrenheit), K(Kelvin). Built-in thermocouple cold junction compensation.

Specifications:
- Material: ABS
- Display: 3.5-inch TFT LCD (480*320 resolution)
- Max. Display: 55,000 counts
- DC Voltage: 50mV/500mV/5V/50V/500V/1000V
- True RMS AC Voltage: 500mV~750V
- DC Current: 500μA/5000μA/50mA/500mA/5A/10A
- True RMS AC Current: 500μA~500mA, 5A~10A
- Resistance: 500Ω/5kΩ/50kΩ/500kΩ/5MΩ/50MΩ
- Frequency: 10Hz~60MHz
- Capacitance: 50nF~500uF, 5mF~50mF
- Diode: 3V
- Continuity: 1000Ω
- Temperature: K type, PT100 (K-type temperature probe is NOT included)
- Data Logging Interval: 15ms~9999.999s
- Data Logging Length: 1,000 points
- Battery: 2 x 3.7V 2200mAh
- Item Size: 200 x 86.5 x 64mm / 7.87 x 3.41 x 2.52in
- Item Weight: 619g / 21.86oz
- Package Weight: 819g / 28.89oz
- Package Size: 24.5 x 17 x 8cm / 9.65 x 6.69 x 3.15in

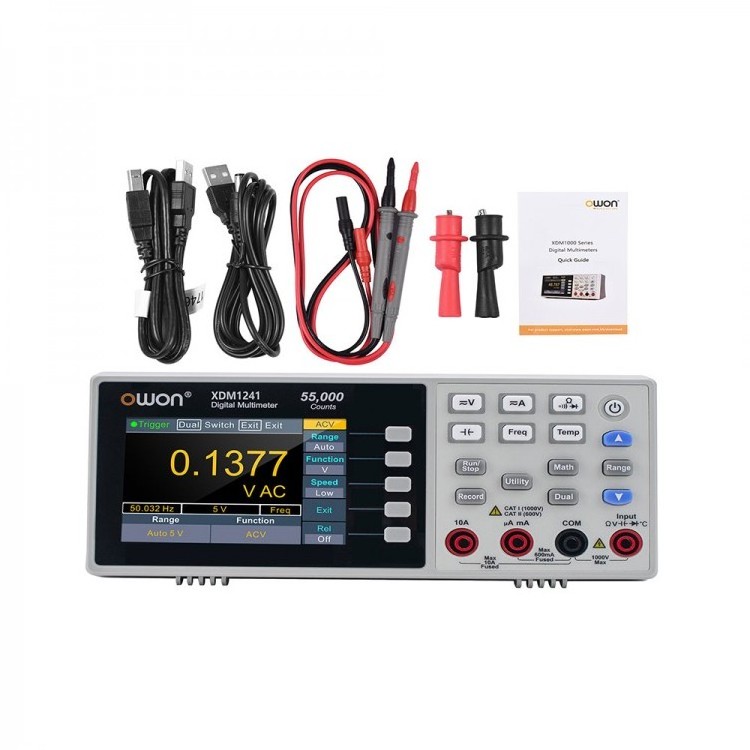

Package Included:
- 1 x Digital Multimeter
- 1 x Pair of Test Lead
- 2 x Alligator Clip
- 1 x USB Data Cable
- 1 x USB to DC Cord
- 1 x Quick Guide (English)

Detail photo
