Quick Details
-
Warranty of core components:
-
/
-
Core Components:
-
/
-
Place of Origin:
-
China
-
Weight:
-
10 KG
-
Printing Method:
-
Dye Sublimation (Direct-to-Card)
-
Accepted Card Size:
-
CR80 (53.98*85.6mm)
-
Accepted Card Thickness:
-
0.25-1.00mm (10-40mil)
-
Accepted Card Type:
-
PVC or polyester cards with polished PVC finish
-
Input Hopper Card Capacity:
-
100 cards (0.76mm/30mil)
-
Output Hopper Card Capacity:
-
50 cards (0.76mm/30mil)
-
Memory:
-
50 cards (0.76mm/30mil)
-
Display:
-
LCM with multi-language supported
-
Operation System:
-
WinXP, Vista,Win7,Win8,Win10 Mac OS X 10.6 or above)
-
Certificatation:
-
FCC,CE,CCC,cTUVus
Quick Details
-
Video outgoing-inspection:
-
/
-
Machinery Test Report:
-
/
-
Marketing Type:
-
/
-
Warranty of core components:
-
/
-
Core Components:
-
/
-
Place of Origin:
-
China
-
Weight:
-
10 KG
-
Printing Method:
-
Dye Sublimation (Direct-to-Card)
-
Accepted Card Size:
-
CR80 (53.98*85.6mm)
-
Accepted Card Thickness:
-
0.25-1.00mm (10-40mil)
-
Accepted Card Type:
-
PVC or polyester cards with polished PVC finish
-
Input Hopper Card Capacity:
-
100 cards (0.76mm/30mil)
-
Output Hopper Card Capacity:
-
50 cards (0.76mm/30mil)
-
Memory:
-
50 cards (0.76mm/30mil)
-
Display:
-
LCM with multi-language supported
-
Operation System:
-
WinXP, Vista,Win7,Win8,Win10 Mac OS X 10.6 or above)
-
Certificatation:
-
FCC,CE,CCC,cTUVus

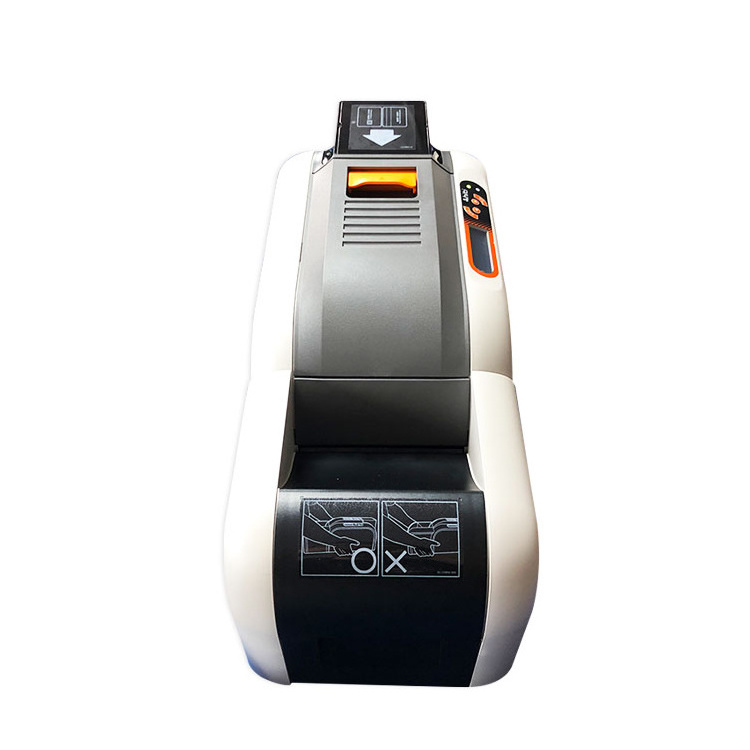

Single Dual-Side HITI CS200e Plastic PVC Smart ID Card Printer for Student Member
Hiti CS-200e Thermal Card Printer for Plastic PVC ID Card CR80
Productivity and Versatility Ideal Solution for ID Card Issuance
.High Speed Printing
.Uptime Increasing with Less Staff Interruption
.Low Noise in Service
.Wide-range Optional Modules
.Intuitive User Interface
Specifications
|
Model Name |
CS-200e |
|
Print Method |
Dye Sublimation(Direct-to-Card) |
|
Resolution |
300dpi continuous tone |
|
Print Ribbon |
.YMCKO 400 PRINTS .1/2 panel YMCKO 560 prints .YMCKOK 330 prints .KO 500 prints .Resin black 1000 prints |
|
Print Speed |
.Approx.21 sec for YMCKO .Approx.4.5sec for a resin black |
|
Accepted Card Size |
CR-80(53.98*85.6mm) |
|
Accepted Card Thickness |
0.25-1.00mm(10-40mil) |
|
Accepted Card Type |
PVC or polyester cards with polished PVC finish |
|
Input Hopper Card Capacity |
100 cards(0.76mm/30mil) |
|
Output Hopper Card Capacity |
50 cards(0.76mm/30mil) |
|
Memory |
64MB |
|
Display |
LCM with multi-language supported |
|
Operation System |
WinXP,Vista,Win7(32/64bit),Win8(32/64bit),Win10 Mac OS X 10.6 or above) |
|
Interface |
USB2.0,Ethernet(Optional Module) |
|
Bundle Software |
CardDesiree CS (Windows-base only) |
|
Power |
AC Adapter DC 24.5V/4.08A) |
|
Weight |
4.9kg/10.8lbs(Ribbon and module excluded) |
|
Dimension(W*H*D) |
198*204*354mm/7.8*8.03*13.94 inch |
|
Certificatations |
FCC,CE,CCC,cTUVus |
|
Optional Accessories |
.Contact smart IC card encoding module .Contactless(RFID) encoding module ISO14443A,ISO14443B,ISO15693 .Magnetic stripe card encoding module ISO7811(Hi-co & Low-co) .Flipper module(For dual-sided printing) .High capacity input hopper(400 cards loader) .Ethernet TCPIP connection module .Cleaning roller (Dust arrester excluded) Cleaning Roller A pack contains 4rollers. 4packs in carton |
Specifications are subject to change without prior notice
Card Productivity management software
.Friendly Template Design Interface
.Convenient Database Connection
.Batch Print Management
.Superb Photo Management
Standard Export Wooden Box/Carton
