Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OPTO-EDU
-
Model Number:
-
A41.3405
-
Main Usage:
-
For Orthopedics
-
Eyepiece:
-
WF12.5x
-
Head:
-
Dual Binocular
-
Magnification:
-
5 Steps 4x,6x,10x,16x,25x
-
View Field:
-
Dia.50~9mm
-
Max Resolution:
-
112 LP/mm
-
Objective:
-
F=200mm
-
W.D.:
-
170mm
-
Control:
-
6 Functions Foot Switch
-
Stand:
-
Four Wheels Moving Stand
Quick Details
-
Warranty:
-
3 years
-
Theory:
-
Operating Microscope
-
Drawtube:
-
Binocular
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OPTO-EDU
-
Model Number:
-
A41.3405
-
Main Usage:
-
For Orthopedics
-
Eyepiece:
-
WF12.5x
-
Head:
-
Dual Binocular
-
Magnification:
-
5 Steps 4x,6x,10x,16x,25x
-
View Field:
-
Dia.50~9mm
-
Max Resolution:
-
112 LP/mm
-
Objective:
-
F=200mm
-
W.D.:
-
170mm
-
Control:
-
6 Functions Foot Switch
-
Stand:
-
Four Wheels Moving Stand
|

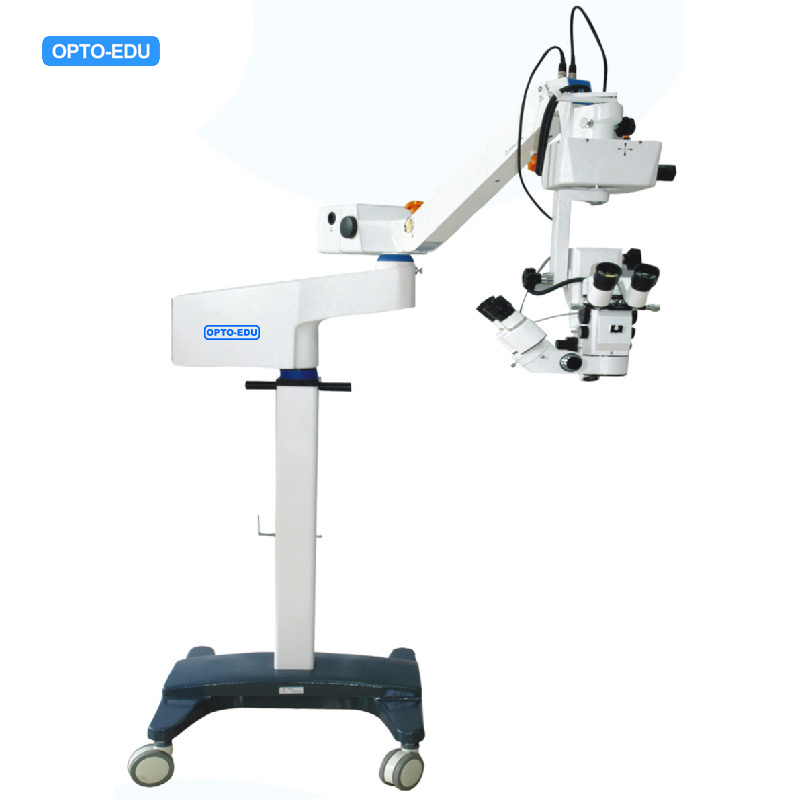

A41.34 Series Surgical Operation Microscope
|
|
|
|
|||
|
A41.34 series Operating Microscope, is Best Choice for Ophthalmology Surgery, with special designed Retina Protect Device, Red
Reflex Intensifier, Filter For Infrared & Ultraviolet Ray. This series has different price & function level for your choice: |
|
|
|
|||
|
A41.3403 is basic model with one binocular head, 3 steps lens 5.3x, 8x,12x, 2 functions foot switch.
|
|
|
|
|||
|
A41.3405 is middle level model, it has dual binocular head, support 2 people work together, 5 steps lens 4x,6x,10x,16x,25x, and 6
functions switch to control XYZ move & zoom. |
|
|
|
|||
|
A41.3421 is the highest model in this series, with motorized zoom 4.5x~25x objective, coaxial 12V100W halogen cold light, 6°+0°
coaxial light, ≥35000 Lux. It also has 26° oblique light with can be used as slit lamp, the slit width can be adjusted, slit direction can rotate 360°。 |
|
|
|
|||
|
Features:
|
|
|
|
|||
|
--Special For Ophthalmology: Retina Protect Device, Red Reflex Intensifier, Filter For Infrared & Ultraviolet Ray
|
|
|
|
|||
|
--One or Dual Binocular Head Eyepiece WF12.5x, Main Head 0~45° Inclined, Assistant Head 45° Inclined
|
|
|
|
|||
|
--5 Steps Manual Zoom or Continuous Zoom Body, Optional Beam Splitter & CCD Camera Adapter
|
|
|
|
|||
|
--Standard Objective F=200mm, W.D.170mm, With 2, 6, 8 Functions Foot Switch For XY Move, Z Focus and Zoom
|
|
|
|
|||
|
--6°+0° Coaxial Halogen Cold Light ≥35000 Lux, 25° Oblique Light ≥30000 Lux Can Work As Slit Lamp
|
|
|
|
|||
|
|
A41.3403
|
A41.3405
|
A41.3421
|
|||
|
Main Usage
|
For Orthopedics
|
|
|
|||
|
Eyepiece
|
WF12.5x
|
|
|
|||
|
Head
|
One Binocular,
|
Dual Binocular, Opposite In 90°/180°,
|
Dual Binocular, Opposite In 90°,
|
|||
|
|
Diopter Adjustable ±6D
|
Diopter Adjustable ±6D
|
Diopter Adjustable ±6D
|
|||
|
Main Head
|
Inclined 45°,IPD 50~70mm
|
Inclined 0-45°, IPD 50~70mm
|
Inclined 0-60°, IPD 50~70mm
|
|||
|
Magnification
|
3 Steps
|
5 Steps
|
Motorized/Manual Zoom
|
|||
|
|
5.3x,8x,12x
|
4x,6x,10x,16x,25x
|
4.5x~25x
|
|||
|
View Field
|
Dia.37,25,16.7mm
|
Dia.50~9mm
|
Dia.46~8.5mm
|
|||
|
Max Resolution
|
100 LP/mm
|
112 LP/mm
|
119 LP/mm
|
|||
|
Assistant Head
|
/
|
Inclined 45°, IPD 50~70mm
|
Inclined 45°, IPD 50~70mm
|
|||
|
Magnification
|
/
|
3 Steps 6x,10x,16x
|
3 Steps 6x, 10x, 16x
|
|||
|
Objective
|
F=200mm
|
F=200mm,
|
F=200mm
|
|||
|
|
|
Optional F=250mm, 300mm
|
|
|||
|
W.D.
|
190mm
|
170mm
|
170mm
|
|||
|
Control
|
2 Functions Foot Switch,
|
6 Functions Foot Switch,
|
8 Functions Foot Switch,
|
|||
|
|
Control Z Focus
|
Control X/Y Move, Z Focus
|
Control X/Y Move, Z Focus, Zoom
|
|||
|
|
Z Focusing Range 30mm
|
XYZ Moving Speed 2mm/s
|
XYZ Moving Speed 2mm/s
|
|||
|
|
|
XYZ Moving Range 50mm
|
XYZ Moving Range 50mm
|
|||
|
Stand
|
Four Wheels Moving Stand
|
Four Wheels Moving Stand
|
Four Wheels Moving Stand
|
|||
|
|
Max Extended Length 870mm
|
Max Extended Length 1040mm
|
Max Extended Length 1230mm
|
|||
|
|
Height Adjustable 700~1100mm
|
Height Adjustable 850~1350mm
|
Height Adjustable 880~1420mm
|
|||
|
Illumination
|
Coaxial 12V100W Halogen Cold Light, 6°+0° Coaxial Light, ≥35000 Lux
|
|
|
|||
|
|
/
|
25° Oblique Light, ≥30000 Lux,
|
26° Oblique Light, ≥30000 Lux,
|
|||
|
|
|
Can Used As Slit Lamp
|
Can Used As Slit Lamp
|
|||
|
Power Supply
|
AC110V/220V Optional, 120W
|
AC110V/220V Optional, 300W
|
AC110V/220V Optional, 170W
|
|||
|
Packing
|
1 Cartons Total G.W 45Kg,
|
6 Cartons Total G.W 207Kg,
|
6 Cartons Total G.W 205Kg,
|
|||
|
|
Volume 0.26CBM
|
Volume 1.02CBM
|
Volume 1.01CBM
|
|||
