Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSCAGO-02-AC
-
Model:
-
CSCAGO-02 -AC
-
Power Supply:
-
AC220V±10V 50HZ,AC110V±10V, 60Hz
-
Electric motor:
-
AC220/110V
-
Current:
-
1.5A
-
Absorbeb power of motor:
-
320
-
Max leaf length:
-
4.0m
-
Max gate weight:
-
400kg
-
Motor speed:
-
14S/90degrees
-
Thrust:
-
250nm
-
Protection class:
-
IP45
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSCAGO-02-AC
-
Model:
-
CSCAGO-02 -AC
-
Power Supply:
-
AC220V±10V 50HZ,AC110V±10V, 60Hz
-
Electric motor:
-
AC220/110V
-
Current:
-
1.5A
-
Absorbeb power of motor:
-
320
-
Max leaf length:
-
4.0m
-
Max gate weight:
-
400kg
-
Motor speed:
-
14S/90degrees
-
Thrust:
-
250nm
-
Protection class:
-
IP45
Product Paramenters
|
Model
|
CSCAGO-02-AC
|
|
Power Supply
|
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
|
|
Electric motor
|
AC220/110V
|
|
Current
|
1.5A
|
|
Absorbeb power of motor
|
320
|
|
Max leaf length
|
4.0m
|
|
Max gate weight
|
400kg
|
|
Motor speed
|
14S/90degrees
|
|
Rotational speed
|
1800RPM/min
|
|
Thrust
|
250nm
|
|
Running time protection
|
Adjustable
|
|
Rod's max travel
|
/
|
|
Auto closing delay time
|
programmable (from 0 to 99 seconds)
|
|
Operating Temperature
|
-20°C~+70°C
|
|
Relative Humidity
|
≤95%, No Condensation
|
|
Protection class
|
IP45
|
|
Application
|
home automation
|
|
limit switch
|
with limit switch,
|
|
condenser
|
8F(AC220V),25uf(AC110V)
|
|
Door opening angle
|
90°,100°,110°,120°
|
|
Packing
|
40kg,
2 motor in 2 cartons:490*23*300mm,
2 arms in 2 carton:600*150*80mm,
1 control panel in 1 carton:
|
Details Images
Product Description
Advantages and Performance
1.Fully secure and reliable system To the larger gates , the use of security with an irreversible motor , so no need of electric
locks , when power down , the release device may be manually controlled the door . Release handle with a key , safe and reliable .
2.Flexible installation , easy adjustment C2 structural design rigorous ,demanding , but easy and quick installation . Crank-type
design for the size requirements have great flexibility in mounting .According to the occasion you can also use the leaner one ,C2
is very powerful , more suitable for heavy doors . 3.Innovative Technology
C2 comes with built -in mechanical internal motor
stops without another gate stops ; do not need to apply electric locks , motors are equipped with accurate parked in open and
closed end side of the limit switch for more convenient .
4.Reliable quality
Chisung gate control operation system has
indisputable advantage , and use high quality waterproof anti-corrosion material ,ensure long term use .
1.Fully secure and reliable system To the larger gates , the use of security with an irreversible motor , so no need of electric
locks , when power down , the release device may be manually controlled the door . Release handle with a key , safe and reliable .
2.Flexible installation , easy adjustment C2 structural design rigorous ,demanding , but easy and quick installation . Crank-type
design for the size requirements have great flexibility in mounting .According to the occasion you can also use the leaner one ,C2
is very powerful , more suitable for heavy doors . 3.Innovative Technology
C2 comes with built -in mechanical internal motor
stops without another gate stops ; do not need to apply electric locks , motors are equipped with accurate parked in open and
closed end side of the limit switch for more convenient .
4.Reliable quality
Chisung gate control operation system has
indisputable advantage , and use high quality waterproof anti-corrosion material ,ensure long term use .
Packing List
Standard Each kit includes

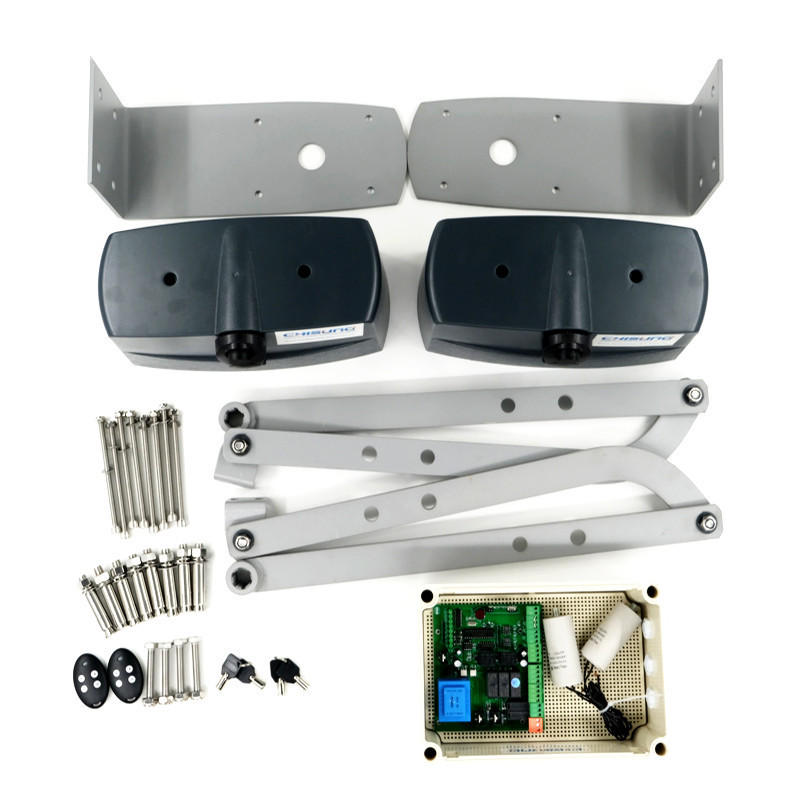

2 motors + 1 control panel(board+box) + 2 remote control +2 capacitors +others mounting brackets.
If you are a wholesaler, you need motors , control panel or remote keys ,spare parts etc.We could sell them separately.
Welcome to consult us, communication is very necessary and very effective.
2 motors + 1 control panel(board+box) + 2 remote control +2 capacitors +others mounting brackets.
If you are a wholesaler, you need motors , control panel or remote keys ,spare parts etc.We could sell them separately.
Welcome to consult us, communication is very necessary and very effective.
