Quick Details
-
Brand Name:
-
AICHENER
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
1240*370*300
-
Weight (KG):
-
100 KG
-
Power (kW):
-
0.75/1.5
-
Applicable Industries:
-
woodworking
-
Product name:
-
JP6 6inch Woodworking Surface Planer & Jointer Wood Planer Machine
-
Motor power:
-
0.75/1.5kw
-
working table length:
-
1/1.2/1.3/1.5/1.8m
-
type:
-
Box or split legs
-
Spindle speed:
-
4400/4800RPM
-
optional:
-
spiral blade
-
Diameter of the Knife Shaft:
-
61mm
-
Keywords:
-
jointer planer
-
Color:
-
white or yellow
-
whatsapp:
-
+8615684053496
Quick Details
-
Max.Planing Depth(mm):
-
3 mm
-
Max.Planing Width(mm):
-
150
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AICHENER
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
1240*370*300
-
Weight (KG):
-
100 KG
-
Power (kW):
-
0.75/1.5
-
Applicable Industries:
-
woodworking
-
Product name:
-
JP6 6inch Woodworking Surface Planer & Jointer Wood Planer Machine
-
Motor power:
-
0.75/1.5kw
-
working table length:
-
1/1.2/1.3/1.5/1.8m
-
type:
-
Box or split legs
-
Spindle speed:
-
4400/4800RPM
-
optional:
-
spiral blade
-
Diameter of the Knife Shaft:
-
61mm
-
Keywords:
-
jointer planer
-
Color:
-
white or yellow
-
whatsapp:
-
+8615684053496
Introduction of JP6 6inch Woodworking Surface Planer & Jointer Wood Planer Machine for Sale
Box type
split legs type
Tailor-made for woodworking masters, saving time and effort.
It is suitable for planing all kinds of wooden boards and artificial boards.
The wood chips are stored and discharged, and the working environment is clean and hygienic.
Simple operation, easy to use,
Metal base with smooth planed surface.
Parameter of JP6 6inch Woodworking Surface Planer & Jointer Wood Planer Machine for Sale
|
Model |
JP6 |
JP8 |
JP801 |
JP601 |
JP802 |
|
Model |
0.75KW |
1.5KW |
1.5KW |
0.75KW |
1.5KW |
|
Working table size |
1215×184mm |
1550×230mm |
1800×230mm |
1030×180mm |
1340×230mm |
|
Spindle speed |
4400rpm/50HZ |
4400rpm/50HZ |
4800rpm/50HZ |
4400rpm/50HZ |
4400rpm/50HZ |
|
Blade number |
3 PCS |
3 PCS |
4 PCS |
3 PCS |
3 PCS |
|
Blade shaft diameter |
ø61mm |
ø65mm |
ø75mm |
ø61mm |
ø65mm |
|
Max. Planing depth |
3mm |
3mm |
3mm |
3mm |
3mm |
|
cast iron planer (G.W./N.W.) |
85kg /76kg |
121kg /105kg |
155kg /141kg |
90kg /83kg |
145kg /130kg |
|
C over weight G.W./N.W.) ) |
37kg /36kg |
38kg/37kg |
42kg/40kg |
|
|
|
Dimension |
L1240×W370×H300mm |
L1860×W440×H300mm |
L1860×W440×H300mm |
L1060×W500×H300mm |
L1340×W610×H330mm |
|
|
L420×W400×H650mm |
L560×W440×H650mm |
L560×W440×H650mm |
|
|

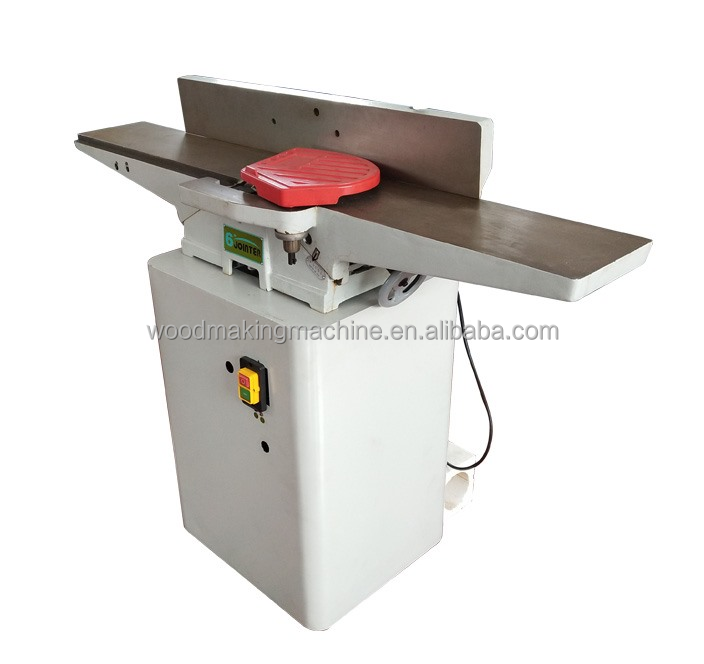

Photo of JP6 6inch Woodworking Surface Planer & Jointer Wood Planer Machine for Sale
Optional : spiral blade
Package and delivery
