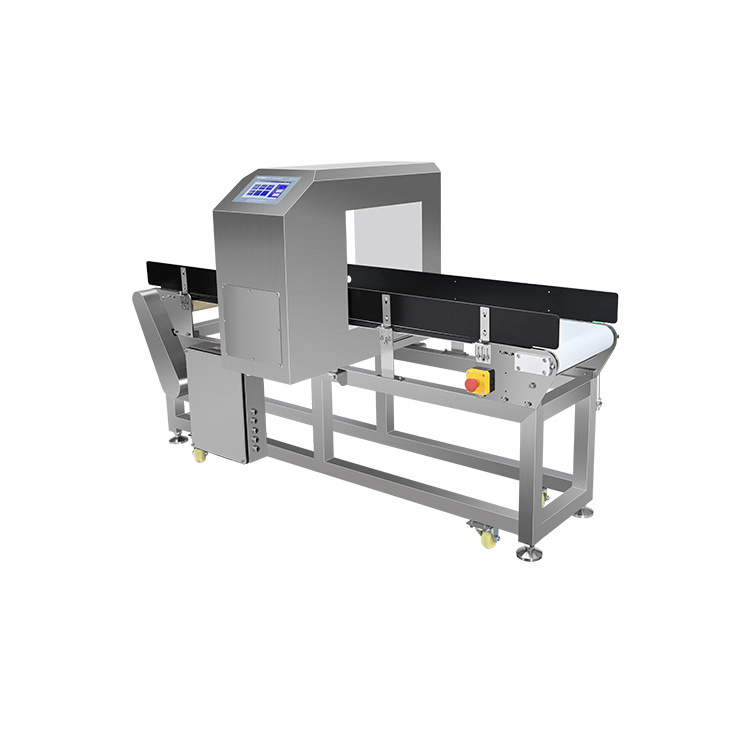

Tunnel Metal Detector for Big Product Conveyor Belt Contamination Detection China

Product Description

The machine can be used in food,pharmaceutical,chemical,textile,garment,plastic,rubber industry etc, applying to detect metal pollution that mixed with products or raw materials.Using this machine can help manufacturers achieve compliance,minimize risk of product recalls and reduce production downtime.

Application(included but not limited to)

Product Detail

Product Feature

1.Operating system has the function of one-button self-learning.Easy to operate and adjust for uesrs.
2.Able to store 100 kinds of product parameters for different products.
3.Adoptting modular design and installation that makes it easy to assemble and disassemeble.
4.Customization can be provided based on product's size,weight and other characteristics to achieve best detection results.
5.The rejection system can be attached to the machine according to the requirements.

Product Parameter

H1: Height from conveyor belt to the ground        DB: Width of tunnel

H2: Height of whole machine                               TB: Passing width

L: Length of conveyor belt                                    DH: Height of tunnel

W: Width of whole machine                                  TH: Passing height

Model	Size of whole machine(mm)				Size of detecting head(mm)				Best sensitivity(mm)
	H1	H2	L	W	DB	TB	DH	TH	Fe	Non-Fe	SUS
3008	700	850	1200	650	300	250	80	50	0.8	1.0	1.5
3010	700	870	1200	650	300	250	100	70	0.8	1.0	1.5
3012	700	890	1200	650	300	250	120	90	0.8	1.0	1.5
3015	700	920	1200	650	300	250	150	120	0.8	1.5	2.0
4510	700	900	1400	750	450	400	100	70	1.0	1.5	2.0
4512	700	920	1400	750	450	400	120	90	1.0	1.5	2.0
4515	700	950	1400	750	450	400	150	120	1.0	1.5	2.0
5010	700	900	1500	850	500	450	100	70	1.0	1.5	2.0
5012	700	920	1500	850	500	450	120	90	1.0	1.5	2.0
5015	700	950	1500	850	500	450	150	120	1.0	1.5	2.0
5020	700	1000	1600	850	500	450	200	170	1.5	2.0	2.5
5025	700	1050	1600	850	500	450	250	220	1.5	2.0	2.5
5030	700	1100	1600	850	500	450	300	270	2.0	2.5	3.0
6030	400	800	1800	950	600	550	300	270	2.5	3.0	3.5
6035	400	850	1800	950	600	550	350	320	3.0	3.5	4.0
6040	400	900	1800	950	600	550	400	370	3.5	4.0	4.5
6050	400	950	2000	950	600	550	500	470	4.0	5.0	5.5
Speed:15-36 meter/min

Notes:

1.All the sensitivity parameters above is on the basis of the test card detected on conveyor belt, the actual sensitivity  will be affected by the product's features and working environment.

2.The above are commom models, the size can be customized according to your requirements.

Company Profile

In 2005, Mr.Chen founded Dongguan Coso Electronic Tech Co.,Ltd, which is the associated company of Beian Technology(Dongguan) Co.,Ltd. He contributes great efforts to the enterprise and really hopes the company has long-term development.

We provide professional customized service in the product fields of industrial metal detector, metal separator, checkweigher, needle detector, X-ray inspection system, weight sorting machine and so on. More than 18 years of technology accumulation and the cooperation with a large number of domestic and foreign customers have given us great confidence.

It would be our honor if we could solve your problem. Welcome your kind inquiry.

Certification

Exhibition

Packing and Delivery

FAQ

1. Q: What’s your mininum order quantity?

A: One set.

2. Q: Do you accept customization?

A: Yes, and it’s one of our advantages.

3. Q: How long is your delivery time?

A:Once we reach an agreement and the payment is received, the production process starts immediately, basically the lead time is 15 days.

4. Q: How about the packing for machine? Would it be easily damaged during transportation?

A: We use standard export wooden case for package which is strong enough for transportation.

5. Q: How about your after-sale service?

A: First, if you don’t know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.

Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.

Third, all of our products have one year warranty. If the core accessories went wrong and can’t be fixed, you can exchange for a new one.

Last, if the problem is extremely serious, we can send engineers to your company to help.
