- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Nordson
-
RFID Card Type:
-
NK-RF120EM:EM-ID 125kHz / NK-RF120MF:Mifare IC 13.56MHz
-
Standard Functions:
-
Buzzer,Double Color LED(Red and Green)
-
Color:
-
Frame plating silver,surface:Grey
-
Power / Current:
-
DC5~16V
-
Output Format:
-
Wiegand 26bits(default)/34bits, RS485/232 can be customized)
-
Material:
-
ABS+PC
-
Output format:
-
Wiegand 26bits(default)/34bits, RS485/232 can be customized)
-
Application:
-
all kinds of access control system
-
Dimension:
-
86*115*18(mm)
-
Weight:
-
0.13kg
Quick Details
-
Frequency:
-
125KHz
-
Protocol:
-
ISO 15693
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
RFID Card Type:
-
NK-RF120EM:EM-ID 125kHz / NK-RF120MF:Mifare IC 13.56MHz
-
Standard Functions:
-
Buzzer,Double Color LED(Red and Green)
-
Color:
-
Frame plating silver,surface:Grey
-
Power / Current:
-
DC5~16V
-
Output Format:
-
Wiegand 26bits(default)/34bits, RS485/232 can be customized)
-
Material:
-
ABS+PC
-
Output format:
-
Wiegand 26bits(default)/34bits, RS485/232 can be customized)
-
Application:
-
all kinds of access control system
-
Dimension:
-
86*115*18(mm)
-
Weight:
-
0.13kg

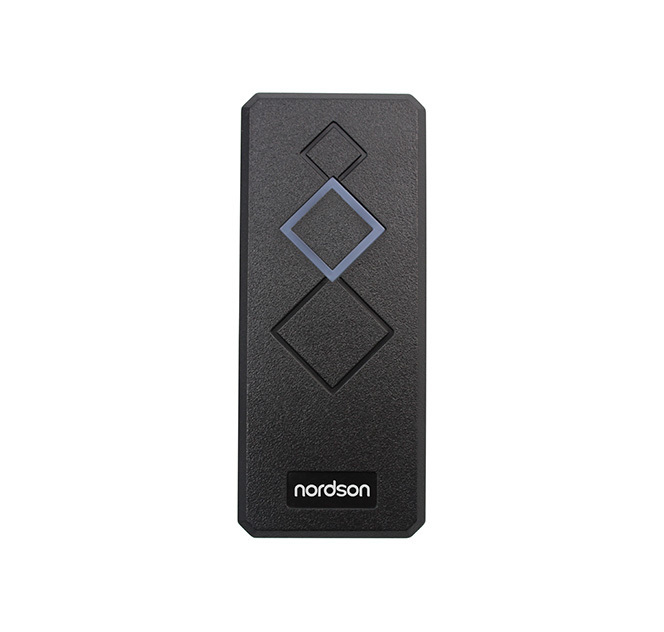

RFID 125kHz 13.56MHz Proximity Card Access Control Reader with Wiegand 26
Overview
1. Read range:5~15 cm for EM-ID card or Mifare card.
2. with Double color LED.
3. with Buzzer.
4. Waterproof IP65,Solid Epoxy potted.
5. Output Format: Wiegand 26bits(default)/34bits,RS485/232 can be customized.
6. Suitable for all kinds of access control system.
2. with Double color LED.
3. with Buzzer.
4. Waterproof IP65,Solid Epoxy potted.
5. Output Format: Wiegand 26bits(default)/34bits,RS485/232 can be customized.
6. Suitable for all kinds of access control system.
Specifications
| Model | NK-RF120 Proximity Card Reader |
| RFID Card Type | NK-RF120EM:EM-ID 125kHz |
| NK-RF120MF:Mifare IC 13.56MHz | |
| Standard Functions | Buzzer,Double Color LED(Red and Green) |
| Output Format | Wiegand 26bits(default)/34bits, RS485/232 can be customized) |
| Reading Time (Card) | ≤300ms |
| Color | Black,White |
| Power / Current | DC5~16V |
| Material | ABS+PC |
| Current | ≤100mA |
| Index of Protection | IP65 |
| Ambient Temperature | -25℃~75℃ |
| Reading Range | 5~15CM |
| Comunication Distance | WG≤100M,RS485≤1200 |
| Size | 86*115*18(mm) |
| Weight | 0.13kg |
