Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
NYY,NAYY,YVV,NYCY,NYRY,
-
Size:
-
10mm2
-
Product name:
-
Copper Core PVC Insulated Electrical Power Cable
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Standard:
-
BS IEC ASTM DIN
-
Package:
-
Steel-wooden Drum
-
Keywords:
-
75mm2 50mm2 10mm2 Copper Cable
Quick Details
-
Insulation Material:
-
XLPE or PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper or Aluminium
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
NYY,NAYY,YVV,NYCY,NYRY,
-
Size:
-
10mm2
-
Product name:
-
Copper Core PVC Insulated Electrical Power Cable
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Standard:
-
BS IEC ASTM DIN
-
Package:
-
Steel-wooden Drum
-
Keywords:
-
75mm2 50mm2 10mm2 Copper Cable

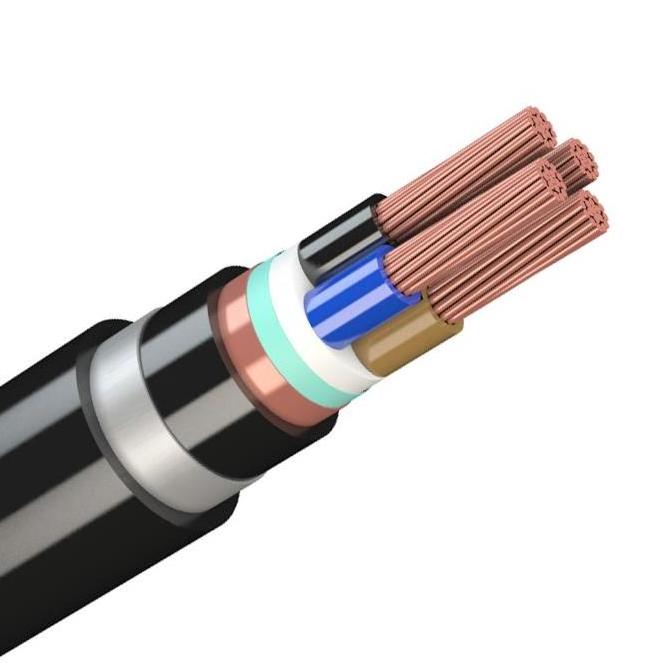

Steel Wire Armoured Cable
NYY,NAYY,YVV,NYCY,NYRY,NA2XY,YE3SV,YE2SHSV,NAYCVVY,NA2XY,N2XY,N2XRY Cable
Voltage:0.6/1kV,3.6/6kV;6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;26/35KV
Conductor:
Solid or stranded Copper/Aluminum
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Circuit Indentation:
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)
-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards:
IEC 60502-1
3. Specification :
|
Type |
Designation |
Application |
|
VV |
Copper conductor ,PVC insulated ,PVC sheathed power cable |
For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
|
VLV |
Aluminium conductor ,PVC insulated ,PVC sheathed power cable |
|
|
VY |
Copper conductor, PVC insulated, PE sheathed power cable |
|
|
VLY |
Aluminium conductor ,PVC insulated ,PE sheathed power cable |
|
|
VV22 |
Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
|
VLV22 |
Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
|
VV23 |
Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable |
|
|
VLV23 |
Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
|
|
VV32 |
Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable
|
For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
|
VLV32 |
Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
|
VV33 |
Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
|
|
VLV33 |
Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |
|
|
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied |
||
4. Nominal Cross-sectional Areas:
1.5 mm 2 , 2.5 mm 2 ,4 mm 2 , 6 mm 2 , 10 mm 2 , 16 mm 2 ,25 mm 2 , 35 mm 2 , 50 mm 2 ,70 mm 2 , 95 mm 2 ,120 mm 2 ,150 mm 2 ,185 mm 2 ,240 mm 2 ,300 mm 2 400 mm 2 500 mm 2 630 mm 2 800 mm 2
5. Production Range:
single core cable from 1.5 mm 2 to 800 mm 2 ,muli-core cable from 1.5 mm 2 to 400 mm 2
6. Operating Characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV 3.6/6KV 12/20KV 18/35KV...
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm 2
The ambient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter.
