Quick Details
-
Brand Name:
-
Brilliant
-
Product name:
-

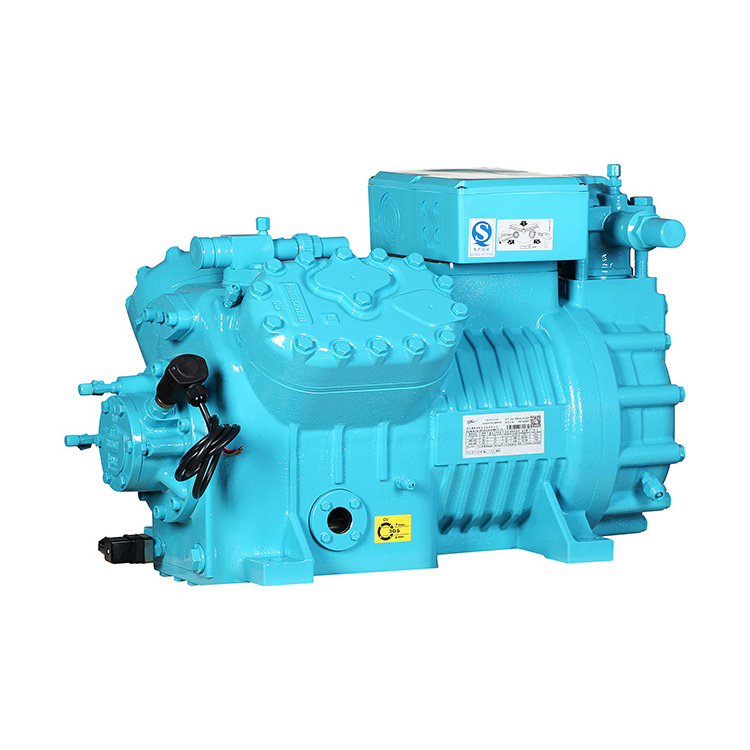

bizer piston semi-hermetic compressor
-
Weight:
-
230kgs
-
KW:
-
10.5kw
-
type:
-
mid-high temperature type
-
Lubrication Style:
-
Oil-less
-
Displacement:
-
48.50m3/h
-
Voltage:
-
380v/3ph/50hz/60HZ
-
MOQ:
-
1 Set
-
power/hp:
-
4*65*42mm
-
Color:
-
blue
Quick Details
-
Type:
-
Refrigeration Compressor
-
Application:
-
Refrigeration Parts
-
Place of Origin:
-
China
-
Brand Name:
-
Brilliant
-
Product name:
-
bizer piston semi-hermetic compressor
-
Weight:
-
230kgs
-
KW:
-
10.5kw
-
type:
-
mid-high temperature type
-
Lubrication Style:
-
Oil-less
-
Displacement:
-
48.50m3/h
-
Voltage:
-
380v/3ph/50hz/60HZ
-
MOQ:
-
1 Set
-
power/hp:
-
4*65*42mm
-
Color:
-
blue
Download the address of the selection software: http://zjblait.com/en/col.jsp?id=103
| Compressor model |
Nominal motor power HP/KW |
Displace-ment (50Hz)m3/h |
Number of Cylinder* Diameter* Stroke mm |
Oil injection volume L |
Power supply
|
Max. operating current A |
Starting current/ rotor locked current. operating current A |
Crankcase Heater (220V) W |
Weight (including freezing oil) Kg |
|
YBF4H- 15.2Z |
15/10.5 |
73.60 |
4*70*55 | 4.5 |
380~420Y /3-/50
400~480Y /3-/60
|
31 | 81/132 | 120 | 183 |
|
YBF4H- 25.2G |
25/18.5 | 73.60 | 4*70*55 | 4.5 | 45 | 116/193 | 120 | 194 | |
| YBF4G-20.2Z | 20/15 | 84.50 | 4*75*55 | 4.5 | 37 | 97/158 | 120 | 192 | |
|
YBF4G- 30.2G |
30/22 | 84.50 | 4*75*55 | 4.5 | 53 | 135/220 | 120 | 206 |
