Quick Details
-
Flow Rate:
-
50L/min,80L/min,140L/min,200-250L/min
-
Warranty:
-
one year
-
Certificate:
-
OIML,CE,ATEX,SIRA,COC,SONCAP,SASO,NRCS,CMC
-
Product Name:
-
Fuel Dispenser
-
Voltage for motor:
-
110V/220V/380V(50/60Hz)
-
Medium:
-
Grand series
-
Pump:
-
Vane pump,Gear pump,Submersible pump,Suction pump
-
Flow meter:
-
Bennett,Tokheim,Tatsuno,Gilbarco,Wayne
-
Nozzle:
-
OPW, Tatsuno, Husky, Healy, Automatic shut-off
-
Hose number:
-
1, 2, 3, 4, 6, 8
-
Lcd display:
-
664, 885, Digital, Mechanical
-
Color:
-
Customized Color
-
Pos/Protocol:
-
ZCHENG,Tatsuno,Gaskit,IFSF,PTS,ITL integrated
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZCHENG
-
Model Number:
-
Grand Series
-
Flow Rate:
-
50L/min,80L/min,140L/min,200-250L/min
-
Warranty:
-
one year
-
Certificate:
-
OIML,CE,ATEX,SIRA,COC,SONCAP,SASO,NRCS,CMC
-
Product Name:
-
Fuel Dispenser
-
Voltage for motor:
-
110V/220V/380V(50/60Hz)
-
Medium:
-
Grand series
-
Pump:
-
Vane pump,Gear pump,Submersible pump,Suction pump
-
Flow meter:
-
Bennett,Tokheim,Tatsuno,Gilbarco,Wayne
-
Nozzle:
-
OPW, Tatsuno, Husky, Healy, Automatic shut-off
-
Hose number:
-
1, 2, 3, 4, 6, 8
-
Lcd display:
-
664, 885, Digital, Mechanical
-
Color:
-
Customized Color
-
Pos/Protocol:
-
ZCHENG,Tatsuno,Gaskit,IFSF,PTS,ITL integrated

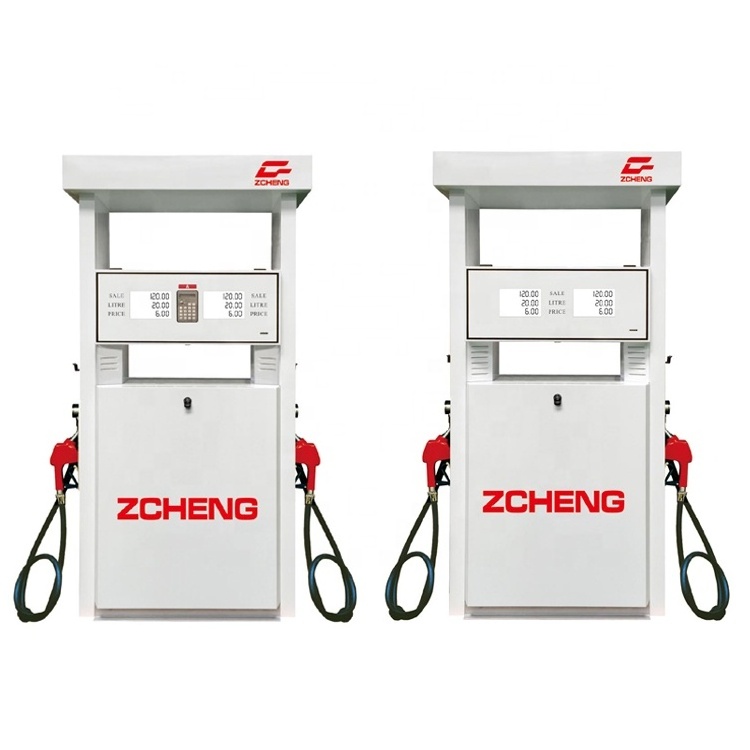

♦ Model of ZCHENG Fuel Dispenser
| model | product | motor | pump | flow meter | nozzle | remark |
| ZC-11111 | 1 | 1 | 1 | 1 | 1 | |
| ZC-11112 | 1 | 1 | 1 | 1 | 2 | alternative |
| ZC-11122 | 1 | 1 | 1 | 2 | 2 | |
| ZC-22222 | 2 | 2 | 2 | 2 | 2 | |
| ZC-22224 | 2 | 2 | 2 | 2 | 4 | alternative |
| ZC-22244 | 2 | 2 | 2 | 4 | 4 | |
| ZC-33336 | 3 | 3 | 3 | 3 | 6 | alternative |
| ZC-33366 | 3 | 3 | 3 | 6 | 6 | |
| ZC-44448 | 4 | 4 | 4 | 4 | 8 | alternative |
| ZC-44488 | 4 | 4 | 4 | 8 | 8 |
Product means different fuel such as petrol, diesel and kerosene.
Alternative means nozzles of same product can't work at the same time.
|
Technical parameter |
|
|
Ambient temperature |
-25°C~ +55°C |
|
Humidity |
≤90% |
|
Flow rate |
5~60L/min or 5~90L/min |
|
nozzle |
Auto shut-off |
|
Suction distance |
6m(Vertical), 50m(horizontal) |
|
Accuracy |
±0.30% |
|
Repeating tolerance |
≤0.15% |
|
Hose |
3m(low hang), 4.5m(high hang) |
|
Inlet pressure |
≥54kPa |
|
Outlet pressure |
≤0.3MPa |
|
Voltage |
110V/220V/380V (50/60Hz) |
|
Power |
1HP(0.75kw) |
|
Noise |
≤80dB(A class) |
|
Unit price range |
0.01~999.99 |
|
single volume range |
0.01~999999.99 |
|
accumulative volume range |
0.01~9999999999.99 |
|
Explosion-proof signal |
ExdmbIIAT3 |
