Usually the cargo will be packed in wood case. some small parts will be packed in carton. and put it in the wood case.
If the large type shreder machine, We will order a container for you, and it is often nude package.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
5000
-
Product name:
-
Shredder machine
-
Blade number:
-
30 pcs
-
Blade thickness:
-
40mm
-
Crushing chamber:
-
1200*800mm
-
Blade diameter:
-
400mm
-
Blade mateiral:
-
Cr12Mov
-
Wearing parts:
-
Blade
-
Spare parts supply:
-
yes
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
huahong
-
Power (kW):
-
74
-
Weight (KG):
-
5000
-
Product name:
-
Shredder machine
-
Blade number:
-
30 pcs
-
Blade thickness:
-
40mm
-
Crushing chamber:
-
1200*800mm
-
Blade diameter:
-
400mm
-
Blade mateiral:
-
Cr12Mov
-
Wearing parts:
-
Blade
-
Spare parts supply:
-
yes
Product Description
Shredder machine introduction and application
Double shaft shredder machine is often used for crushing the unprocessed raw materials and scarp material, making them being smaller pieces. It is widely used in area of
waste plastic, waste rubber, wood, crop straw, scrap metal,hard disk, fiber materil, carpet automobile recycling, waste tire, waste cabl, cans, car shell etc
, this is a quality and reliable equipment in recycling business. It also can crush
hard plastic, such as PP,PE, PVC etc.
Our shredder machine Balde material is Cr12Mov. It is very durable. We can supply blade separately. If you need mobile type shredder machine, we also can make for you.
To give you a responsible quotation, you can inform us the following information:
1).What's the material you are going to crush?
2).What's the feeding size of the material?
3).What's the output size of the final products are you going to achieve?
4).What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
1).What's the material you are going to crush?
2).What's the feeding size of the material?
3).What's the output size of the final products are you going to achieve?
4).What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
|
Technical data of Shredder machine
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Power
(kw)
|
Blade
number
|
Blade thickness(mm)
|
Blade DIA
(mm)
|
Crushing chamber
|
Capacity
(t/h)
|
Dimension
(m)
|
|||||||
|
600
|
2*11
|
20
|
30
|
300
|
600*550
|
0.5-2
|
2.8*1.2*1.8
|
|||||||
|
800
|
2*15
|
20
|
40
|
300
|
800*600
|
1-3
|
3.0*1.2*1.9
|
|||||||
|
1000
|
2*30
|
24
|
40
|
300
|
1000*700
|
1.5-3.5
|
3.5*1.8*2.0
|
|||||||
|
1200
|
2*37
|
30
|
40
|
400
|
1200*800
|
2-5
|
4.0*2.1*2.3
|
|||||||
|
1600
|
2*45
|
40
|
40
|
400
|
1600*900
|
3-7
|
4.5*2.1*2.2
|
|||||||
|
2000
|
2*55
|
50
|
40
|
450
|
1600*900
|
5-15
|
5.5*2.1*2.9
|
|||||||
Shredder machine working principle
The driving force is two motors, there is a spacer between the blades Split Level installation between the blade and the blade installation,and the formation of a mutual shearing force by the motor,so that can shredder the rubbish in the double shaft shredder machine. There is no need to worry that the machine is stucked. If it is stucked. the blade will turn to another direction until the machine is working smoothly.
Shredder machine Main Features
1.Newest shredding technology
2.Low noise and environmental
3.High capacity and durable
4.Blades mateiral is Cr12Mov. It is very toughness.
5.Mobile type shredder supply
6.The Belt between speed reducer and electric motor has been protected by cover.
7.All our machine before leaving our factory will test firstly to ensure that it cam work well.
Electric type shredder
The balde thickness will affect the final discharging size. Please let me know your required outut size, we can customize the blade thickness for you.
Single motor small shredder machine with electric control box. Our machine often didn't include the control box. If you need it, please let me know in advance. Mobile type shredder machine is easy to move, it is convenient. If you want mobile type, we can customize for you.

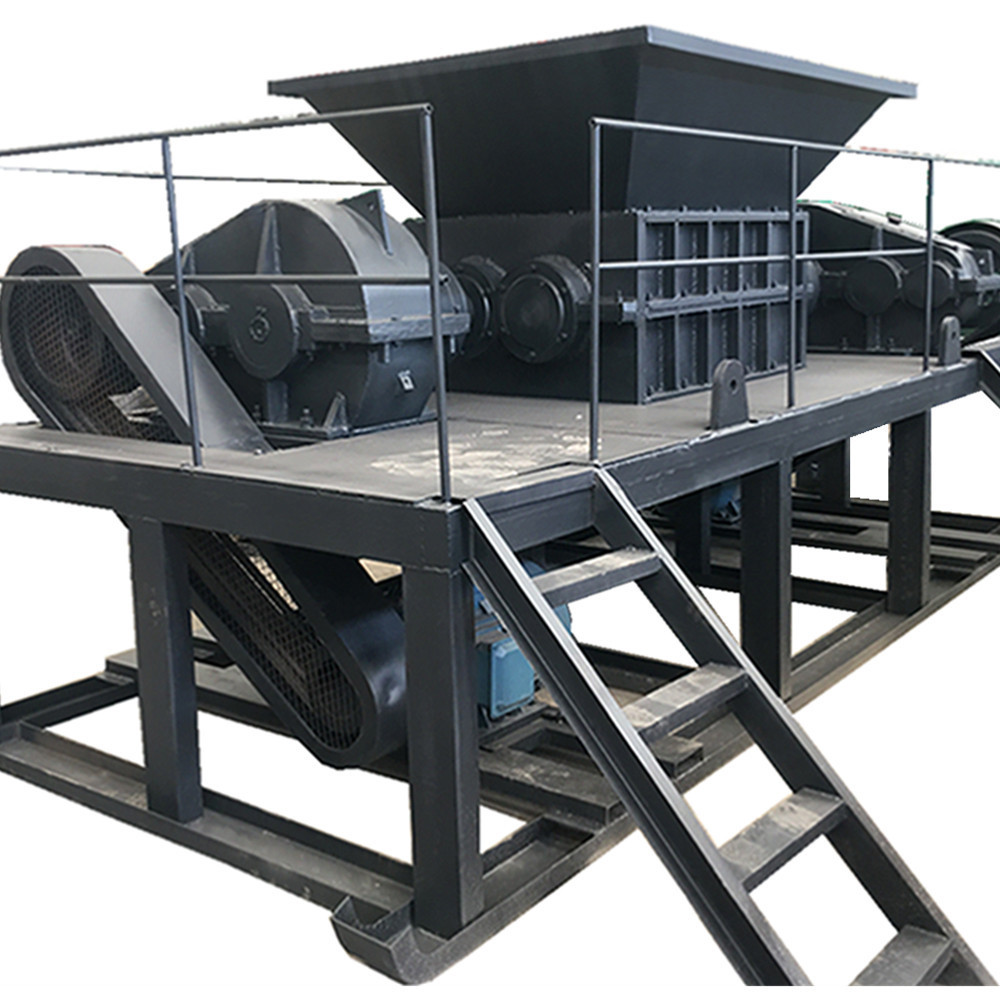

Large Type shredder machine.They can crush large mateial, such as the whole car tire, Hard plastic mateiral, Spring mattress etc. It is convenient to crush large size waste material. If you need the belt conveyor to transport the output mateiral, we can supply.
Detailed Images
Blad material is Cr12Mov. It is very durable. The number and thickness of balce can be customized according to your output size required. If you need more spare balde, we can supply 5 pieces in free. Other more you need to pay.
Machine body: Each shredder has two gearbox and two motors
Bearing and seal: The bearing block using detachable patent registration, it not only quickly remove the knife, knife, bearings and other components, but also conducive to maintain and replace knife tool. Its unique sealing structure barrier to the crushing material and grease contact effectively. Moreover, handling liquid materials can also protect the bearings and gears.
Certifications
Our Machine had been got the ISO9001 and CE certificate approcal. Don't worry about the quality. All our machine supply one year warranty, but exculding the wearing parts. We often export shredder machine to Malaysia, Canada, United States, Thailand, Croatia, Libiya, Uzbekistan etc. We have a lot of experience and our engineer can help to choose the right model for you.
Packing & Delivery
Packing
Shipping
I
f the cargo is suitable for a whole container, it will be shipped by container, if not, it will be deliveried by LCL.
We have developed long-term and excellent relationship with many ocean freight partners, such as APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.
Our Service
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
