Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingchen
-
Voltage:
-
Customized
-
Power:
-
280KW
-
Dimension(L*W*H):
-
3.3m*2.2m*2.5m
-
Weight:
-
15 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
pulp molding machine
-
Color:
-
transparent for pulp molding machine
-
Output paper:
-
sealed paper
-
Capacity:
-
customized
-
Function:
-
Suitable
-
Speed:
-
adjust
-
Raw material:
-
Waste Paper, wood pulp
-
Type:
-
new for paper pulp machine
-
certifications:
-
ISO9001
Quick Details
-
Production Capacity:
-
Other
-
Product Type:
-
pulp machine
-
Processing Type:
-
making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingchen
-
Voltage:
-
Customized
-
Power:
-
280KW
-
Dimension(L*W*H):
-
3.3m*2.2m*2.5m
-
Weight:
-
15 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
pulp molding machine
-
Color:
-
transparent for pulp molding machine
-
Output paper:
-
sealed paper
-
Capacity:
-
customized
-
Function:
-
Suitable
-
Speed:
-
adjust
-
Raw material:
-
Waste Paper, wood pulp
-
Type:
-
new for paper pulp machine
-
certifications:
-
ISO9001
recycled waste paper pulp machine paper pulp molding machine paper making machine price on sales
Description:

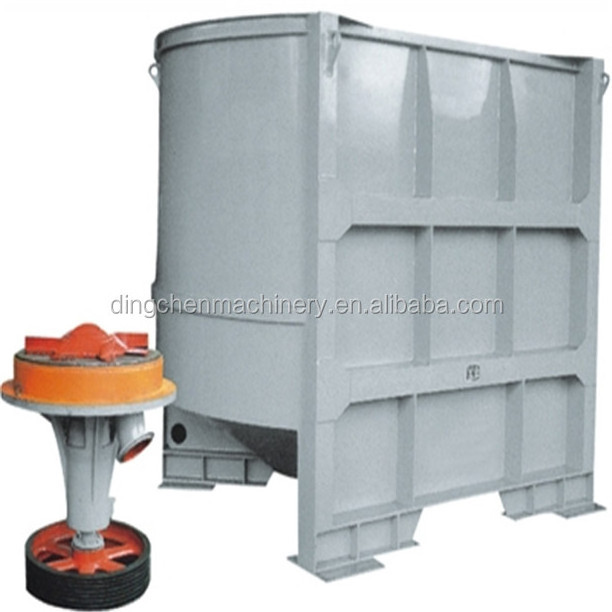

Paper Pulper is used for crushing virgin pulp (slabs or sheets), wastepaper processing, machine broke, deinking and pulp purification. It disintegrates the fiber by the action of mechanical operation. Among the raw materials waste paper processing is significant. Because in waste paper may be contains dust, sand, wire stapler pins, clips, nails, hooks, adhesive tapes, plastic tapes, string, un-dissolved coating and other foreign materials like asphalt wax, plastics etc. Waste paper should be free from these undesirable materials but some may be remains. If these materials mixed with the pulp and move towards into wire section; it must be creates some unwanted problems may be damage wire as well as poor quality paper sheet. Moreover centri-cleaner may be blocked, increase the paper web breaks, reduce the press felt and dryer screen performance. So the pulper has the ability to remove the contaminant.
The operation of pulper may be batch wise or continuous mode. In a batch mode operation it can be control the size, filler, dry strength additives, color etc by add a specific amount of chemicals in pulper. Surfactants are used for stock deinking. The associate chemicals of surfactants are dispersant, anti-foaming, caustic soda, Borax and sodium silicates. Dispersant prevent the ink to deposit onto the fiber; foaming agent reduce foam formation and other three chemicals caustic soda, Borax and sodium silicates enhance the action of surfactants.
Main Function and Features :
| Type | ZDS15 | ZDS20 | ZDS25 | ZDS30 | ZDS35 | ZDS40 | ZDS45 | ZDS50 | ZDS60 | ZDS70 |
| Volume(m³) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| Production(t/d) |
60-110 |
100-160 | 120-200 | 150-250 | 200-320 | 260-370 | 280-400 | 300-450 | 360-520 | 420-600 |
| Consistency(%) | 3-5 | |||||||||
| Power(KW) | 160 | 185 | 250 | 280 | 315 | 355 | 400 | 450 | 560 |
630
|
Machine Shipping and Packing:
1. We use three-ply board pack the machines into standard export wooden case.
2. We will provide you the Fumigation Certificate for free.
3. We Sincerely invite you to visit our factory to inspect the machines before we shipping.
4.Before shipping, we will spend more 2 weeks to test the machines with raw materials to double ensure the machines running stready.
