Quick Details
-
Model Number:
-
SN-DO530
-
DO:
-
0-200ug/L
-
Temp:
-
0-60℃
-
ATC:
-
0-60℃
-
Accuracy:
-
±0.1℃
-
Product name:
-
do meter
-
Certificate:
-
YES
-
Color:
-
Blue
-
MOQ:
-
1 PCS
-
key words:
-
Do Controller Meter
-
Type:
-
Do Controller Meter
Quick Details
-
Warranty:
-
1 year, One Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SINOTESTER
-
Model Number:
-
SN-DO530
-
DO:
-
0-200ug/L
-
Temp:
-
0-60℃
-
ATC:
-
0-60℃
-
Accuracy:
-
±0.1℃
-
Product name:
-
do meter
-
Certificate:
-
YES
-
Color:
-
Blue
-
MOQ:
-
1 PCS
-
key words:
-
Do Controller Meter
-
Type:
-
Do Controller Meter

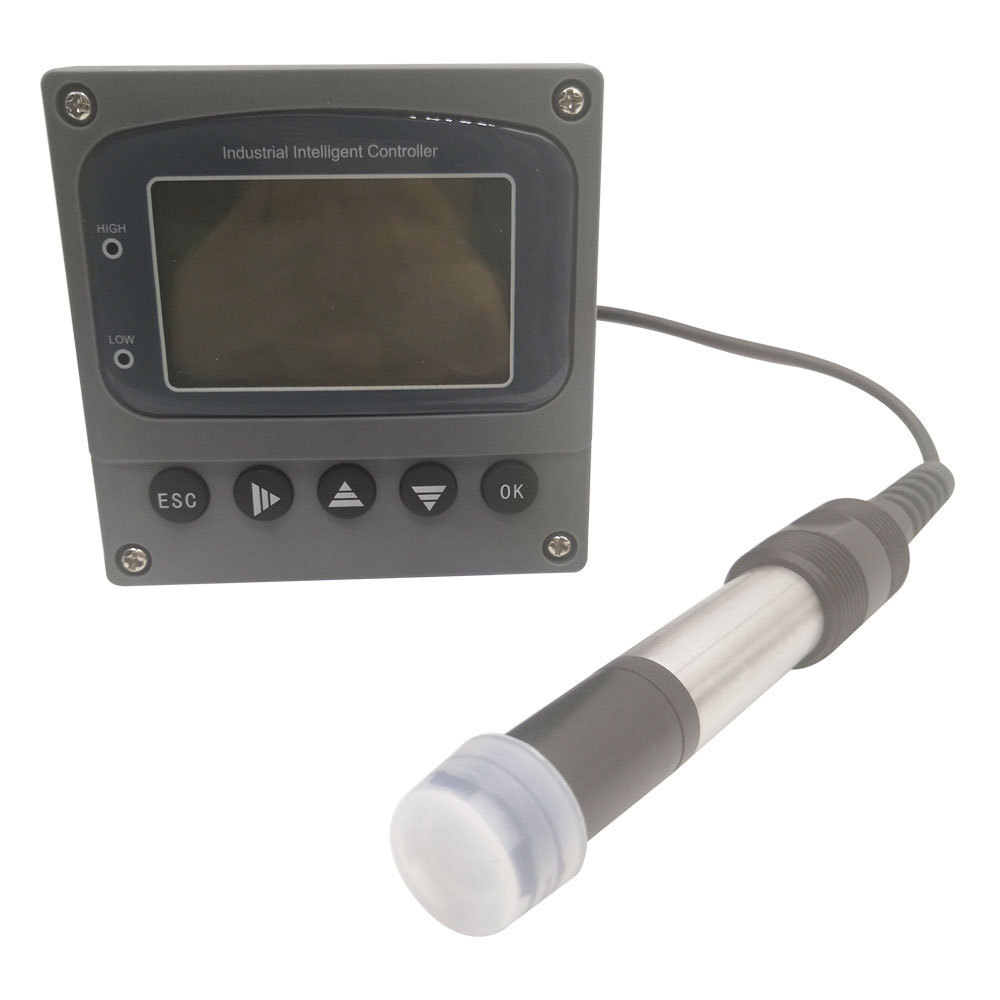

SN-DO530 Do Sensor Probe Dissolved Oxygen Controller Meter
Feature:
1. The large LCD display, English menu operation.
2.Multi-parameter display at the same time: the value of dissolved oxygen,temperature, output current, alarm points, etc. Intuitive and easy to read, and alarm for range over run.
3.Screen displays alarm status and accompanied by a switch ON / OFF signal output
4.Automatic Temperature Compensation: Automatic 0℃ to 60℃
5.Communication function (optional): RS-485 communication interface(MODBUS protocol is partially compatible), 4 to 20 mA current output corresponding to the DO value can be set freely.
6.Notepad: can store 50 measurements, the user can record measurement data.
7.Hysteresis amount can be set freely to avoid frequent switching relay action
8.Watchdog function: to ensure that the instrument will not crash
9.Core devices from famous foreign brands
10.Restore the factory settings. Power-down protection> 10 years
| Model No. | Test item | Measuring range | Resolution | Accuracy | Other Technical data | |
| SN-DO530 | Dissolved oxygen |
0-200.0 ug/L;
0-20.00 mg/L |
0.1ug/L;
0.01mg/L, |
ug/L: ±1.0%FS;
mg/L:±0.5%FS |
Automatic temperature compensation: 0~60°C
Control Interface: two sets of ON / OFF relay contacts, divided into the high point, low alarm signal, optically isolated output. Isolated signal output: Optocoupler isolation to protect , 4~20mA signal output Relay: relay lag set freely, the relay load 10A 220VAC Working conditions: ambient temperature of 0~60°C, relative humidity <= 90% Output load: load <500Ω (0-10mA), load <750Ω (4-20mA) Working voltage: 220V AC, 50/60Hz size:96 x 96 x 115 mm Hole size: 91 x 91mm Weight: 0.9Kg |
|
| Temp | 0.0-60.0°C | 0.1°C | ±0.3°C | |||
