Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
11mm Reset Switch
-
Certification:
-
ROHS REACH ISO9001/14001
-
Dimensions:
-
11mm
-
Operating temperature:
-
-20℃ ~70℃
-
Rotational life:
-
30,000 cycles Min
-
Push-on switch life:
-
20,000 cycles Min
Quick Details
-
Brand Name:
-
Soundwell
-
Model Number:
-
RS11
-
Type:
-
Switch Rotary
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
11mm Reset Switch
-
Certification:
-
ROHS REACH ISO9001/14001
-
Dimensions:
-
11mm
-
Operating temperature:
-
-20℃ ~70℃
-
Rotational life:
-
30,000 cycles Min
-
Push-on switch life:
-
20,000 cycles Min
|
Self-return Switch Model
|
RS11 series
|
|
Push-on switch life
|
20,000 cycles Min
|
|
Rotational life
|
30,000 cycles Min
|
|
Working temperature
|
-20℃ ～70℃
|
|
Contact resistance
|
1Ω Max
|
|
|
|

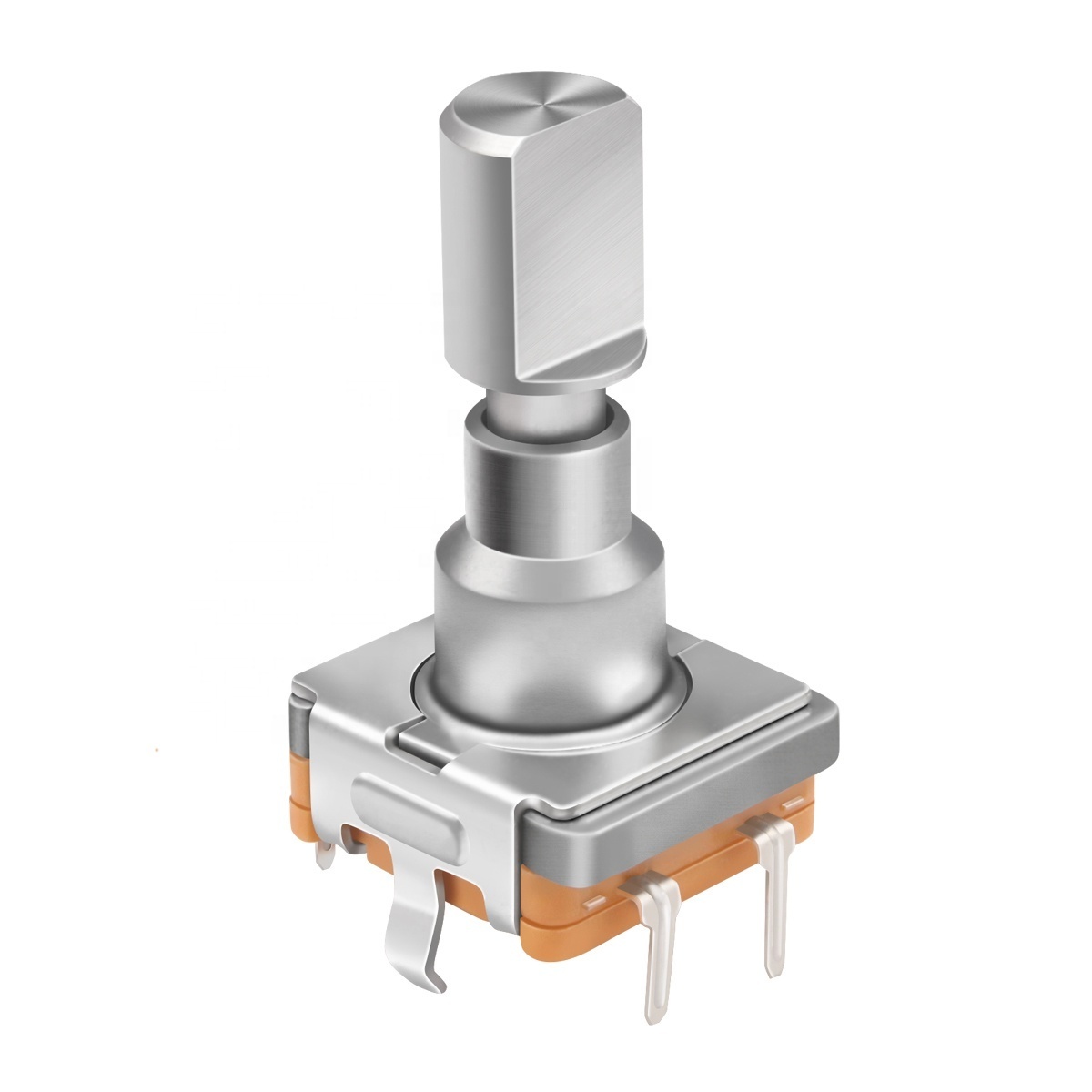

RS11 Self-return Rotary Switch
Main Specifications
|
Dimensions
|
11mm
|
|
|
|
|||
|
Rated power
|
DC 5V 10mA
|
|
|
|
|||
|
Operating temperature
|
-20℃ ～70℃
|
|
|
|
|||
|
Rotational life
|
30,000 cycles Min
|
|
|
|
|||
|
Push-on switch life
|
20,000 cycles Min
|
|
|
|
|||
|
Applications
|
Automotive electronics, amplifiers, home appliances or other electronic products;
|
|
|
|
|||
|
Product features
|
Low profile switch with reliable performance;
Available with push-on switch (0.5mm travel or 1.5mm travel); |
|
|
|
|||
|
Functions
|
The main functions are function switching, page turning, frequency modulation, volume control and so on.
|
|
|
|
|||
RS11 Self-return
Rotary Switch
Specifications
1. Rotational Torque: 30~300gf.cm 2. Rotational Angle: CW: 45°±10°; CCW: 45°±10°
Two、ELECTRICAL CHARACTERISTIC
1. Operating Force: 300~900gf.cm
2. Contact Resistance: 100mΩ Max
3. Power Rating: DC16V 10mA
4. Insulation Resistance: 10MΩ 1 Minute at DC 50V
5. Dielectric Voltage: 1 Minute at AC 300V
Four、ENDU
RANCE CHARACTERISTIC
1. Rotational Life: 15,000 cycles Min
2. Push-on Switch Life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
