Quick Details
-
Spindle Taper:
-
ISO50
-
Range of Spindle Speed(r.p.m):
-
30 - 2050 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
X5750A
-
Table Travel (mm):
-
1400/700/500
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
7.5
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
2625x2860x2080mm
-
Weight (KG):
-
4500
-
Product name:
-
Universal Ram Milling Machine
-
Table size:
-
500x2000mm
-
T-slots (NO./Width/Pitch):
-
5/18/80
-
Table feed (X/Y/Z):
-
10-1000/10-1000/5-500 mm/min
-
Table rapid speed:
-
2200/2200/1100
-
Spindle speed range:
-
(27 steps) 30-2050 rpm
-
Feed motor:
-
AC servo motor, X/Y:15NM; Z:18NM
-
Max. load:
-
1800kg
-
Swivel angle of milling head:
-
360°
-
Distance between spindle nose and table:
-
50-550mm
Quick Details
-
Table Travel (X) (mm):
-
1400
-
Table Travel (Y) (mm):
-
700
-
Table Travel (Z) (mm):
-
500
-
Spindle Taper:
-
ISO50
-
Range of Spindle Speed(r.p.m):
-
30 - 2050 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
X5750A
-
Table Travel (mm):
-
1400/700/500
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
7.5
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
2625x2860x2080mm
-
Weight (KG):
-
4500
-
Product name:
-
Universal Ram Milling Machine
-
Table size:
-
500x2000mm
-
T-slots (NO./Width/Pitch):
-
5/18/80
-
Table feed (X/Y/Z):
-
10-1000/10-1000/5-500 mm/min
-
Table rapid speed:
-
2200/2200/1100
-
Spindle speed range:
-
(27 steps) 30-2050 rpm
-
Feed motor:
-
AC servo motor, X/Y:15NM; Z:18NM
-
Max. load:
-
1800kg
-
Swivel angle of milling head:
-
360°
-
Distance between spindle nose and table:
-
50-550mm
Applications:

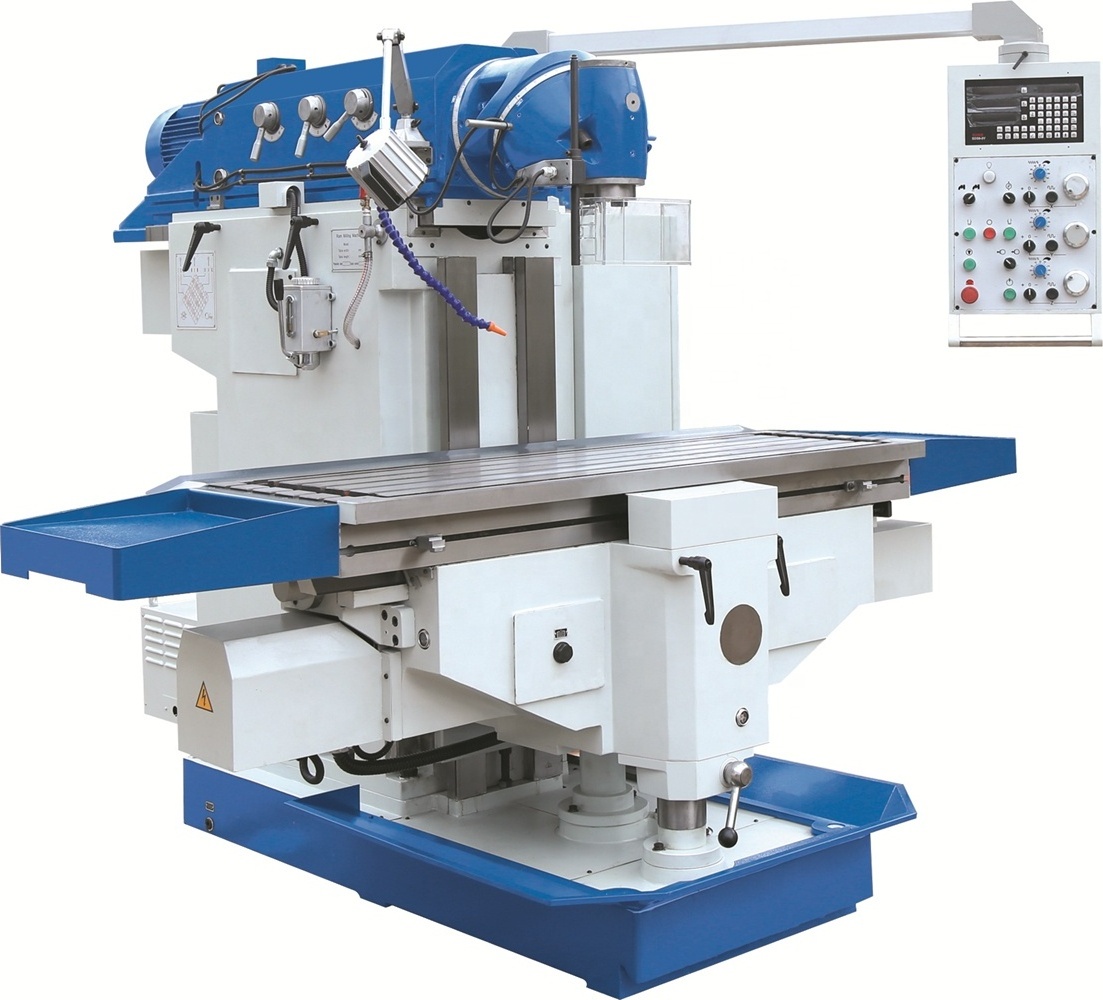

X5750A is a universal ram milling machine with servo motor and automatic feeding on 3 axis, this kind of milling machine is equipped with swivel milling head, and rotary table and more longer worktable can be ordered as optional.
It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.
Technical Parameters:
|
Specification |
Unit |
X5750 |
X5750A |
|
Table size |
mm |
500x1600 |
500x2000 |
|
T-slots (NO./width/pitch) |
mm. |
5/18/80 |
|
|
Table travel (X/Y/Z) |
mm |
1200/700/500 |
1400/700/500 |
|
Swivel angle of milling head |
- |
360° |
|
|
Spindle taper |
- |
ISO50 |
|
|
Spindle speed range |
r.p.m |
(27 steps) 30-2050 |
|
|
Table feed (X/Y/Z) |
mm/min |
10-1000/10-1000/5-500 |
|
|
Table rapid speed |
- |
2200/2200/1100 |
|
|
Distance between spindle nose and table surface |
mm |
50-550 |
|
|
Distance from spindle center line to column |
mm |
45-745 |
|
|
Main motor power |
kW |
7.5 |
|
|
Feed motor |
kW |
AC servo motor X/Y;15NM:Z:18NM |
|
|
Max load |
kg |
1800 |
|
|
Overall size |
mm |
2625x2460x2080 |
2625x2860x2080 |
|
weight |
kg |
4200 |
4500 |
