Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Application:
-
Working Boat
-
Engine type:
-
Water-cooled
-
Product Name:
-
Outboard motor 9.8hp
-
Control system:
-
Tiller Control
-
Starting system:
-
Manual Start
-
Full throttle operating range(rpm):
-
4500-5500
-
Transom height:
-
44cm
-
Bore*stroke:
-
50*43mm
-
Gear shift position:
-
F-N-R
-
Warranty:
-
1 year
Quick Details
-
Dimensions (L x W x H) (mm):
-
793*320*996mm
-
Brand Name:
-
HANGKAI
-
Model Number:
-
T9.8
-
Place of Origin:
-
Zhejiang, China
-
Application:
-
Working Boat
-
Engine type:
-
Water-cooled
-
Product Name:
-
Outboard motor 9.8hp
-
Control system:
-
Tiller Control
-
Starting system:
-
Manual Start
-
Full throttle operating range(rpm):
-
4500-5500
-
Transom height:
-
44cm
-
Bore*stroke:
-
50*43mm
-
Gear shift position:
-
F-N-R
-
Warranty:
-
1 year
2. Quiet efficient 2 stroke marine engine
3. High grade marine aluminum alloy for ultimate corrosion protection
4. Tilt & trim with shallow water drive various positions
5. Twist grip throttle control for easy maneuverability & safety
6. Thermostat controlled water cooling system
7. Safety lanyard with emergency shut off
8. Easy forward-neutral-reverse gear shifting
9. Vibration reduction system for smooth performance
10. Start in gear protection for increased safety
11. Adjustable steering friction for easier maneuverability
12. CDI ignition system for trouble free starting
13. Innovative large recoil wheel assists easy starting
14. Quiet, through the propeller hub exhaust
15. Low emissions, quiet operation boat engine
16. Quality 24Lfuel tank with hose

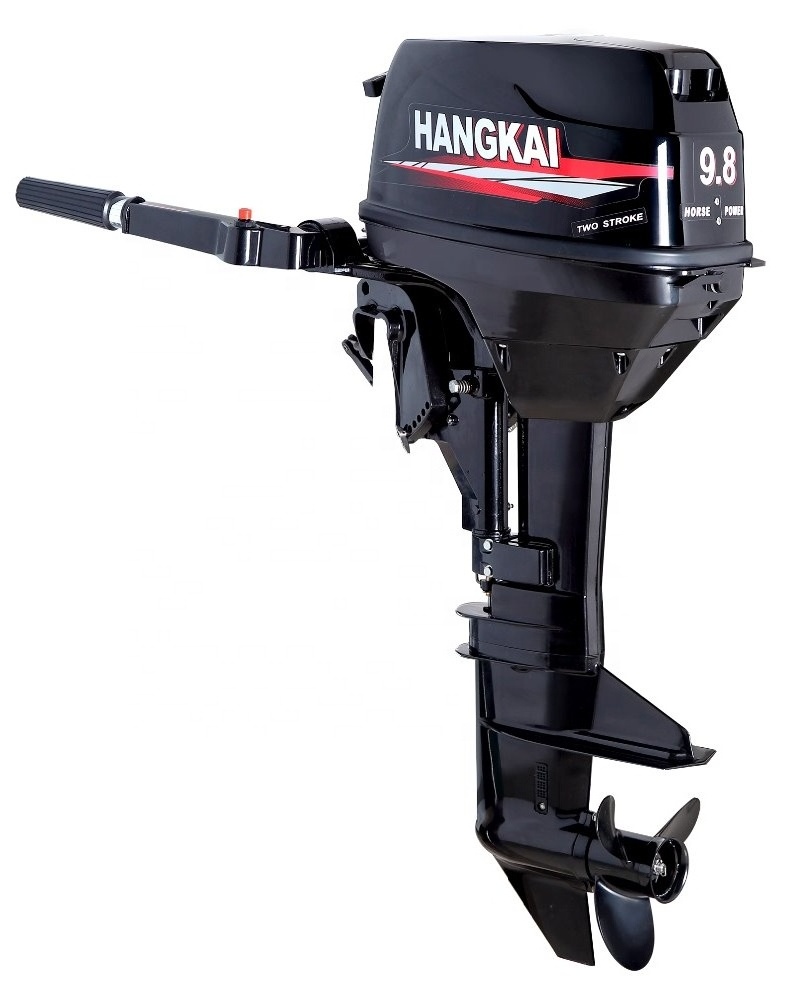

9.8hp Outboard Motors are the perfect choice for inflatable, small fishing boats and pontoon boats with great
operating convenience. HANGKAI has been supplying reliable, heavyduty outboard engines to the most demanding boaters of all people who make their living on the water. These outboard engines are designed from
the bottom up to take the strain of long continuous hours of hard use.
Hangkai Outboard Motor Specification(9.8hp-15hp):
| MODELS | M9.8 | M9.9 | M15(S) | |
| Max.Output kw(hp) | 7.2(9.8) | 7.3(9.9) | 11.0(15) | |
| Overall L×W×H(mm) | 793x320x996 | 873×332×1040 | 873x332x1040 | |
| Transom Plate Height (mm) | 448 | 440 | 440 | |
| Full Throttle Operating Range (r/min) | 4500-5500 | 4500-5500 | 4500-5500 | |
| Engine stroke | 2 | 2 | 2 | |
| Cylinder | 2 | |||
|
Displacement
(cc) |
169 | 246 | 246 | |
| Bore×Stroke (mm) | 50x43 | 56×50 | 56x50 | |
| N.W./G.W.(kgs) | 26/33 | 36.6/47.5 | 36.6/47.5 | |
| Packing Size (cm) | 108x67x40 | 119*71*38.5 | 119*71*38.5 | |
| Gear Ratio | 2.08(27:13) | |||
| Gear Positions | F-N-R | F-N-R | F-N-R | |
| Trim and Tilt System | Manual Tilt | |||
| Ignition System | CDI | |||
| Cooling System | Water-Cooling | |||
| Starting System | Manual Start | |||
| Control System | Tiller Control | |||
| Mixing Ratio | Fuel: Oil=50:1 | |||
| Standard Fuel Tank Capacity | 24L | |||
| Recommended Propeller Range | 3-8.9"x8.5" | 3-9 1/4"×8" | 3-9 1/4"×8" | |
| Recommended Fuel | #93 Lead-Free Gasoline | |||
| Recommeded Gear Oil | Hypoid Gear Oil | |||
