Quick Details
-
Frequency:
-
50-60HZ
-
Welding Area:
-
Depend
-
Dimensions:
-
47cm*35cm*35cm
-
Use:
-
banner welding , tent welding
-
Weight (KG):
-
20 KG
-
Power (kW):
-
2100W
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhzchunlei
-
Voltage:
-
110V/220V
-
Frequency:
-
50-60HZ
-
Welding Area:
-
Depend
-
Dimensions:
-
47cm*35cm*35cm
-
Use:
-
banner welding , tent welding
-
Weight (KG):
-
20 KG
-
Power (kW):
-
2100W

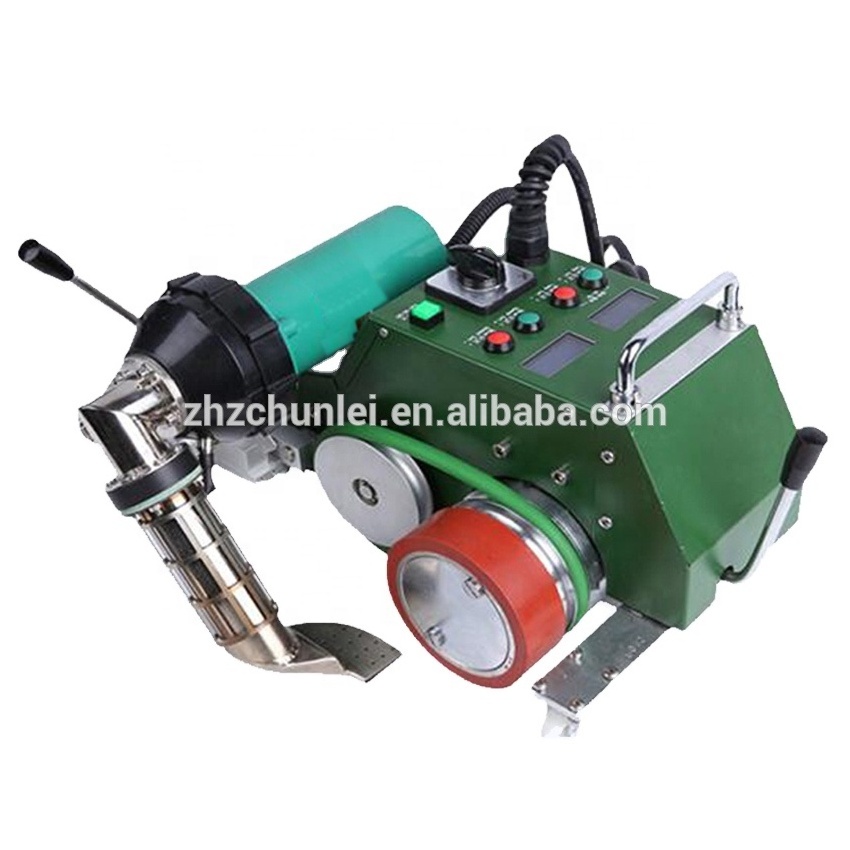

Hot sale Fabric banner Welding Joining Machine
Our company produce many different model welding machine , such as model 4000L , model 3000A , model 4000Z and other high quality model
Application
Welding and joining separate pieces made of some hot melting materials . Such as PVC fabic , PE canvas , outdoor poster banner , textile , plastic pieces , and so on .
Technical Parameter
|
Model |
4000Z |
|
Voltage |
230V |
|
Frequency |
50/60HZ |
|
Power Consumption |
2100W |
|
Adjustable Temperature |
0-600degree centigrade |
|
Range of Speed(m/min) |
0-10.0 meters/minute |
|
Air flow |
200-270L/Min |
|
Time of the Saving Power Mode |
No operation in 15 minutes |
|
Welding Width |
10-50mm |
|
Welding Thickness |
0.5-3mm |
Operation steps
1.Check the welding nozzle basic setting , and connect the tool to the mains . The mains voltage must correspond with the voltage stated on the cool .
2.Perform a test welding according to the welding instructions of the material , check the test welding . Then adapt the welding temperature as required .
3.Turn hot air blower using positioning lever up to the stop , the outside edge of drive/pressure roller must lone up with the overlap edge of the material to be welded
4.Set temperature and welding speed according to the required value
5.After completing welding work , press the button STANDBY , so that the hot air blower cools down . Then turn off the air blower switch
Maintenance
- For safe and effient working , always keep the unit and its ventilation slots clean
- Clean welding nozzle with wire brush
- Check mains connection and plug for electrical and mechanical damage
1. Packing by wooden box
2 . Packing size : 47cm*35cm*35cm
3. Shipping by express , such as DHL , Fedex or other way .
1. Our machine warranty one year
2. When shipping machine , we will provide necessary accessories .
3.We will provide best technical Support .
4. Fast shipping product .
