- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XYDQ
-
Model Number:
-
XYDQ-JS
-
Color:
-
Black,Light grey,other colors can be customized
-
Meterial:
-
Galvanized steel band
-
Certification:
-
RoHS,CE,ISO:9001
-
Size:
-
6mm--100mm
-
Temperature Range:
-
-10°C~80°C, instantaneously can be 100℃
-
Outer diameter:
-
9±0.25mm~109±3.0mm
-
Max axial strain:
-
335kg~4700kg
-
Natural curve:
-
40mm~410mm
-
Thickness:
-
as required
-
Usage:
-
electric wires and cable protection
Quick Details
-
Type:
-
Flexible
-
Material:
-
Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XYDQ
-
Model Number:
-
XYDQ-JS
-
Color:
-
Black,Light grey,other colors can be customized
-
Meterial:
-
Galvanized steel band
-
Certification:
-
RoHS,CE,ISO:9001
-
Size:
-
6mm--100mm
-
Temperature Range:
-
-10°C~80°C, instantaneously can be 100℃
-
Outer diameter:
-
9±0.25mm~109±3.0mm
-
Max axial strain:
-
335kg~4700kg
-
Natural curve:
-
40mm~410mm
-
Thickness:
-
as required
-
Usage:
-
electric wires and cable protection
Specifications

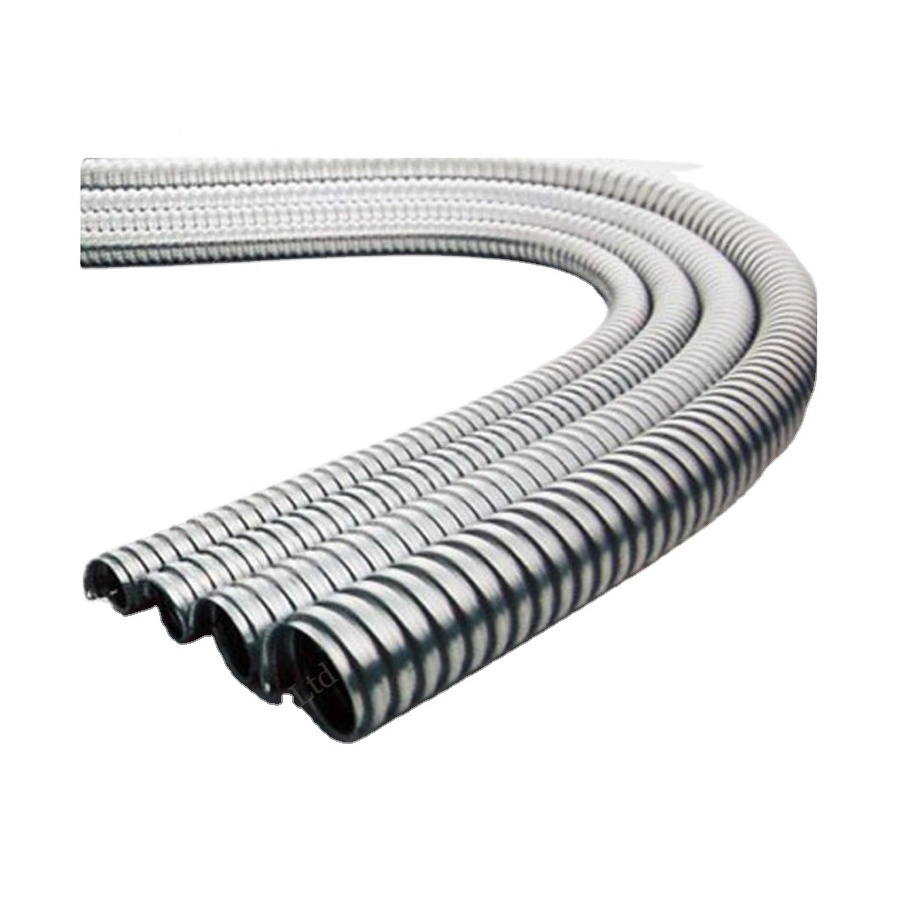

16mm Metal Flexible Corrugated Pipe / 1/2 inch Galvanized Steel conduit
|
Product Name
|
16mm / 1/2 inch Metal Flexible Corrugated Pipe
|
|
Material
|
Galvanized steel band
(inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging)
|
|
Color
|
Black,Light Grey,othercolor can be Customized
|
|
Standard
|
ROHS,CE,ISO:9001,
|
|
Size
|
6mm--100mm
|
|
Brade
|
XYDQ
|
|
Usage
|
Protecting wires and cables in order to provide insulation, waterproof as well as beautiful outlook of the wires and cables.
|
Specifications
|
Items NO.
|
Size
Metric
(mm)
|
G
System
|
Outer
Diameter
(mm)
|
Natural
Curve
(mm)
|
Max.
Axial
Pull
(kg)
|
Packaging
Unit
(Mts)
|
|
XYDQ-JS06
|
Φ 6
|
3/16"
|
9.00 ± 0.25
|
40
|
335
|
100
|
|
XYDQ
-JS08
|
Φ8
|
1/4
|
11.8 ± 0.30
|
45
|
470
|
100
|
|
XYDQ
-JS10
|
Φ10
|
5/16"
|
14.5 ± 0.30
|
55
|
590
|
100
|
|
XYDQ
-JS12
|
Φ12
|
-
|
16.5 ± 0.35
|
60
|
710
|
100
|
|
XYDQ
-JS13
|
Φ13
|
3/8"
|
17.5 ± 0.35
|
65
|
765
|
100
|
|
XYDQ
-JS14
|
Φ14
|
-
|
20.2 ± 0.35
|
80
|
885
|
100
|
|
XYDQ
-JS16
|
Φ16
|
1/2"
|
21.2 ± 0.35
|
85
|
940
|
100
|
|
XYDQ
-JS19
|
Φ19
|
-
|
24.5 ± 0.40
|
95
|
1120
|
100
|
|
XYDQ
-JS20
|
Φ20
|
3/4"
|
25.5 ± 0.40
|
100
|
1180
|
100
|
|
XYDQ
-JS25
|
Φ25
|
1"
|
31.7 ± 0.45
|
120
|
1450
|
50
|
|
XYDQ
-JS32
|
Φ32
|
1 1/4"
|
39.6 ± 0.50
|
150
|
1825
|
50
|
|
XYDQ
-JS38
|
Φ38
|
1 1/2"
|
46.6 ± 0.60
|
180
|
2240
|
50
|
|
XYDQ
-JS51
|
Φ51
|
2
|
59.5 ± 1.00
|
220
|
3000
|
20
|
|
XYDQ
-JS64
|
Φ64
|
2 1/2"
|
73.5 ± 1.50
|
310
|
3770
|
20
|
|
XYDQ
-JS75
|
Φ75
|
3"
|
84.5 ± 2.00
|
350
|
4405
|
20
|
|
XYDQ
-JS100
|
Φ100
|
4"
|
109.0 ± 3.0
|
410
|
4700
|
20
|
Packing Details : Normal Ways of Packing, please see the chart.
We also provided the customized package.
Delivery Details : Around 30 days after order and payment of PET Expandable Braided Sleeving.
It depends on your lacation.
Packaging
1. First package
Anti-water, NEAT
2. Double package
Anti-water,more protective
Packaging
3.Special logistics packaging
Triple Package, easy for container.
Factory
Our Factory
The machine of Plastic coated Metal flexible pipe
Q: Are you trading company or manufacturer ?
A: We are factory.And produce the goods by ourself.
Q: How long is your delivery time?
A: About the production time :
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:We generally use the terms of T/T .
If you have another question, pls feel free to contact us as below:
