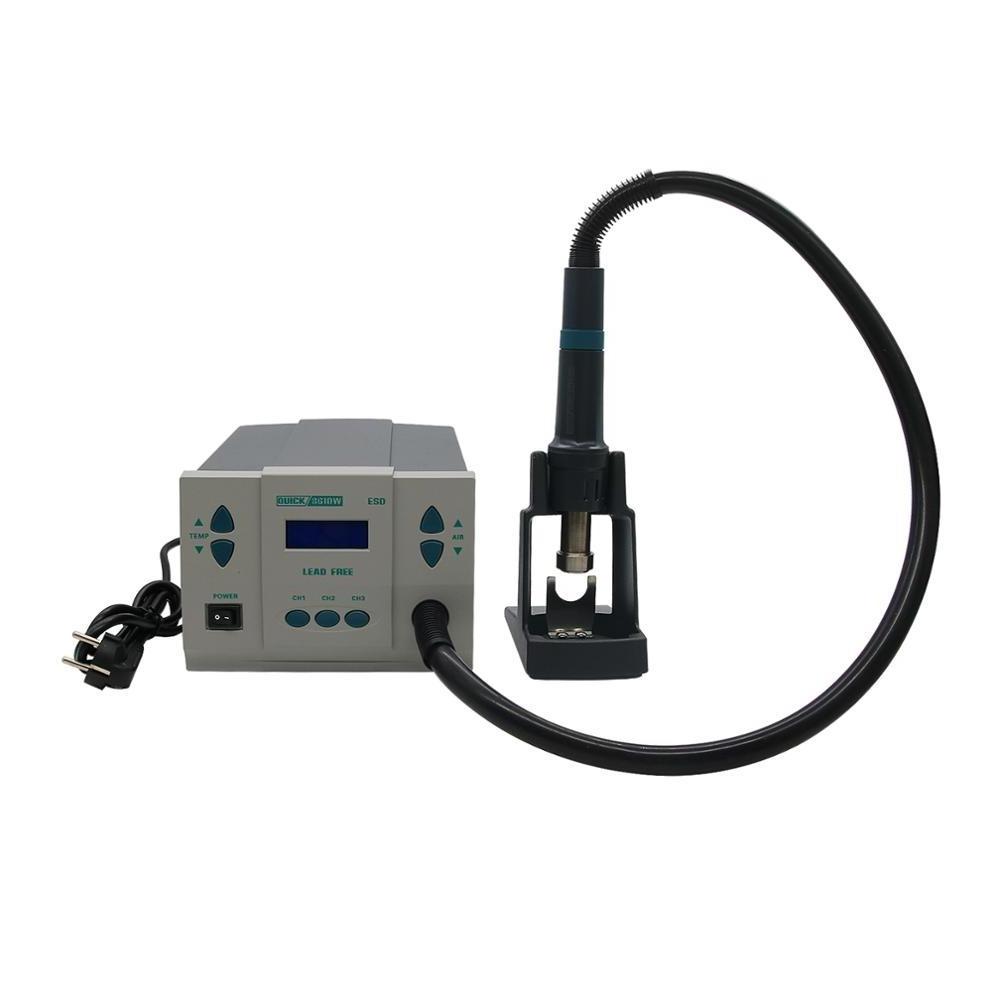

220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station
220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station

220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station

FOB Reference Price: Get Latest Price
≥1 Pieces
US $226
≥5 Pieces
US $220
≥10 Pieces
US $217
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
TZT
Weight (KG):
6 KG
Weight:
6
Power:
1000W
Heating time:
1 Min
Max air volume:
120L / min
Temperature Range:
1-120
Max Airflow:
120L/min
Output voltage:
26V
included:
Fuse
Temperature adjustment range:
100 ~ 500
After Warranty Service:
Online support
Local Service Location:
None
After-sales Service Provided:
Online support

Quick Details

Applicable Industries:
Soldering Digital Rework Station
Core Components:
Other
Place of Origin:
Guangdong, China
Brand Name:
TZT
Weight (KG):
6 KG
Weight:
6
Power:
1000W
Heating time:
1 Min
Max air volume:
120L / min
Temperature Range:
1-120
Max Airflow:
120L/min
Output voltage:
26V
included:
Fuse
Temperature adjustment range:
100 ~ 500
After Warranty Service:
Online support
Local Service Location:
None
After-sales Service Provided:
Online support

220V 861DW 1000W High-Power Hot Air QUICK Soldering Digital Rework Station

Product Description

Quick Soldering 861DW 1,000 Watt Hot Air Digital Rework Station with Stand. New in the box with free shipping.

Features

- Three regular channels are "CH1", "CH2", and "CH3". Each channel's parameter including temperature and airflow can be set.
- Password protection and key-lock functions.
- Real time operation by the magnetic switch. It will enter sleeping state when the handle is placed on the holder.
- Auto sleeping function. Parameters can be set in sleeping state.
- Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently. Accurate and stable, not affected by airflow.
- Large power, rapid heating.
- A multipurpose unit, having brushless whirlpool motor, wide range and stepless adjustable airflow.
- An automatic cooling system can prolong the life time of the heating element and protect the handle.
- 3 Nozzles Included NK2064, NK2084 & NK1130
- Quality Station at a fraction of the price. Compares to OKI, PACE, Hakko, and Weller.

Please Choose 110V or 220V in option box

Specifications
- Type of soldering station
- Temperature adjustment range 100 ~ 500 (℃)
- Scope of application Electronic products Welding input voltage 220 (V)
- Output voltage 26 (V)
- Fuse included
- Resistance to ground resistance less than 2 (Ω)
- Shell surface impedance less than 2 (Ω)
- Welding Tsui to ground voltage less than 5 (mV)
- Power 1000 (W)
- Dimensions 188L * 245D * 135H (mm)
- Heating time 1min
- Maximum air volume 120L / min
- Air volume range of 1 ~ 120 level
-  Power: 1000W
-Temperature Range: 1-120
- Maximum Airflow: 120L/min
- Size: 188(L) x 245(D) x 135(H) mm
