Quick Details
-
Brand Name:
-
4leaf
-
Model Number:
-
ULTRA
-
Motor Type:
-
Mid motor
-
Frame:
-
Carbon Fiber
-
Motor:
-
Bafang Ultra M620 1000w
-
Speed:
-
45km/h
-
Battery:
-
LG 48V 17.5AH
-
Wheel size:
-
29*2.4
-
Throttle:
-
Thumb throttle
-
Sensor:
-
Torque Sensor
-
Derailleur:
-
Shimano 10speed // SRAM 12sp
-
Rotor:
-
180/203mm
-
aftersales:
-
one year
Quick Details
-
Battery Capacity:
-
17.5 Ah
-
Wheel Size:
-
29
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
4leaf
-
Model Number:
-
ULTRA
-
Motor Type:
-
Mid motor
-
Frame:
-
Carbon Fiber
-
Motor:
-
Bafang Ultra M620 1000w
-
Speed:
-
45km/h
-
Battery:
-
LG 48V 17.5AH
-
Wheel size:
-
29*2.4
-
Throttle:
-
Thumb throttle
-
Sensor:
-
Torque Sensor
-
Derailleur:
-
Shimano 10speed // SRAM 12sp
-
Rotor:
-
180/203mm
-
aftersales:
-
one year
Product Description

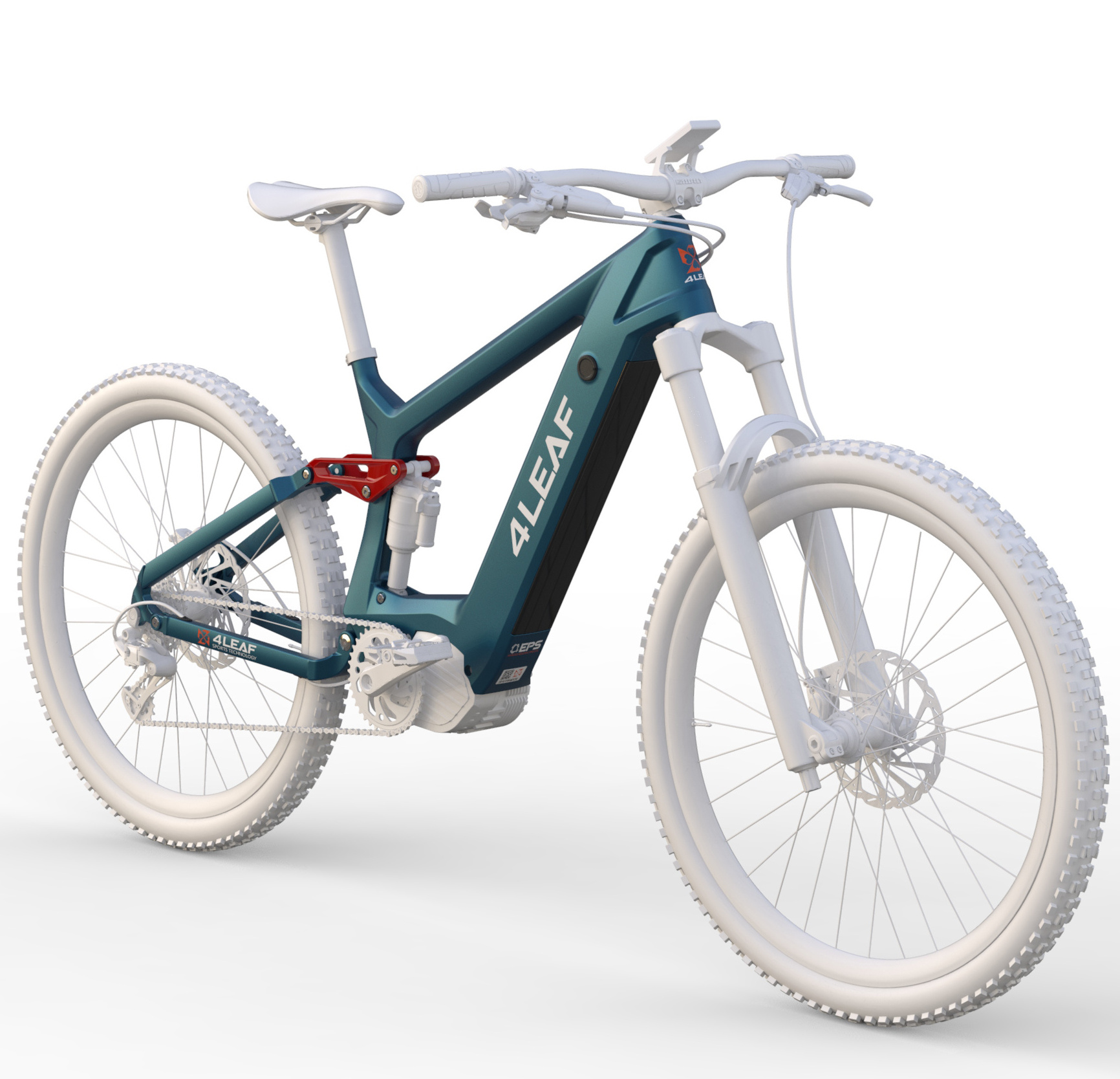

Ebike Frame Bafang M620 Frame Carbon Fiber MTB 29'' Full Suspension Emtb Frame Only not set
|
item
|
SPEC.
|
Recommended
|
|
Fork
|
550L, travel 140-160mm
|
Rockshox Yari
|
|
Headtube
|
height 56mm
|
|
|
Seatpost
|
Φ31.6mm
|
|
|
Shock
|
W24*200L*W50
|
Rockshox Monarch RL
|
|
Motor
|
Bafang M620
|
|
|
Display
|
Bafang
|
color
|
|
Crankset
|
Bafang
|
|
|
Battery Pack
|
LG 48V 17.5AH
|
With a charger & Tool
|
|
Others
|
Keys/sensor/spline/thumb throttle
|
|
Whole Bike Version
Bafang Motor version
M620 1000W
FRAME
Carbon fiber（front）+Aluminum alloy（back）
Carbon fiber（front）+Aluminum alloy（back）
|
Category
|
Components
|
Brand
|
model
|
Specification
|
|
Frameset
|
frame
|
T800 carbon fibre
|
ULTRA
|
19(rear triangle by alluminium alloy)
|
|
|
Fork
|
Rockshox
|
Yari
|
travel 160mm
|
|
|
rear shock
|
Rockshox
|
Monarch RL
|
190L*51mm
|
|
Derailleur System
|
Derailleur
|
SRAM
|
SX Eagle
|
12 speed
|
|
|
Crankeset
|
|
SX Eagle
|
CR-EAGLE-38T, 104BCD
|
|
Power system
|
battery
|
Reetion
|
Rhino 7
|
17.5AH (70*18650) 48v, 3500mah
|
|
|
Charger
|
ATN
|
ATN3
|
54.6/3A, DC2.1, UL, CE, RoHS
|
|
|
motor
|
BAFANG
|
M620
|
48V 1000W 160NM
|
|
|
Display
|
Key-Disp
|
KD718
|
TFT, original manufacturer for BAFANG
|
|
Brake
|
power off brake lever
|
SRAM
|
G2 R
|
4piston, hydraulic disk, 6nail, 203mm, left for front, right for rear
|
|
Wheel
|
wheel set
|
CST or Innova
|
|
26--29 (DIAMETER)
2.4--4.8'' (WIDTH) |
