Quick Details
-
Power (W):
-
400W
-
Voltage (V):
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OSUNSHINE
-
Model Number:
-
CH-T20G-N
-
Product name:
-
Ozone generator water treatment machinery
-
Color:
-
White
-
Net weight:
-
35kg
-
Dimensions:
-
40*30*77cm
-
Fuse:
-
5A
-
Ozone Production:
-
2~30g/h
-
Gas Flow rate:
-
3-10LPM
-
Function:
-
Remove Odor, clear air, water treatment
-
Usage:
-
Car . Home . Office
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Car, Outdoor, Hotel, Commercial, Household
-
Type:
-
Ozone Generator
-
Power (W):
-
400W
-
Voltage (V):
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OSUNSHINE
-
Model Number:
-
CH-T20G-N
-
Product name:
-
Ozone generator water treatment machinery
-
Color:
-
White
-
Net weight:
-
35kg
-
Dimensions:
-
40*30*77cm
-
Fuse:
-
5A
-
Ozone Production:
-
2~30g/h
-
Gas Flow rate:
-
3-10LPM
-
Function:
-
Remove Odor, clear air, water treatment
-
Usage:
-
Car . Home . Office
-
Certification:
-
ISO9001
OSUNSHINE 20g/h commercial water ozonator air source ozone generator
Applications:
1. Medical treatmentindustry: disinfect sickroom, operating room, medical treatment equipment,aseptic room, etc
2. Fruits andvegetables:keep fruits and vegetables fresh and storethem
3. Sea food factory:Remove smell of sea food factory and kill bacterias ,disinfect production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias,disinfect production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias ,disinfect water for poultry feeding.
6. Commercial use in House,hotel,Office,KTV,Super Market,Fruit shopetc.
Air Purifier : Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactrias,Virus to fresh air.
1. Medical treatmentindustry: disinfect sickroom, operating room, medical treatment equipment,aseptic room, etc
2. Fruits andvegetables:keep fruits and vegetables fresh and storethem
3. Sea food factory:Remove smell of sea food factory and kill bacterias ,disinfect production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias,disinfect production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias ,disinfect water for poultry feeding.
6. Commercial use in House,hotel,Office,KTV,Super Market,Fruit shopetc.
Air Purifier : Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactrias,Virus to fresh air.
Water purifier
:Disinfect production Water supply.
7. Bottle Water,Domestic Water,Well Water,Pool Water Disinfection & Sterilization

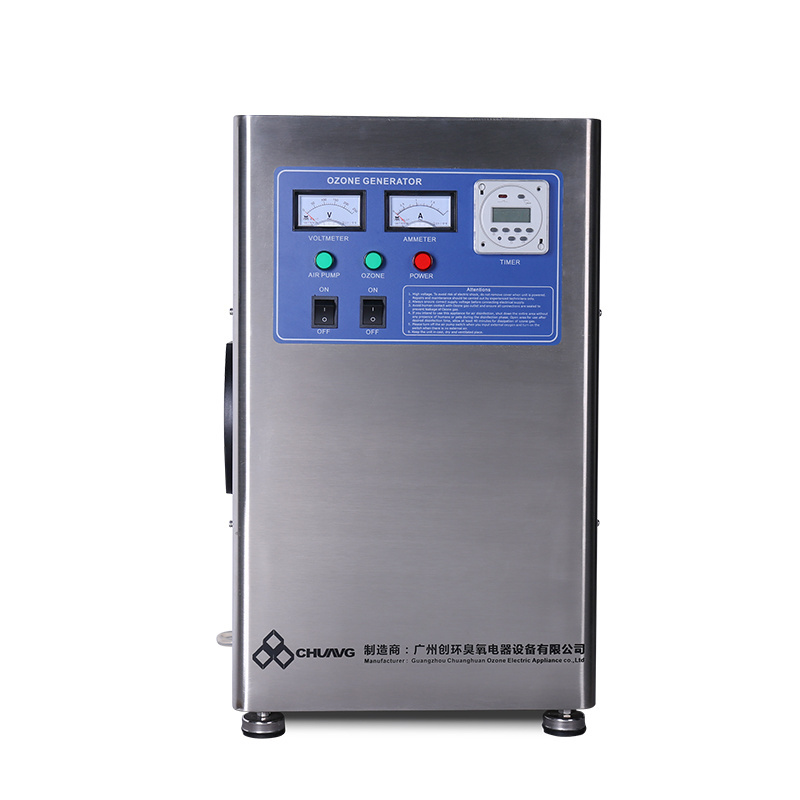

Control panel:
Voltmeter, Ampmeter, Switch, Timer,
Working light, Power light etc.
Timer: One or Two recycle working time
Features:
1. Builted in Domestic Patented Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer,Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. 5.No breakdownwith easy operation and maintenance.
7. Bottle Water,Domestic Water,Well Water,Pool Water Disinfection & Sterilization
Control panel:
Voltmeter, Ampmeter, Switch, Timer,
Working light, Power light etc.
Timer: One or Two recycle working time
Features:
1. Builted in Domestic Patented Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer,Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. 5.No breakdownwith easy operation and maintenance.
|
Item
|
Unit
|
CH-T-N
|
Output gas tube
|
Fuse
|
Size
|
NW
|
|
|
|
|||||||
|
|
|
2G
|
3G
|
5G
|
6G
|
10G
|
15G
|
20G
|
30G
|
|||||||
|
Oxygen flow rate
|
LPM
|
0.5~2
|
1~3
|
1.2~3
|
1.5~3.5
|
2.4~6
|
3.6~9
|
3~10
|
3~10
|
|||||||
|
Ozone concentration
|
Mg/L
|
28~50
|
28~65
|
32~60
|
28~56
|
32~60
|
32~60
|
38.9~42
|
51~70
|
|||||||
|
Ozone output
|
G/Hr
|
1.5~3.0
|
4~5.0
|
4.3~5.7
|
5.0~5.8
|
8.6~14.5
|
13~17
|
18.6~20
|
12.6~30.6
|
|||||||
|
Power
|
W
|
115
|
135
|
160
|
185
|
260
|
330
|
400
|
1100
|
|||||||
|
Compressed air pressure
|
Mpa
|
0.025
|
|
|
|
|
|
|
0.14
|
|||||||
|
Fuse of power supply
|
A
|
3
|
|
|
|
5
|
|
|
10
|
|||||||
|
Size
|
cm
|
36*26*61
|
|
|
|
40*30*77
|
|
|
40*28*101
|
|||||||
|
Net Weight
|
kg
|
11.25
|
|
11.30
|
11.50
|
18
|
20
|
35
|
33.5
|
|||||||
Related Products
CH-KJS-M
Portable air purify ozone generator
CH-BT
Ozone generator for air and home water
Guangzhou OSUNSHINE Environmental Technology Co., Ltd.
, based on the parent company of
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd.,
which was established in 2006, It focuses on ozone equipment, accessories production, development and application of products.With the development for several years, the company has been in 16 aspects of the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe, North and South America, outheast Asia, Middle East, Africa and dozens of countries.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid
any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid
any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
