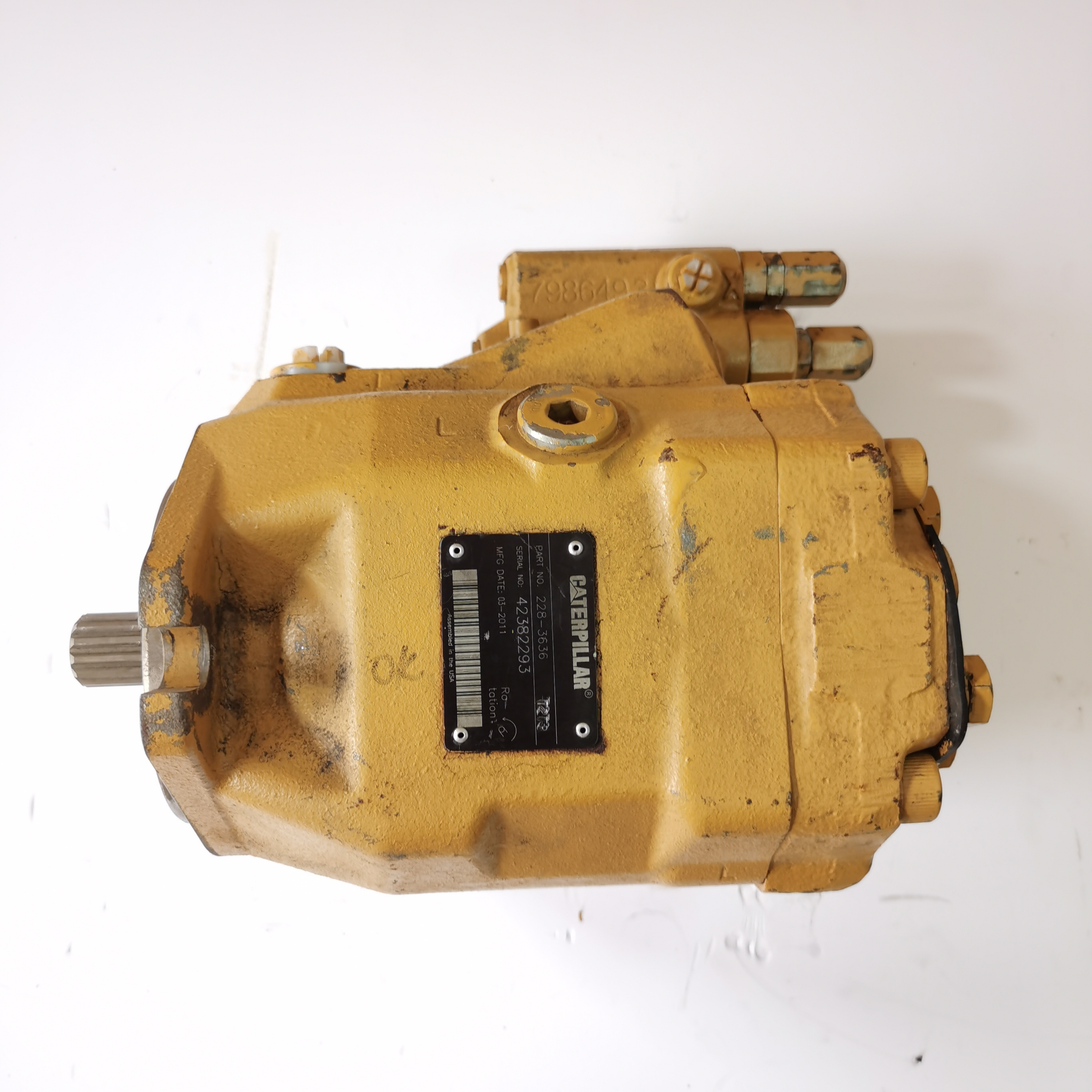

HYUNKOOK 228-3636 Hydraulic Pump 10R4506 COMPACTOR FOR CAT836H LOADER CAT988H C18 LOADER DOZER 834H

HYUNKOOK 228-3636 Hydraulic Pump 10R4506 COMPACTOR FOR CAT836H LOADER CAT988H C18 LOADER DOZER 834H

FOB Reference Price: Get Latest Price

≥1 Pieces

US $650

≥2 Pieces

US $300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model:: CAT836H LOADER CAT988H C18 LOADER DOZER 834H

MOQ:: 1 Piece

Certification:: ISO

Service:: Professsional Service

Stock:: In stock

After Warranty Service:: Online support

Packing:: Wooden Case

Quality:: High Guarantee

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: HYUNKOOK

Product Name:: HYDRAULIC PUMP

Model:: CAT836H LOADER CAT988H C18 LOADER DOZER 834H

MOQ:: 1 Piece

Certification:: ISO

Service:: Professsional Service

Stock:: In stock

After Warranty Service:: Online support

Packing:: Wooden Case

Quality:: High Guarantee

K3V112DTP-1SLR-9TBS hydraulic pump for SK330 SK330LC LC10V00004F1 LC10V00004F2
Product Name:	hydraulic pump	Model Number:	K3V112DTP-1SLR-9TBS
Condition:	OEM/Original New	Delivery:	Within 1-3days
Inventory:	In stock	Place Of Origin:	China
Packing:	Wooden Case	Payment Term:	L/C,T/T.Western Union
Guarantee: We will check the goods and send detail pictures to buyer to confirm before shipping.

Swash plate type axial piston pumps

Hyunkook can offer the different quality hydraulic pump, like Japan Kawasaki, Korea / Flutek Kawasaki, OEM, China made and rebuild. also offer the brand of JIC HANDOK TONGMYUNG PMC KPM inner repair parts, send an inquiry and Choice your prefer one.

K3V series

K3V63 K3V112 K3V140 K3V180 K3V280

1. K3V series pumps are very popular as reliable power source for construction machines. 2. Various rotary group layouts are available to respond to applications. 3. Tandem type with PTO and Parallel type have joined the series.

model			K3V63	K3V112	K3V140	K3V180	K3V280
displacement /cm3			63	112	140	180	280
pressure MPa (kgf/cm2）	rated	34.3 (350)
pressure MPa (kgf/cm2）		peak	39.2 (400)
speed /min-1	max.for self priming	2,650	2,360	2,150	1,950	1,600
speed /min-1		max	3,250	2,700	2,500	2,300	2,300

K5V series

K5V80 K5V140 K5V160 K5V200 K5V212 K7V63

Thanks to new technology, the K5V series now provides an even higher power density. This series can easily handle enlargement of displacement despite having the same installation dimensions and regulator variations as the K3V. Our K5V pumps reliably deliver industry-leading reliability and a long life, meeting the requirements of larger torques.

Model			K5V80DT/DTP	K5V140DT/DTP	K5V160DT/DTP	K5V200DT/DTP	K5V212DT/DTP	K7V63
Displacement (cc/rev)			80	140	160	200	214	63
Pressure (bar)	Rated	343							350
Pressure (bar)		Peak	343							400
Speed (rpm)	Max. for self priming	2,460	2,160	2,000 (2,350)	1,900 (2,200)	2,000	2650
Speed (rpm)		Max.	3,000	2,500	2,350	2,200	2,000	3250

HYDRAULIC MAIN PUMP ASSY AND SPARE PARTS
DOOSAN/DAEWOO	2401-6228	K3V112DT-112R-9C02
		2401-9095P	K3V112DT-1CGR-HNOP
		2401-9158A	K3V112DT-1CGR-HNOD(V)
		2401-9186	K3V112DT-1CGR-HNOC
		2401-9225C	K3V140DT-1A2R-9N09
		2401-9236B	K3V140DT-1UGR-HN1P
		2401-9261	K3V140DT-1UGR-HN02
		400914-00026	K5V140DTP-1D9R-9N01
		400914-00212A	K5V140DTP-1N9R-9NO7-V
		400914-00393	K3V180DT-1PGR-HLOP
		401-00020B	K3V180DT-1PGR-HNOP
		401-00059B	K3V180DT-1PGR-HN1P
		401-00060C	K3V180DT-1PGR-HNOZ
		V63DT-111R-6N03A-2	K3V180DTH-1POR-HNOV
		K3V63DT-1Q0R-HNOV	K3V180DTH-1POR-HNIV
		K3V112DT-112R-9N02	K3V180DTH-1POR-HN2V
HYUNDAI	3156-03010	31N6-10030
		3159-03010	31N6-10100
		31EG-10010	31N7-10010
		31EN-10010	31N7-10011
		31ER-03020	31N8-10020
		31N3-10011	31N9-10010
		31N5-10011	31NB-10010
		31N5-15011	31NB-10020
		31N6-10010	31Q6-10050
		31N6-10020
VOLVO	14508164	1142-06230
		14508164	14500380
		14510170	14508164
		14520050	14512271
		14520750	14516405
		14526609	14522561
		14531300	14524052
		14531591	14526609
		14531594	14531412
		14533644	14531857
		14612484	14549798
		14618624	14612484
		1040-74390	14618624
		1042-02191A	14621492
		1042-07700	14623786
		1142-00010	7220-00601
		1142-00530	K3V63DT-1ZDR-9N0T-ZV
		1142-00660	K5V80DT-1 PDR-9N0Y-ZV
		1142-00900	K5V80DT-1PDR-9N0J-ZV
		1142-05460	K3V180DT-1PER-9N56
		1142-06230	3V180DTH-1POR-9NOB
HITACHI	HPVO102FW-RE23A & SENSOR	HPVO102FW-RE23A & SENSOR
		HPVO102FW-RH23B & NORMAL	HPVO102GW-RH23A & EPR V / V
		HPVO102GW-RH23A & EPR V / V	HPVO118HW-RH26A & EPR V / V
		HPVO118HW-RH26A & EPR V / V	HPVO105FW-RH25B & NORMAL
		HPVO105FW-RH25B & NORMAL	HPVO105FW-RE25A & SENSOR
		HPVO105FW-RE25A & SENSOR	HPVO102FW-RH23C & NORMAL
		HPVO102FW-RH23C & NORMAL	HPVO118FW-RH26B & NORMAL
		HPVO118FW-RH26B & NORMAL	HPVO105GW-RH25A & EPR V / V
		HPVO105GW-RH25A & EPR V / V	HPV145WHITOUT REGULATOR
		HPVO102FW-RH23B & NORMAL

The founder of Hyunkook has entered the construction machinery industry since 2001, and has maintained good relations with well-known brands in Southeast Asia, such as Tongmyung Heavy Industry, South Korean WYS Oil Seal Group, Japanese Isuzu, Kobelco and so on.

Through 20 years of exploration, the company has builded-up a lot of professional experience and knowledge on domestic construction machinery plants, supporting plants and after-sales parts factories, including product information and quality inspections. Hyunkook focuses on supplying Caterpillar genuine, OEM and after-sales parts; all brands new and remanufactured complete diesel engines and spare parts.

We manufacture and sell a wide range of parts such as Caterpillar E312, E320, E325, E330, E336, E349, E374 etc Hydraulic pump and parts, final drive travel motor and parts, engine assembly and parts,injector, fuel injection pump, controller, monitor and etc. sell new, used and remanufactured complete engines and parts, such as Isuzu, Mitsubishi, Yanmar, Kubota, Hino, Cummins, komatsu, Deutz, Perkins, Weichai.
