Quick Details
Quick Details
-
Type:
-
Capacitive
-
Brand Name:
-
CJTOUCH
-
Place of Origin:
-
Guangdong, China
| Product Description | ||||

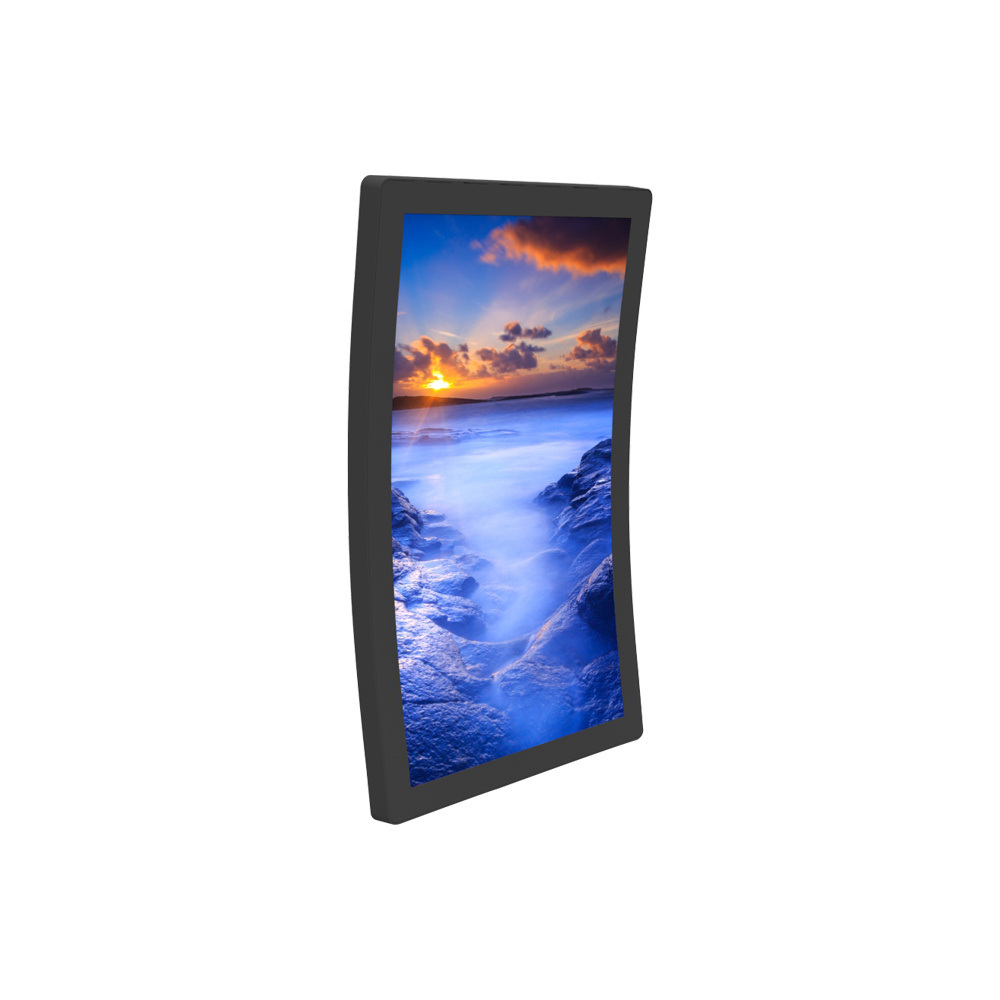

| Product name | 43 inch 4K curved touch monitor with Capacitive touch screen LED light | |||
| Model | COT430-CRK-4KC2LED | |||
| LCD panel | Active area | 963.6(H)×557.9(V)mm | ||
| Display ratio | 16:09 | |||
| Backlight | LED | |||
| Backlight MTBF(hr) | Over 50000 | |||
| Resolution | 3840×2160 | |||
| Luminance | 300cd/m2 | |||
| Contrast | 1300:01:00 | |||
| Response time | 8ms | |||
| Dot pitch | 0.2451(H)×0.2451(V)mm | |||
| Support color | 16.7M | |||
| Viewing angle | Horizontal/Vertica:178°/178° | |||
| PCAP | Touch technology | Projected Capacitive Technology G+G | ||
| touch screen | Response time | <5ms | ||
| Touch points | 10 points touch | |||
| Touch effective recognition | >1.5mm | |||
| Scanning frequency | 200HZ | |||
| Scanning accuracy | 4096 x 4096 | |||
| Communication mode | Full speed USB2.0,USB3.0 | |||
| Theoretical clicks | More than 50 million | |||
| Working current/voltage | 180Ma/DC+5V+/-5% | |||
| Anti-light interference | Normal when the strong light of sunlight, incandescent lamp, fluorescent lamp etc. changes | |||
| Touch data output method | Coordinate output | |||
| Surface hardness | Physically toughened, Mohs grade 7 explosion-proof glass | |||
| Operating system | Android/Windows | |||
| Driver | Drive free, plug and play | |||
| Other interface | H-D-MI Input*3; Touch USB*1 ; Headphone output*1 ; AC*1; RS232*1 | |||
| Power supply | Working voltage | AC220V 50/60Hz | ||
| Max power dissipation | 155W | |||
| Power consumption | 0.8W | |||
| Environment | Temperature | 0~40degrees Celsius | ||
| Humidity | 10~90%RH | |||
|
Other |
Product size | 1022.7*615*163.9mm | ||
| Package size | 1100*705*245mm | |||
| Net weight | 24KG | Gross weight | 27KG | |
| Accessory | Power cable*1, H-D-M-I*1,USB cable*1,Remote*1 | |||
Our Services & Strength
Cjtouch Services
1.Sample Availability & Policy:
Paid samples are available in 2 - 5 days.
OEM & ODM service available.
2. Warranty & Spare parts Conditions :
(1). Our Products comes with 12 Months Warranty.
(2). We offer Premium Quality for Customer to make better profits.
(3). We maintain High Quality Standard.
(4). Our Products makes Customer Best Seller Product.
(5). We provide Best Product for futher sales.
(6). We sell Original Authentic Product to Customer.
(7). Our Products are Environment Friendly Products.
