Quick Details
-
Power:
-
7.5Kw
-
Dimension(L*W*H):
-
1100*700*1500mm
-
Weight:
-
195 kg
-
Elector Motor:
-
7.5Kw
-
Rorated Speed:
-
0-1800rpm
-
Disc Quantity:
-
12
-
Water Tank Capacity:
-
68L
-
Application:
-
concrete floor leveling grinding machine
-
Working Diameter:
-
500mm
-
Working Efficiency:
-
450sqm/8hr
-
Frequency Converter:
-
7.5Kw
-
Usage:
-
polishing machine for concrete
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SIHOK
-
Voltage:
-
220V/380V, 220V/380V
-
Power:
-
7.5Kw
-
Dimension(L*W*H):
-
1100*700*1500mm
-
Weight:
-
195 kg
-
Elector Motor:
-
7.5Kw
-
Rorated Speed:
-
0-1800rpm
-
Disc Quantity:
-
12
-
Water Tank Capacity:
-
68L
-
Application:
-
concrete floor leveling grinding machine
-
Working Diameter:
-
500mm
-
Working Efficiency:
-
450sqm/8hr
-
Frequency Converter:
-
7.5Kw
-
Usage:
-
polishing machine for concrete

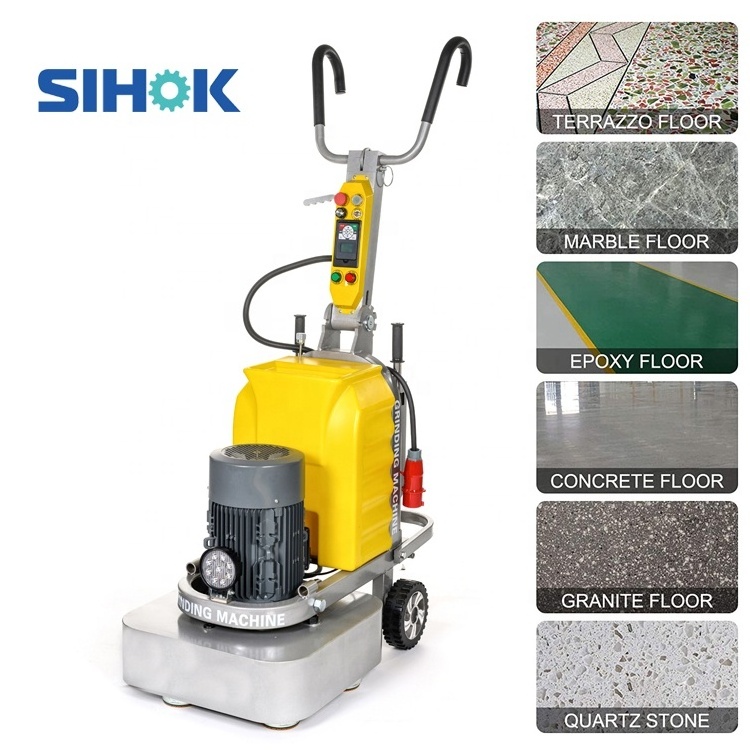

Marble terrazzo Concrete Floor Grinder Concrete Floor Grinding Machine Concrete Polishing Machine (SHCG-500)
NOTE: $710 is the Customization Deposit!!Not the exact product cost!
(The price is for reference only, we have many different models, please consult us for the actual price)
(The price is for reference only, we have many different models, please consult us for the actual price)
Product Description
Specification
Our terrazzo grinding machine is mainly used for big or scope ground in grinding processing ,which can be effectively polished concrete surface layer of epoxy mortar and the old epoxy floor etc .
Features
1.with grinding /vacuuming integration , Operation dust-free.
2.Adjust the height of equipment,and always ensure that mechanical work under level state .
3.High efficiency and energy saving dynamic system,compact and sophisticated manufacturing technology .
4.Free to replace the chassis ,consumables free configuration (diamond grinding wheel).
5.Only with a reversing switch ,toggle switch can be changed motor direction of rotation .
6.The other is equipped with vacuum motor, not dust in the construction process, the operation is simple, portable,which is the best choice of the epoxy construction.
Features
1.with grinding /vacuuming integration , Operation dust-free.
2.Adjust the height of equipment,and always ensure that mechanical work under level state .
3.High efficiency and energy saving dynamic system,compact and sophisticated manufacturing technology .
4.Free to replace the chassis ,consumables free configuration (diamond grinding wheel).
5.Only with a reversing switch ,toggle switch can be changed motor direction of rotation .
6.The other is equipped with vacuum motor, not dust in the construction process, the operation is simple, portable,which is the best choice of the epoxy construction.
|
Model
|
SHCG-500
|
SHCG-600
|
SHCG-640
|
SHCG-700
|
|
Voltage
|
220V/380V
|
220V/380V
|
220V/380V
|
380V
|
|
Frequency Converter
|
7.5Kw
|
7.5Kw
|
7.5Kw/11Kw
|
15Kw
|
|
Electric Power
|
7.5Kw
|
7.5Kw
|
7.5Kw
|
15Kw
|
|
Working Width
|
490mm
|
580mm
|
630mm
|
680mm
|
|
Rorate Speed
|
1000-1800rpm
|
1000-1800rpm
|
1000-1800rpm
|
1200-2400rpm
|
|
Disc Quantity
|
12
|
12
|
12
|
12
|
|
Water Tank Capacity
|
60L
|
60L
|
60L
|
80L
|
|
Weight
|
215Kg
|
235Kg
|
260Kg
|
340Kg
|
|
Model
|
SHCG-520S
|
SHCG-620S
|
SHCG-650S
|
SHCG-680S
|
SHCG-720S
|
|
Voltage
|
220V/380V
|
220V/380V
|
380V
|
380V
|
380V
|
|
Frequency Converter
|
7.5KW/5.5KW
|
7.5KW/11KW
|
15kw
|
15kw
|
15Kw
|
|
Electric Power
|
7.5KW/5.5KW
|
7.5KW
|
11KW
|
11KW
|
18Kw
|
|
Working Width
|
520mm
|
620mm
|
650mm
|
680mm
|
720mm
|
|
Rorate Speed
|
300-1800rpm
|
1000-1800rpm
|
1000-1800rpm
|
1400-1800rpm
|
1400-1800rpm
|
|
Disc Quantity
|
12
|
12
|
12
|
12
|
12
|
|
Water Tank Capacity
|
60L
|
60L
|
80L
|
80L
|
80L
|
|
Weight
|
210Kg
|
280Kg
|
340Kg
|
370Kg
|
395Kg
|
Packing & Delivery
Package:
1.Standard seaworthy packing suitable for long-distance transportation
2. Inner packing of carton and the transportation packing of wooden case
3.All of the productions are inspected carefully one by one by QC before delivery.Delivery Time:
1.Conventional products: 5-7working days after payment received.
2.Customized products: 10-30 days according to detail request.
Min. Order:
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.
Payment:
a various of payment terms are optional,guarantee 100% payment security.
1.Standard seaworthy packing suitable for long-distance transportation
2. Inner packing of carton and the transportation packing of wooden case
3.All of the productions are inspected carefully one by one by QC before delivery.Delivery Time:
1.Conventional products: 5-7working days after payment received.
2.Customized products: 10-30 days according to detail request.
Min. Order:
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.
Payment:
a various of payment terms are optional,guarantee 100% payment security.
About Us
Jining Sihok Machinery Co., Ltd. founded in 2003, is a professional construction machines manufacturer and exporter concerned with the design, development and production kinds of machines. Our products cover vibratory roller, excavator, light tower, concrete power trowel and so on. We are located in Jining city of Shandong Province. We have 300 employees and an annual sales figure exceed US 7-15 million. Our well educated and professional team which have international vision have built long-term cooperation with customers all over the world, like Australia, USA, Spain, Thailand, Indonesia, Colombia,etc.
