Step1
: set the parameters we need on HMI
Step2
: pour bulk products into the storage hopper manually or automatically
Step3
: multifunction weighing dosing machine will dose target weight we need
Step4
: put bags into bag magazine
Step5
: zipper device open the ziplock
Step6
: positioning bags to the filling station
Step7
: bag open and sending out “request filling” signal
Step8
: filling machine drop down products with target weight into open bags
Step9
: the sealing jaws seal bags automatically
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V/240V/380V/415V/440V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOP Y MACHINERY
-
Dimension(L*W*H):
-
1800x1490x1660mm
-
Doypack machine after-sales service:
-
Engineers available to service machinery overseas
-
Premade packing machine speed:
-
8-15bags/min
-
Vacuum Generator::
-
PIAB
-
Warranty::
-
24Months
-
Bag width::
-
70-280mm
-
Bag Length::
-
80-320mm
-
Bag type:
-
Stand-up bag, pillow bag
-
Material:
-
Stainless Steel 304
-
Sealing type:
-
Hot Sealing
-
Certification:
-
CE Certification
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Pouch, Stand-up Pouch, Keyword: spoon Powder Packing Machine
-
Packaging Material:
-
Paper, Plastic, Keyword: Powder gusset pouch Packing Machine
-
Voltage:
-
110V/220V/240V/380V/415V/440V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOP Y MACHINERY
-
Dimension(L*W*H):
-
1800x1490x1660mm
-
Doypack machine after-sales service:
-
Engineers available to service machinery overseas
-
Premade packing machine speed:
-
8-15bags/min
-
Vacuum Generator::
-
PIAB
-
Warranty::
-
24Months
-
Bag width::
-
70-280mm
-
Bag Length::
-
80-320mm
-
Bag type:
-
Stand-up bag, pillow bag
-
Material:
-
Stainless Steel 304
-
Sealing type:
-
Hot Sealing
-
Certification:
-
CE Certification
Product Paramenters
Function and characteristics:
1. Easy to operate
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. Adjustable bag width
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on
8. Bag materials: Suits in extensive range
4. Adjustable bag width
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on
8. Bag materials: Suits in extensive range
|
Specifications
|
|
|
|
|||
|
Model No.
|
TOPY-MDP1
|
TOPY-MDP2
|
TOPY-MDP3
|
|||
|
Bag Width
|
70-280mm
|
70-280mm
|
70-330mm
|
|||
|
Bag Length
|
80-320mm
|
80-440mm
|
80-440mm
|
|||
|
Bag Type
|
Stand-up bag, pillow bag, zipper bag, box pouch
|
|
|
|||
|
Power Supply
|
110V/220V/380V/415V, 50/60HZ
|
|
|
|||
|
Air Consumption
|
7.0 CFM@80 PSI 0.14m3/m3
|
|
|
|||
|
Pneumatic Parts
|
PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan
|
|
|
|||
Products Description

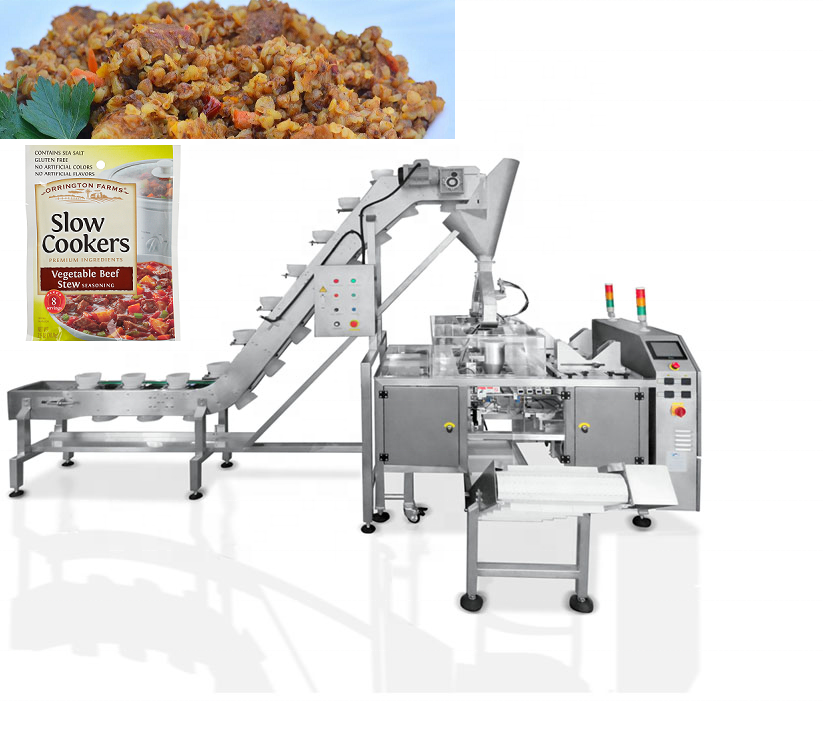

Mini doypack machine-the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on
Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc
Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc
Packing Solution
The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
A. Powder Packing Solution
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
