Quick Details
-
Model Number:
-
XQY10-96-H61
-
Product Name:
-

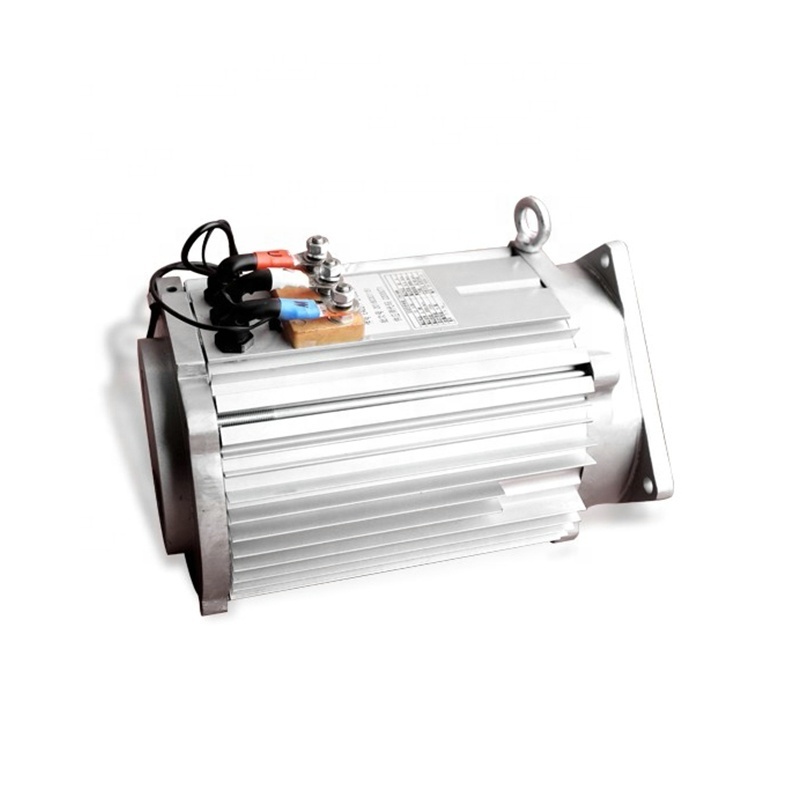

Ac Synchronous Motor
-
rated power:
-
10KW
-
Peak power:
-
20KW
-
Rated voltage:
-
96v
-
Rated torque (N.m):
-
31.8
-
Rated speed:
-
3000r/min
-
Peak speed:
-
6800r/min
-
Working system:
-
S2:60
-
Insulation class:
-
H
-
Protection level:
-
IP54
Quick Details
-
AC Voltage:
-
96V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Depuda
-
Model Number:
-
XQY10-96-H61
-
Product Name:
-
Ac Synchronous Motor
-
rated power:
-
10KW
-
Peak power:
-
20KW
-
Rated voltage:
-
96v
-
Rated torque (N.m):
-
31.8
-
Rated speed:
-
3000r/min
-
Peak speed:
-
6800r/min
-
Working system:
-
S2:60
-
Insulation class:
-
H
-
Protection level:
-
IP54
Products Description
|
rated power
|
10KW
|
|
Peak power
|
20KW
|
|
Rated voltage
|
96V
|
|
Rated torque (N.m)
|
31.8
|
|
Rated speed
|
3000r/min
|
|
Peak speed
|
6000r/min
|
|
Working system
|
S2:60
|
|
Insulation class
|
H
|
|
Protection level
|
IP54
|
|
Main scope of application
|
Low-speed electric passenger vehicles, logistics vehicles
SIGHTSEEING BUS MOTOR、GOLF CART MOTOR、ELECTRIC TRUCK MOTOR
|
1.
Smooth and reliable. Joined with transaxle of vehicles with involute spline shaft,provide reliable and safe guarantee for vehicle.
2. Climbing ability. High starting torque, greater speed range and higher top speed, higher overload capability, which will supply big power for electric car and meet the climbing needs.
3.Long driving range of a single charge. Higher motor efficiency,provide the effectiveness
4.Slipping-back preventing ability. When the golf car stop on the slope, the ac motor will avoid it slipping.
5.Adapt to different road conditions ability,Enables regenerative braking.
6. Durable in use,easy maintenance
