Quick Details
-
Brand Name:
-
hengwang
-
Name:
-
Concrete Block Splitter
-
Key word:
-
Hydraulic Rock Splitter
-
Pump pack type:
-
Diesel Engine Oil Pump
-
Working Medium:
-
68 Anti-wear Hydraulic Oil
-
Work pressure:
-
55-60Mpa
-
Drilling Diameter:
-
42/45/50mm
-
Split time:
-
5-15s
-
Crack width:
-
10-40mm
-
Drilling Depth (mm):
-
600mm
-
Capacity of tank:
-
40-90L
Quick Details
-
Weight (KG):
-
28
-
Application:
-
diesel rock splitting machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hengwang
-
Name:
-
Concrete Block Splitter
-
Key word:
-
Hydraulic Rock Splitter
-
Pump pack type:
-
Diesel Engine Oil Pump
-
Working Medium:
-
68 Anti-wear Hydraulic Oil
-
Work pressure:
-
55-60Mpa
-
Drilling Diameter:
-
42/45/50mm
-
Split time:
-
5-15s
-
Crack width:
-
10-40mm
-
Drilling Depth (mm):
-
600mm
-
Capacity of tank:
-
40-90L
Product Description

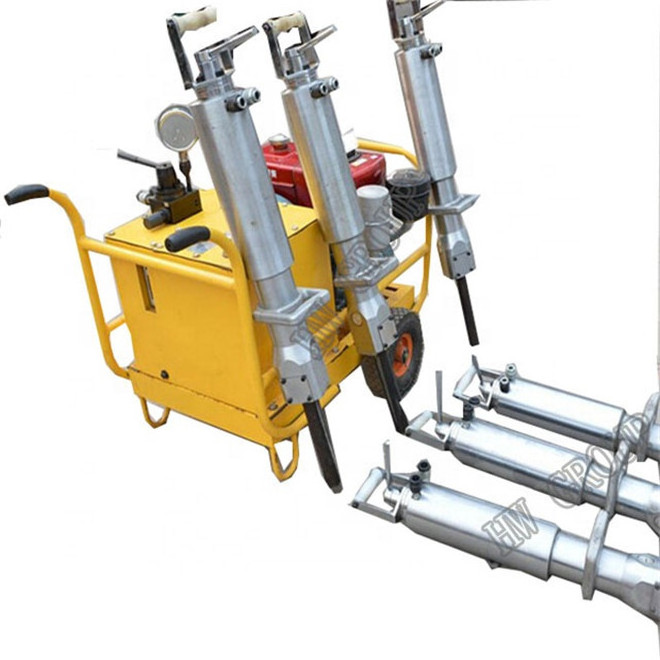

The hydraulic rock & concrete splitter is the most suitable tool for demolition. The hydraulic rock and concrete splitter is a kind of
hand-hold splitting and demolition tool
.It can controllable split rock or concrete.Especially suit for cabin area where large machine can not work.Such as
hydraulic breaker
and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden. Now it is widely used in mineral mining(cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
|
Splitting cylinders parameters
|
|
|
|
|
|
|
||||||
|
model
|
HW80-250
|
HW80-350
|
HW80-450
|
HW90-250
|
HW90-350
|
HW90-450
|
||||||
|
piston diameter
|
80mm
|
80mm
|
80mm
|
90mm
|
90mm
|
90mm
|
||||||
|
drilling diameter
|
Φ42mm
|
Φ45mm
|
Φ50mm
|
Φ42mm
|
Φ45mm
|
Φ50mm
|
||||||
|
drilling depth
|
≧500mm
|
≧550mm
|
≧600mm
|
≧500mm
|
≧550mm
|
≧600mm
|
||||||
|
wedge block length
|
250mm
|
350mm
|
450mm
|
250mm
|
350mm
|
450mm
|
||||||
|
crack width
|
10～40mm
|
10～40mm
|
10～40mm
|
10～40mm
|
10～40mm
|
10～40mm
|
||||||
|
splitting time
|
5～15s
|
5～15s
|
5～15s
|
5～15s
|
5～15s
|
5～15s
|
||||||
|
Theory of separatist force
|
600T
|
600T
|
600T
|
800T
|
800T
|
800T
|
||||||
|
The actul split force
|
480T
|
480T
|
480T
|
480T
|
480T
|
480T
|
||||||
|
weight
|
28Kg
|
29Kg
|
30Kg
|
31Kg
|
32Kg
|
33Kg
|
||||||
|
Pump pack parameters
|
|
|
|
|
|
|
||||||
|
Engine
|
Electric engine
|
|
|
Diesel engine
|
|
|
||||||
|
weight
|
60kg
|
110kg
|
150kg
|
100kg
|
130kg
|
150kg
|
||||||
|
capacity of tank
|
40L
|
60L
|
88L
|
45L
|
65L
|
90L
|
||||||
|
motor power
|
3.0KW
|
4.0KW
|
5.5KW
|
3Hp
|
5Hp
|
7.5Hp
|
||||||
|
working pressure(Mpa)
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
||||||
|
working flow(L/min)
|
2—13
|
2—13
|
2—13
|
2—13
|
2—13
|
2—13
|
||||||
|
configurable guns number
|
1—5
|
2—7
|
2—10
|
1—3
|
3—8
|
3—10
|
||||||
Main Features
1. Enormous splitting force up to 500 tons & vibration free
2. Dust free and near silent operation & Light weight and Easy handling
3. Different sizes of counter wedge and center wedge can use on the same splitter
2. Dust free and near silent operation & Light weight and Easy handling
3. Different sizes of counter wedge and center wedge can use on the same splitter
Product Analysis
Products Details
The hydraulic rock & concrete splitter is the most suitable tool for demolition. It has many advantages:
1) Powerful( Max:1000T ) , it can split the stone or concrete easily.
2) High Efficiency , it can split the stone in 5-10 seconds.;
3) Long-life , the wedges stands wear and tear;
4) Easy to operate and maintain;
5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
6) Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
1) Powerful( Max:1000T ) , it can split the stone or concrete easily.
2) High Efficiency , it can split the stone in 5-10 seconds.;
3) Long-life , the wedges stands wear and tear;
4) Easy to operate and maintain;
5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
6) Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
