Carrying capacity: 6 tons
Max coil width: 1250 mm
Feeding speed: 0-40 m/min (adjustable)
Driving motor power: 3 kw
Hydraulic motor power: 5.5 kw
Structure: welding by the steel plates and profiled bar.
The decoiler is equipped with the brake system
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
220V-3P-50HZ
-
Weight:
-
9000 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
New design 2023
-
Product name:
-
Azerbaijan glazed tile machine
-
Control system:
-
Delta
-
Thickness:
-
0.3-0.8 mm
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
80 mm
-
Roller stations:
-
17 roller stations
-
Color:
-
Custimized
-
Material of rollers:
-
Gcr12 Steel
-
Control box language:
-
Add Customer Request Language
-
Decoiler:
-
Manual or hydraulic decoiler
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
20 m/min
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
220V-3P-50HZ
-
Weight:
-
9000 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
New design 2023
-
Product name:
-
Azerbaijan glazed tile machine
-
Control system:
-
Delta
-
Thickness:
-
0.3-0.8 mm
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
80 mm
-
Roller stations:
-
17 roller stations
-
Color:
-
Custimized
-
Material of rollers:
-
Gcr12 Steel
-
Control box language:
-
Add Customer Request Language
-
Decoiler:
-
Manual or hydraulic decoiler

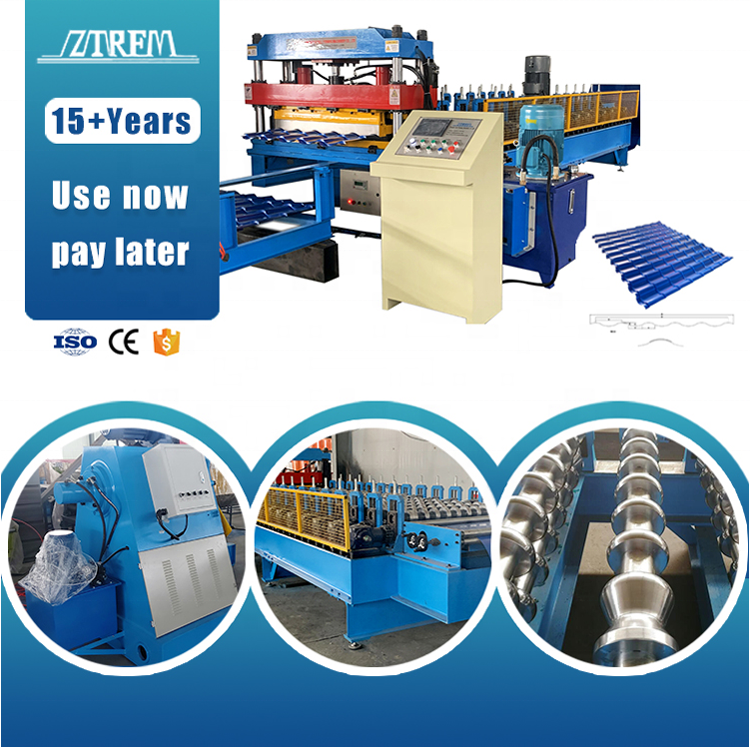

Automatic 3D Mold Azerbaijan Popular Design Glazed Tile Flower Cutting Steel Sheet Roof Roll Forming Machine
High speed: 0-8 m/min with stable roll forming, pressing and cutting.
Special Design Cutting Device：
As Azerbaijan customer’s requirement different with others,for the cutting device we made special flower cutting design and obtain a patent. With this kind of design, the glazed tile will have more stereoscopic effect.
Stable Transmission
:
Gear box drive.
Profile drawing and finished product effect for reference:
this type glazed tile roof sheet very hot sale in Azerbaijan, normally material feeding width1250 mm,and Product effective width 1000 mm.As we sold many glazed tile machines to Azerbaijan,we have rich experience on it to confirm the finished product good and suit for market.
Processing Flow
Decoiler-Feeding Material-Roll Forming-Cutting-Receiving The Product
|
Metal Glazed Roof Tile Roll Forming Machine Hot Sale To Azerbaijan
|
|
|
|
Raw Material
|
PPGI
|
|
|
Raw material
|
Material Thickness: 0.32-0.8 Mm
|
|
|
Machine Frame
|
350# H Steel Frame Welded
|
|
|
Machine Structure
|
Vertical Arch Frame Structure
|
|
|
Material Of Rollers
|
45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
|
|
|
Forming stations
|
16 stations
|
|
|
Diameter of shafts
|
Φ80mm
|
|
|
Material of shafts
|
45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness
|
|
|
Forming speed
|
About 0-8m/min
|
|
|
Voltage
|
380v 50hz 3phase Or As Request
|
|
|
Transmission
|
Gear Box Transmission(Bevel Gear Inside)
|
|
|
|
Material Of Gear: 20 Crmnti
|
|
|
|
Material Of Gear Box: Iron Casting
|
|
|
|
The connection between gear boxes are chains
|
|
|
|
Gear box will connect with the rolling station one for one
|
|
|
|
Advantage: can improve the speed directly after cutting
|
|
|
Work power
|
11 kw ( gear reducer and servo motor driving)
|
|
|
Cutting blade material
|
Cr12Mov quenched treatment to improve hardness
|
|
|
Cutting type
|
Hydraulic cutting
|
|
6 Tons Hydraulic Decoiler
Feeding Device
1. Rubber rollers protect raw material surface
2. With handwheels easy adjust for feeding different thickness raw material.
3.the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet.
Roll Forming Device
1.
45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
Transmission Device
Hydraulic Cutting Device
1.Adopt double oil cylinder more stable than single oil cylinder
2.Hydraulic motor power 5.5 kw with energy accumulator
3.Cutter material ：GB-Cr12 with heat treatment
4.Cutting length tolerance ±10m/2mm
5.Cutting feature ：Steady and safe working condition and low sounds
PLC control system
PLC brand : Delta
Inverter brand: Delta Low electric part: Schneider
Encoder: Omron
Function:
1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized)
4.National coinsurance,spar parts Brand Siemens and Schneider.
Hydraulic station
4.5kw motor with cooling system for long time using.
Automatic Stacker
Stacking principle: the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet
Max. Length of the sheet: 3000 mm
Max. Width of the sheet: 1250 mm
The thickness of stack: 300 mm
Carry arms control: pneumatic (the air pump is provided by the user)
Push system: cylinder driving and controlled by control station, function: to align the sheets
CE(No.OP180719.CZIDC95)
Patent(No:ZL202021888022.3)
