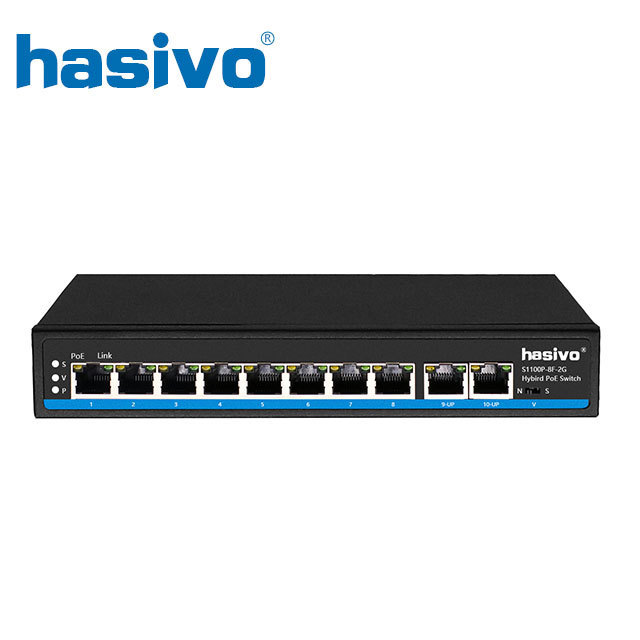

8 Port PoE 10/100M Switch with 2 Gigabit RJ45 Uplink IEEE 802.3af/at Active PoE for Wireless AP 120W PoE Output Unmanaged Switch

Automatically detecting and supplying power for powered devices conformed to IEEE 802.3af/at PoE++/HiPoE, hasivo unmanaged PoE switch(Ai-version) has new functions of HiPoE and PoEdog that can efficiently solve the power-supply problems of high-power devices like high-power dome cameras and wireless access point AP and achieve auto restore when the machine breaks down. Similarly, it can solve the problems that restart the machine annually on the spot and installation requirements on multiple switches.

Fast Ethernet Access+Gigabit Uplink * 8*10/100M PoE port+2*1000M Uplink port * All ports support non-blocking transmission at wirespeed * Support IEEE 802.3x and Backpressure PoE Function * 8*10/100M PoE port(satisfied in environment in security monitoring, phone meeting system and wireless coverage.) * Have PoEdog function that when PoE is on, the switch can achieve real-time detection on powered devices. And the switch automatically sets the ports and then restores PoE power supplying to make no duty come true. * Complied to IEEE 802.3af/at/PoE++/HiPoE,whole device PoE output power up to 120W(first port can output HiPoE_60W and other single port PoE power up to 30W). * Automatically detect and supply power for PoE devices. * Priority mechanism(prior protection on port power supply). Operating Modes * N---Standard Normal(all ports communicate freely and adapts to common transmission environment) * V---Port isolation(8 fast ethernet ports isolate from each other and suitable for using environment connected to wireless AP to suppress network storm and promote network performance.

Cargo will be delivered within 72hrs after payment arrived. Tracking Number will be offered once delivery done.Below Delivery Options for reference

.

Located at Sichuan Meishan of China, Sichuan hasivo has been throughoutly devoted to product researching, manufacturing and selling in the PoE field since established in 2013. Our products cover a range of PoE Switch, UPS Switch,PoE Injector, PoE Separator, Ethernet Switch, Optical Fiber Communication products, PSE Chip, Solar energy control chip, Wind energy control chip and IOT platform, which are exported to up to 30 countries and areas such as Russia,America,Korea,Germany,France, India Thailand and so on. They all have received much popularity and praise from our clients at home and abroad. Hasivo all series of PoE network switches adapt intelligent PSE chips independently researched and developed by ourselves, supporting international PoE Protocol"IEEE802.3af/at/PoE++/BT", covering single and full power of single port at 0-100W with PoE. Having the characteristics of proprietary protocol HS-Auto and active detection function, hasivo intelligent PSE chip perfectly achieves power supply of 24V or 48V in one single port and saves device resources to a great extent. Especially, Our intelligent PSE chip has applied for a national invention patent. We Always adhere to autonomous research and development, integrating global resources with high quality and cooperating with network correspondent chip manufacturers around the world with our full efforts and we hasivo has been in a leading position in the field in innovation of products, research and development of technology and control capacity on products performance. Currently, hasivo has over 100 employees, 10 reseachers, 15 product managers,10 sale stuffs included. By 2018, we have produced and sold about 400,000 switches, 3 million intelligent PSE chips and about 10,000 high-end solar clean energy switches.

1. What is PoE? PoE (Power Over Ethernet) refers to the existing Ethernet Cat.5 cabling infrastructure without any changes, for some IP-based terminals (such as IP phones, wireless LAN access points AP, network cameras Etc.) While transmitting data signals, it can also provide DC powered technology for such devices. 2. Are you manufacturer? Yes, we are manufacturer. WE can provide OEM/ODM customized service according to our customers’ various application and demands. 3. What warranty for the products? We will provide 12 months warranty time, As for the mass order, we will provide certain proportion spare parts. 4. Can we get the free samples? Generally we would not provide the free samples, but if the customer confirm the specification and price, they can pay the samples firstly for testing, when they place the mass order, we can return the sample cost to customers. 5. What is the delivery time? Generally, sample can be shipped in 1 to 3 working days after the payment. For mass order, the leading time will be 1-4 weeks depend on exact quantity.
