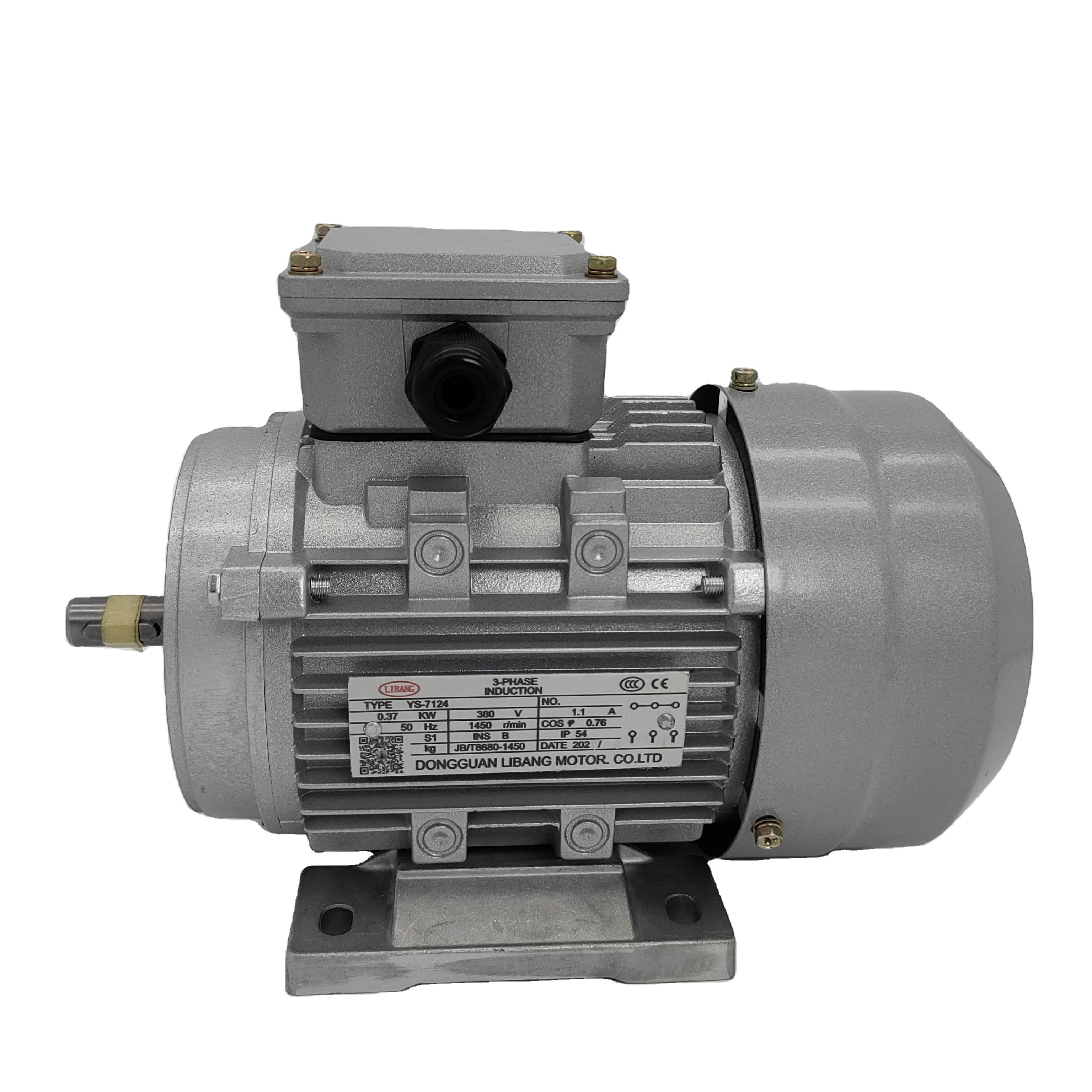

YE3 series aluminum shell three-phase asynchronous motors are widely used in compressors, fans, pumps, machine tools, crushers, reducers, transport machinery and other general mechanical equipment, and can also be used as prime movers in petroleum, chemical, steel, marine, mining and other places with harsh environmental conditions.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YE3 2 Poles-8 Poles AC Motor
-
Frequency:
-
50Hz/60Hz
-
Product Type:
-
three phase ac motor
-
Conductor Material:
-
100% copper core
-
Housing:
-
Aluminum shell
-
Insulation class:
-
Class B, Class F
-
Protection class:
-
IP44, IP54, IP55
-
Dimension:
-
25.0 cm * 13.0 cm * 18.0 cm
-
Ambitent temperature:
-
-15℃ ≤ 0 ≤ 40℃
-
Rated RPM:
-
2825RPM
-
Net Weight:
-
9500G
-
Certification:
-
ISO9001, CCC, CE, ATEX
Quick Details
-
AC Voltage:
-
110V/220V-480V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Moken-tech/Li bang
-
Model Number:
-
YE3 2 Poles-8 Poles AC Motor
-
Frequency:
-
50Hz/60Hz
-
Product Type:
-
three phase ac motor
-
Conductor Material:
-
100% copper core
-
Housing:
-
Aluminum shell
-
Insulation class:
-
Class B, Class F
-
Protection class:
-
IP44, IP54, IP55
-
Dimension:
-
25.0 cm * 13.0 cm * 18.0 cm
-
Ambitent temperature:
-
-15℃ ≤ 0 ≤ 40℃
-
Rated RPM:
-
2825RPM
-
Net Weight:
-
9500G
-
Certification:
-
ISO9001, CCC, CE, ATEX
Product Description
Proeuct Name
YE3 series 380v low rpm 1.5kw 2hp three phase induction asynchronous ac electric motor
YE3 series aluminum shell single/three-phase asynchronous motor is designed by our company on the basis of IEO standard combined with domestic YE2, Y3 series motor and European motor standards. YE3 series motor is designed by fully absorbing the advanced level of international motor industry. The motor adopts protection grade IP55, F insulation, and has good energy-saving effect. The efficiency grade reaches IE2 and China Energy Efficiency 3. It is an ideal energy-saving product with the characteristics of large starting torque, low noise, reasonable structure, unique and beautiful appearance, and convenient use.
The installation dimensions of YE3 series aluminum shell three-phase asynchronous motors conform to IEC60034 standard and DIN42673 standard, which are completely equivalent to the installation dimensions of domestic Y2 and Y3 motors.
Conditions of use
Ambient air temperature: -15 ℃ < 0 < 40 ℃
Altitude: not more than 1000 meters
Frequency: 50HZ 60HZ
Connection method: 3KW and below is Y connection method, 4KW and above is connection method
Working method: continuous (S1)
Insulation class: F, winding stator temperature rise assessment: 80K
Protection grade: enclosure IP 54, IP55, junction box IP55
Cooling method:IC 411
Certifications
Specification
|
Proeuct Name
|
YE3 series 380v low rpm 1.5kw 2hp three phase induction asynchronous ac electric motor
|
|
Place of Origin
|
China
|
|
Place of Origin
|
Guangdong
|
|
Brand Name
|
Moken-tech/Li bang
|
|
Model Number
|
YE3-2 Poles-8 Poles AC Motor
|
|
Type
|
Asynchronous Motor
|
|
Frequency
|
50Hz/60Hz
|
|
Certification
|
CCC
|
|
Protect Feature
|
Explosion-proof,General, Totally Enclosed
|
|
AC Voltage
|
110V-480V
|
|
Efficiency
|
IE 1/IE 2/IE 3
|
|
Rated Voltage
|
220V/380V
|
|
Rated RPM
|
2820rpm
|
|
Net Weight
|
9500G
|
|
Dimension
|
25.0 cm * 13.0 cm * 18.0 cm
|
|
MOQ
|
1
|
