Stationary concrete batching plant is more suitable for those projects that need to long construction period and don’t need to move machine frequently. Therefore, if you have a project that require the production of a lots of concrete at the construction site, our stationary concrete batching plant is a good choice for you. It can help you produce a large amount of concrete in a very short time. Moreover, because the concrete that it produces has features of high quality, stationary concrete batching plant is mostly used to produce commercial concrete. In general, stationary concrete batching plant is used to mix all kinds of ingredients that make up concrete. It usually can be used for the construction of roads, airports, high buildings, bridges, railway, highway and so on.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
18.5kW-55kW
-
Dimension(L*W*H):
-
50
-
Weight:
-
20 kg
-
Product name:
-
Concrete Mixing Plant
-
Keyword:
-
Concerete Batching Plant
-
Model:
-
HZS25/35/50/60
-
Capacity:
-
25-120m3/h
-
Application:
-
ready mix concrete
-
Mixer:
-
JS500-2000 Twin-shaft Concrete Mixer
-
Discharging Height:
-
3.8m
-
Control system:
-
Full-automatic
-
Mixer type:
-
Compulsary Twin Shaft Mixer
-
Cement silo:
-
50t/100t/150t.customized
Quick Details
-
Machine Type:
-
Production line
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Contrust
-
Power:
-
18.5kW-55kW
-
Dimension(L*W*H):
-
50
-
Weight:
-
20 kg
-
Product name:
-
Concrete Mixing Plant
-
Keyword:
-
Concerete Batching Plant
-
Model:
-
HZS25/35/50/60
-
Capacity:
-
25-120m3/h
-
Application:
-
ready mix concrete
-
Mixer:
-
JS500-2000 Twin-shaft Concrete Mixer
-
Discharging Height:
-
3.8m
-
Control system:
-
Full-automatic
-
Mixer type:
-
Compulsary Twin Shaft Mixer
-
Cement silo:
-
50t/100t/150t.customized
Products Description

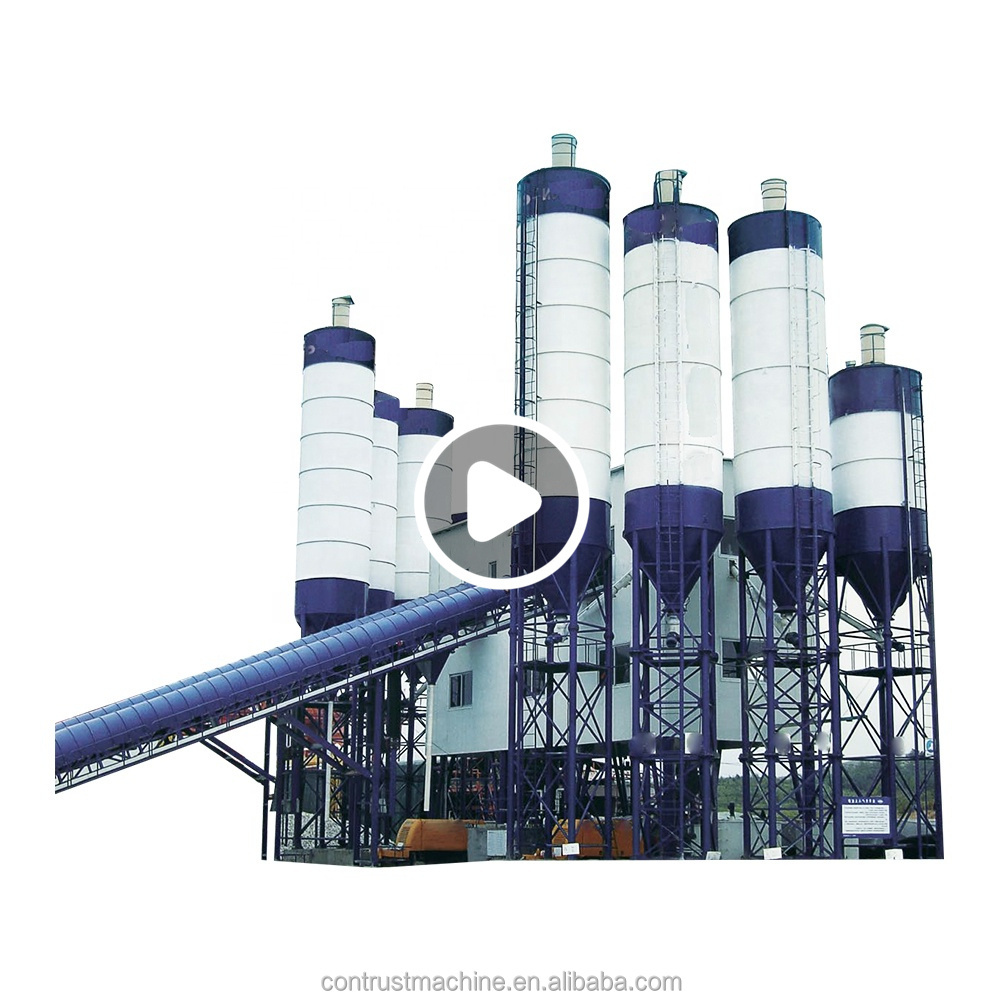

Concrete Batching Plant
Details Images
Concrete batching plant is an equipment that combines various ingredients to concrete. Some of these inputs include water, admixtures, sand, aggregate (rocks, gravel, etc.), fly ash, silica fume, slag, and cement. A concrete plant can have a variety of parts and accessories, including mixers, aggregate batching machine, conveyor, aggregate bins, cement silo, heaters, chillers, batch plant controls, and dust collectors.
JS double shaft mixer
It can be used in various factories,
highway, bridge, water conservancy wharf and other industry and civil construction projects. It can mix dry and hard concrete, plastic concrete flowing concrete ,cartilage aggregate, and various kinds of mortar, is a kind of high efficiency machine.
highway, bridge, water conservancy wharf and other industry and civil construction projects. It can mix dry and hard concrete, plastic concrete flowing concrete ,cartilage aggregate, and various kinds of mortar, is a kind of high efficiency machine.
PLD batching machine
PLC control system
Cement Silo
Screw Conveyor
Using high-quality steel, steel is good overall, double pitch blades, reduce the degree of compression in the material
transport. Made of high quality reducer, big torque, low noise characteristics
transport. Made of high quality reducer, big torque, low noise characteristics
The universal joint connection, the
installation is more convenient;
installation is more convenient;
Blade forming in one piece , no block materials.
|
Model
|
HZS25
|
HZS50
|
HZS60
|
HZS75
|
HZS90
|
|
Capacity
|
25m³/h
|
50m³/h
|
60m³/h
|
75m³/h
|
90m³/h
|
|
Mixer
|
JS500
|
JS1000
|
JS1000
|
JS1500
|
JS1500
|
|
Mixing motor power
|
18.5kw
|
2*18.5kw
|
2*18.5kw
|
2*30kw
|
2*30kw
|
|
Max. Aggregate size
|
60-80mm
|
60-80mm
|
60-80mm
|
60-80mm
|
60-80mm
|
|
PLD batcher
|
PLD800
|
PLD1600
|
PLD1600
|
PLD2400
|
PLD2400
|
|
Feeding method
|
Lifting hopper
|
Lifting hopper
|
Belt conveyor
|
Lifting hopper
|
Belt conveyor
|
